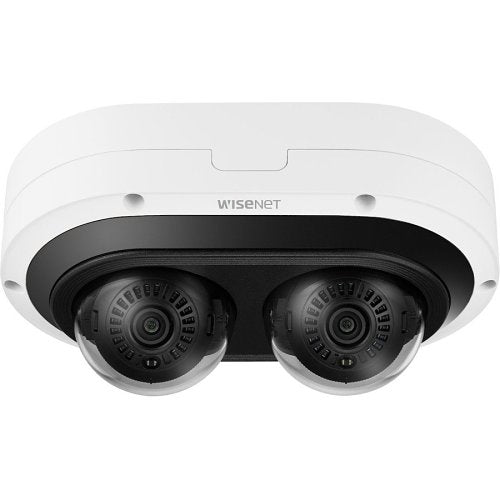

Hanwha Vision PNM-C7083RVD panoramic camera, 2MP
Free Delivery
£
934
95
(Incl. VAT)
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Hanwha Vision PNM-C7083RVD is a panoramic camera from the P range.
The PNM-C7083RVD from Samsung is a 2 megapixel x 2 AI IR outdoor dome camera with 3-6mm lens.
Key features
- For remote surveillance needs, this network camera is best suited
- Up to 25m of night vision
- CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
£
934
95
Price
Technical Details
Specifications
Brand Name
Hanwha Vision
Manufacturer Part Number
PNM-C7083RVD
Product Series
P
Product Type
Panoramic Cameras
Technical information
Connectivity Technology
Wired
Effective resolution
2MP
Field of View
Diagonal, Horizontal, Vertical
Field of View (Horizontal)
107.0°
Field of View (Vertical)
57.00°
Lens Type
Varifocal
Maximum Aperture
f/2.2
Maximum Frame Rate
30fps
Minimum Focal Length
3.00mm
Night Vision
Yes
Night Vision Type
Active Illumination, Near-Infrared (NIR)
Optical Zoom
2.0x
Video Formats
H.264 / AVC, H.265 / HEVC, MJPEG
Video Resolution
1280 x 720
Wide Dynamic Range
Yes
Camera
Image Sensor Type
CMOS
Night Vision Distance
25.00m
Certifications
Ingress protection
IP66
Display & graphics
Maximum video resolution
1920 x 1080
Number of Sensors
2
Environmental conditions
Maximum Operating Temperature
55°C
Minimum Operating Temperature
-40°C
Operating Humidity
95%
Exposure
Longest Shutter Speed
1/5 Second
Minimum Illumination
0.0000lux
Shortest Shutter Speed
1/12000 Second
Interfaces/ports
Network (RJ-45)
Yes
Lens
Focal Length
3-6mm
Lens Included
Yes
Maximum Focal Length
6.00mm
Minimum Aperture
f/3.1
Network & communication
Remote Management
Yes
Physical characteristics
Colour
White
Depth
135.00mm
Durability
Vandal Resistant
Form Factor
Dome
Height
93.20mm
Weight
1.33kg
Width
215.00mm
Product information
Mount Type
Conduit Box Mount, Corner Mount, Gang Box Mount, Parapet Mount, Pendant Mount, Pole Mount, Wall Mount
Storage
Recording Formats
H.264, H.265 / HEVC
Storage Type
SD Card
Video
Maximum Resolution
1280 x 720
Miscellaneous
Features
Back Light Compensation (BLC), Day/Night, Digital Noise Reduction, Gain Control, Motion Detection, Privacy Masking, PTZ, SD Card Local Storage, White Balance, Wide Dynamic Range
Impact protection
IK10
Indoor or outdoor use
Outdoor
Attributes
Weight
1.33kg
Specifications
| Brand Name | Hanwha Vision |
|---|---|
| Manufacturer Part Number | PNM-C7083RVD |
| Product Series | P |
| Product Type | Panoramic Cameras |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Effective resolution | 2MP |
| Field of View | Diagonal, Horizontal, Vertical |
| Field of View (Horizontal) | 107.0° |
| Field of View (Vertical) | 57.00° |
| Lens Type | Varifocal |
| Maximum Aperture | f/2.2 |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 3.00mm |
| Night Vision | Yes |
| Night Vision Type | Active Illumination, Near-Infrared (NIR) |
| Optical Zoom | 2.0x |
| Video Formats | H.264 / AVC, H.265 / HEVC, MJPEG |
| Video Resolution | 1280 x 720 |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|---|
| Night Vision Distance | 25.00m |
Certifications
| Ingress protection | IP66 |
|---|
Display & graphics
| Maximum video resolution | 1920 x 1080 |
|---|---|
| Number of Sensors | 2 |
Environmental conditions
| Maximum Operating Temperature | 55°C |
|---|---|
| Minimum Operating Temperature | -40°C |
| Operating Humidity | 95% |
Exposure
| Longest Shutter Speed | 1/5 Second |
|---|---|
| Minimum Illumination | 0.0000lux |
| Shortest Shutter Speed | 1/12000 Second |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 3-6mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 6.00mm |
| Minimum Aperture | f/3.1 |
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Colour | White |
|---|---|
| Depth | 135.00mm |
| Durability | Vandal Resistant |
| Form Factor | Dome |
| Height | 93.20mm |
| Weight | 1.33kg |
| Width | 215.00mm |
Product information
| Mount Type | Conduit Box Mount, Corner Mount, Gang Box Mount, Parapet Mount, Pendant Mount, Pole Mount, Wall Mount |
|---|
Storage
| Recording Formats | H.264, H.265 / HEVC |
|---|---|
| Storage Type | SD Card |
Video
| Maximum Resolution | 1280 x 720 |
|---|
Miscellaneous
| Features | Back Light Compensation (BLC), Day/Night, Digital Noise Reduction, Gain Control, Motion Detection, Privacy Masking, PTZ, SD Card Local Storage, White Balance, Wide Dynamic Range |
|---|---|
| Impact protection | IK10 |
| Indoor or outdoor use | Outdoor |
Attributes
| Weight | 1.33kg |
|---|
