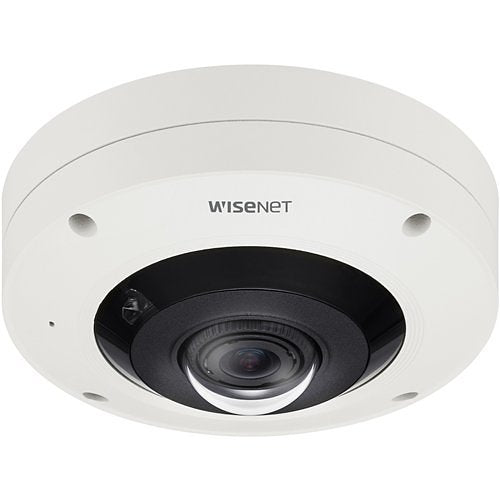

Hanwha Vision XNF-9010RVM panoramic camera, 12MP
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Hanwha Vision XNF-9010RVM is a panoramic camera from the X range.
revolutionary WiseNet7 chip, 30 fps at full resolution, light sensitivity in color 0.39 lux and B/W 0 lux (IR on), Wise IR, 1.08 mm (187°) lens with single focus, BLC/HLC, Extreme WDR 120 dB, 8-zone motion detection and 32-zone privacy masking, video and BI analysis: defocus detection, directional motion detection, disappear/appear in zone, loitering, camera tilt, line crossing, audio detection with sound classification, people counting, queue management and thermal mapping, two-way audio support, 2 slots for optional SD(XC) cards up to 2 x 512 GB (1 TB max.), with its M12 connector, the camera is designed to resist vibration, EN50155 certification, robust solution for monitoring activity on buses, trains, trucks and other forms of transport, power supply: PoE max.12.95 watts, 12 VDC max.11 watts
Key features
- Stereo graphic type lens, enhanced resolution for the peripheral regions
Specifications
Technical information
Camera
Certifications
Environmental conditions
Exposure
Interfaces/ports
Lens
Network & communication
Physical characteristics
Power description
Product information
Storage
Video
Miscellaneous
Attributes
Specifications
| Brand Name | Hanwha Vision |
|---|---|
| Manufacturer Part Number | XNF-9010RVM |
| Product Series | X |
| Product Type | Panoramic Cameras |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Effective resolution | 12MP |
| Field of View | Diagonal, Horizontal, Vertical |
| Field of View (Horizontal) | 187.0° |
| Field of View (Vertical) | 187.00° |
| Lens Type | Fixed |
| Maximum Aperture | f/2.2 |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 1.08mm |
| Night Vision | Yes |
| Night Vision Type | Infrared (IR) |
| Video Formats | H.264 / AVC, H.265 / HEVC, MJPEG |
| Video Resolution | 1280 x 720 |
| Video Signal Format | NTSC, PAL |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|---|
| Night Vision Distance | 10.00m |
Certifications
| Ingress protection | IP66 |
|---|
Environmental conditions
| Maximum Operating Temperature | 60°C |
|---|---|
| Minimum Operating Temperature | -40°C |
| Operating Humidity | 95% |
Exposure
| Longest Shutter Speed | 1/5 Second |
|---|---|
| Minimum Illumination | 0.0000lux |
| Shortest Shutter Speed | 1/12000 Second |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 1.08mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 1.08mm |
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Colour | White |
|---|---|
| Durability | Dustproof, Impact Resistant, Waterproof |
| Form Factor | Fisheye |
| Height | 72.00mm |
| Weight | 1.10kg |
Power description
| Input Voltage | 12V DC |
|---|
Product information
| Diameter | 160.00mm |
|---|---|
| Mount Type | Wall Mount |
Storage
| Recording Formats | H.264, H.265 / HEVC |
|---|---|
| Storage Type | SD Card |
Video
| Analog Video Signal Format | CVBS (Composite Video Baseband Signal) |
|---|---|
| Maximum Resolution | 1280 x 720 |
Miscellaneous
| Features | Alarm Triggering, Audio Compression, Back Light Compensation (BLC), Built-in Card Reader, Built-in HLC, Built-in Microphone, Day/Night, Digital Noise Reduction, Motion Detection, Privacy Masking |
|---|---|
| Impact protection | IK10 |
| Indoor or outdoor use | Outdoor |
Attributes
| Input Voltage | 12V DC |
|---|---|
| Weight | 1.10kg |
