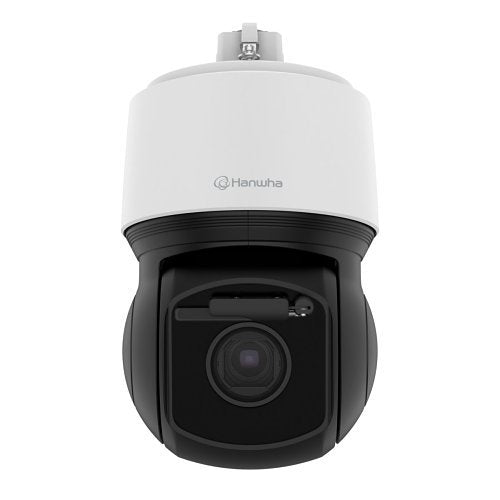

Hanwha Vision XNP-C8303RW PTZ camera, 6MP

Free Delivery
£ 3,044 28
(Incl. VAT)

About this product

Please note: this is a non-returnable item (excluding faulty goods)

Hanwha Vision XNP-C8303RW is a PTZ camera from the X range.

6MP 30x AI PTZ Camera with built-in wiper.

Key features

  • Max. 6MP resolution
  • 5-150mm(30x) zoom (digital 32x, total 960x zoom)
  • Day and Night (ICR), extreme WDR, DIS (Built-in gyro sensor)
  • Intelligent Analytics, Object auto tracking (Person/Vehicle), Target lock tracking
  • H.264, H.265, MJPEG codec, WiseStream II
  • IP66, IK10, NEMA4X, NEMA-TS 2 (2.2.8, 2.2.9)
  • PTZ PLUS Design applied (Compact, Lighter, Simple cabling)
  • Built-in wiper

If you are matching this to an existing installation, work from the XNP-C8303RW part number rather than the description.

£ 3,044 28
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£3,044.28 Incl. VAT
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Technical Details
Specifications
Brand Name
Hanwha Vision
Manufacturer Part Number
XNP-C8303RW
Product Series
X
Product Type
PTZ Security Cameras
Technical information
Connectivity Technology
Wired
Effective resolution
6MP
Field of View
Horizontal, Vertical
Field of View (Horizontal)
57.4°
Field of View (Vertical)
33.54°
Lens Type
Zoom
Maximum Aperture
f/1.6
Maximum Frame Rate
30fps
Minimum Focal Length
5.00mm
Night Vision
Yes
Night Vision Type
Infrared (IR)
Optical Zoom
30.0x
Video Formats
H.264 / AVC, H.265 / HEVC, MJPEG
Video Resolution
1280 x 720
Wide Dynamic Range
Yes
Camera
Image Sensor Type
CMOS
Night Vision Distance
200.00m
Certifications
Ingress protection
IP66
Environmental conditions
Maximum Operating Temperature
55°C
Minimum Operating Temperature
-40°C
Operating Humidity
95%
Exposure
Longest Shutter Speed
2 Second
Minimum Illumination
0.0000lux
Shortest Shutter Speed
1/12000 Second
Interfaces/ports
Network (RJ-45)
Yes
Lens
Focal Length
5-150mm
Lens Included
Yes
Maximum Focal Length
150.00mm
Minimum Aperture
f/4.5
Network & communication
Remote Management
Yes
Physical characteristics
Colour
White
Durability
Dustproof, Impact Resistant, Waterproof
Form Factor
PTZ
Height
318.80mm
Weight
5.60kg
Product information
Diameter
184.90mm
Mount Type
Ceiling Mount, Corner Mount, Pendant Mount, Pole Mount, Wall Mount
Storage
Recording Formats
H.264
Storage Type
SD Card
Video
Maximum Resolution
1280 x 720
Miscellaneous
Features
Back Light Compensation (BLC), Day/Night, Defog, Digital Noise Reduction, Gain Control, Highlight Compensation (HLC), Motion Detection, Privacy Masking, White Balance, Wide Dynamic Range, Wiper
Impact protection
IK10
Indoor or outdoor use
Outdoor
Attributes
Weight
5.60kg

Specifications

Brand Name Hanwha Vision
Manufacturer Part Number XNP-C8303RW
Product Series X
Product Type PTZ Security Cameras

Technical information

Connectivity Technology Wired
Effective resolution 6MP
Field of View Horizontal, Vertical
Field of View (Horizontal) 57.4°
Field of View (Vertical) 33.54°
Lens Type Zoom
Maximum Aperture f/1.6
Maximum Frame Rate 30fps
Minimum Focal Length 5.00mm
Night Vision Yes
Night Vision Type Infrared (IR)
Optical Zoom 30.0x
Video Formats H.264 / AVC, H.265 / HEVC, MJPEG
Video Resolution 1280 x 720
Wide Dynamic Range Yes

Camera

Image Sensor Type CMOS
Night Vision Distance 200.00m

Certifications

Ingress protection IP66

Environmental conditions

Maximum Operating Temperature 55°C
Minimum Operating Temperature -40°C
Operating Humidity 95%

Exposure

Longest Shutter Speed 2 Second
Minimum Illumination 0.0000lux
Shortest Shutter Speed 1/12000 Second

Interfaces/ports

Network (RJ-45) Yes

Lens

Focal Length 5-150mm
Lens Included Yes
Maximum Focal Length 150.00mm
Minimum Aperture f/4.5

Network & communication

Remote Management Yes

Physical characteristics

Colour White
Durability Dustproof, Impact Resistant, Waterproof
Form Factor PTZ
Height 318.80mm
Weight 5.60kg

Product information

Diameter 184.90mm
Mount Type Ceiling Mount, Corner Mount, Pendant Mount, Pole Mount, Wall Mount

Storage

Recording Formats H.264
Storage Type SD Card

Video

Maximum Resolution 1280 x 720

Miscellaneous

Features Back Light Compensation (BLC), Day/Night, Defog, Digital Noise Reduction, Gain Control, Highlight Compensation (HLC), Motion Detection, Privacy Masking, White Balance, Wide Dynamic Range, Wiper
Impact protection IK10
Indoor or outdoor use Outdoor

Attributes

Weight 5.60kg

Hanwha Vision XNP-C8303RW PTZ camera

Hanwha Vision XNP-C8303RW PTZ camera, 6MP

Who this is for

For the installer — this is the PTZ camera supplied under Hanwha Vision part number XNP-C8303RW. Specify it by that part number.

The entries in the specification table are the ones held against this part number. Anything not listed there is not stated by us, and should be confirmed against the manufacturer's own documentation.

In plain English: this is a PTZ camera made by Hanwha Vision. The part number XNP-C8303RW is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this PTZ camera is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is non-returnable, excluding faulty goods. That restriction comes from the manufacturer's own terms for this line.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact PTZ camera I have been quoted? Check the manufacturer part number XNP-C8303RW against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — a document attached to this listing was checked and names this exact part number.

Can you check compatibility for us? Ask before you order and we will check it against the manufacturer's own documentation. We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against XNP-C8303RW answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.
