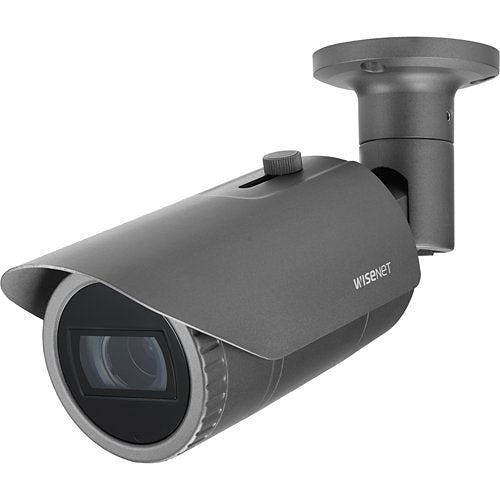

Hanwha Vision HCO-6080 surveillance camera, 2MP
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Hanwha Vision HCO-6080 is a surveillance camera from the HD+ range.
Incorporating AHD technology that can deliver superb quality HD images over existing coax cabling, HD+ cameras and DVRs are designed to appeal to end-users who want to capture and record Full HD 1080p images, but are not yet ready to migrate from analogue to an IP network based video surveillance solution.
Key features
- Full HD resolution
- 0.11 Luxat F1.6 (Color), 0.01 Luxat F1.6 (B/W)
- 3.2 ~ 10mm (3.1x) motorized V/F lens
- Day & Night (ICR), WDR (120dB)
- SSNRⅣ, Motion detection
- IP66, IK10
- Transmission distance max.500m
- Easy Installation (Plug & play), Dual power
-
Download
- HCO-6080 — Product Manual
Specifications
Technical information
Camera
Certifications
Environmental conditions
Exposure
Lens
Physical characteristics
Power description
Product information
Video
Miscellaneous
Attributes
Specifications
| Brand Name | Hanwha Vision |
|---|---|
| Manufacturer Part Number | HCO-6080 |
| Product Series | HD+ |
| Product Type | Surveillance camera |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Effective resolution | 2MP |
| Field of View | Diagonal, Horizontal, Vertical |
| Lens Type | Varifocal |
| Maximum Aperture | f/1.6 |
| Maximum Frame Rate | 25fps |
| Minimum Focal Length | 3.20mm |
| Night Vision | Yes |
| Night Vision Type | Active Illumination, Near-Infrared (NIR) |
| Optical Zoom | 3.0x |
| Video Resolution | 1280 x 720 |
| Video Signal Format | PAL |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|
Certifications
| Ingress protection | IP66 |
|---|
Environmental conditions
| Maximum Operating Temperature | 55°C |
|---|---|
| Minimum Operating Temperature | -30°C |
| Operating Humidity | 90% |
Exposure
| Longest Shutter Speed | 1 Second |
|---|---|
| Minimum Illumination | 0.0100lux |
| Shortest Shutter Speed | 1/12000 Second |
Lens
| Focal Length | 3.2-10mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 10.00mm |
Physical characteristics
| Colour | Black |
|---|---|
| Form Factor | Bullet |
| Weight | 939.00g |
Power description
| Input Voltage | 12V DC |
|---|---|
| Power Source | AC Power, DC Power |
Product information
| Diameter | 78.00mm |
|---|---|
| Length | 259.80mm |
| Mount Type | Junction Box Mount, Pole Mount |
Video
| Analog Video Signal Format | AHD, CVBS (Composite Video Baseband Signal) |
|---|
Miscellaneous
| Features | Alarm Triggering, Auto Gain Control, Back Light Compensation (BLC), Day/Night, Defog, Digital Noise Reduction, Dual Power, Highlight Compensation (HLC), Motion Detection, Privacy Masking |
|---|
Attributes
| Input Voltage | 12V DC |
|---|---|
| Power Source | AC Power, DC Power |
| Weight | 939.00g |
| Impact protection | IK10 |
