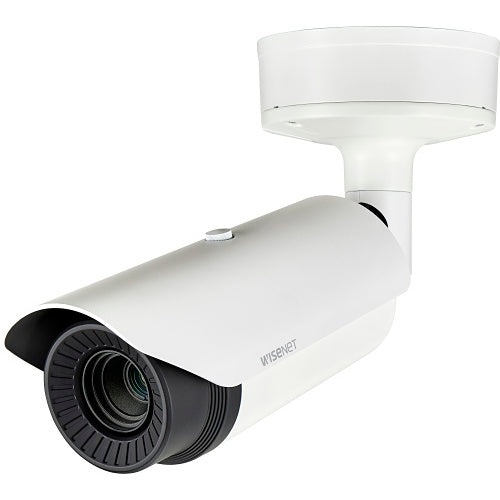

Hanwha Vision TNO-L4030T thermal imaging camera, 640 x 480
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Hanwha Vision TNO-L4030T is a thermal imaging camera from the T range.
T Series thermal network camera are classified according to lenses. Each TNO Series thermal camera has motion detection and handover functions. Transfers the detected object to the revolving camera without leaving the viewing area.
The motion is then displayed continuously. The Hallway View function allows you to optimize the vertical image with the thermal camera. Internal gyroscope sensors are used to enable digital image stabilization.
Supports SD, SDHC or SDXC memory cards up to 256 GB. They can be supplied as 12 VDC, 24 VAC and PoE. All thermal imagers operate at temperatures from -40 to +60 ° C.
They provide protection against dust and moisture in IP66 standard and impact protection in IK10 standard.
Key features
- Max. 640 x 480 resolution support
- Built-in 13mm fixed lens
- H.265, H.264, MJPEG codec
- Max. 8fps at all resolutions (H.265, H.264, MJPEG)
- Motion detection, Handover, Tampering, Loitering
- Directional detection, Audio detection
- SD / SDHC / SDXC memory slot (Max. 256GB)
- Hallway View, WiseStreamII support
- PoE, 24V AC, 12V DC
- IP66, NEMA4X, IK10
Specifications
Technical information
Camera
Certifications
Display & graphics
Environmental conditions
Interfaces/ports
Lens
Network & communication
Physical characteristics
Power description
Product information
Storage
Video
Miscellaneous
Attributes
Specifications
| Brand Name | Hanwha Vision |
|---|---|
| Manufacturer Part Number | TNO-L4030T |
| Product Series | T |
| Product Type | Thermal Imaging Cameras |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Field of View | Diagonal, Horizontal, Vertical |
| Field of View (Horizontal) | 48.6° |
| Lens Type | Fixed |
| Maximum Aperture | f/1 |
| Maximum Frame Rate | 8fps |
| Minimum Focal Length | 13.00mm |
| Night Vision Type | Active Illumination, Near-Infrared (NIR) |
| Video Formats | H.264 / AVC, H.265 / HEVC, MJPEG |
| Video Resolution | 640 x 480 |
| Video Signal Format | CVBS (Composite) |
Camera
| Image Sensor Type | Uncooled Microbolometer |
|---|
Certifications
| Ingress protection | IP66 |
|---|
Display & graphics
| Maximum video resolution | 640 x 480 |
|---|
Environmental conditions
| Maximum Operating Temperature | 60°C |
|---|---|
| Minimum Operating Temperature | -40°C |
| Operating Humidity | 90% |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 13mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 13.00mm |
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Colour | White |
|---|---|
| Durability | Impact Resistant |
| Form Factor | Bullet |
| Weight | 3.12kg |
Power description
| Input Voltage | 12V DC, 24V AC |
|---|
Product information
| Diameter | 102.00mm |
|---|---|
| Length | 401.80mm |
Storage
| Storage Type | SD Card |
|---|
Video
| Analog Video Signal Format | CVBS (Composite Video Baseband Signal) |
|---|
Miscellaneous
| Features | Audio Detection, Day/Night, Digital Image Stabilization, Mirror, Motion Detection, Privacy Masking, Removable IR Cut-off Filter, Shock Detection, Tamper Detection, Tampering Alarm, Video Content Analytics, Wide Dynamic Range |
|---|
Attributes
| Input Voltage | 12V DC, 24V AC |
|---|---|
| Weight | 3.12kg |
| Impact protection | IK10 |
