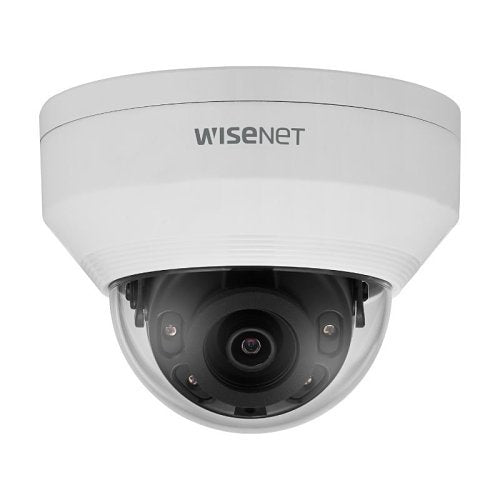

Hanwha Vision ANV-L6012R vandal dome camera, 2MP
About this product
Hanwha Vision ANV-L6012R is a vandal dome camera from the A range.
The A series product line includes cost-effective camera and NVR solutions equipped with the essential functionality security professionals demand. Being affordable without sacrificing features makes it well suited to meet the needs of small to medium sized sites such as retail, banking, and commercial locations.
Key features
- 2MP (1920 x 1080) Resolution
- 2.8mm Lens with 113.7° HFoV
- 30fps At all resolutions (H.265/H.264)
- H.265/H.264, MJPEG Codec supported, Multiple streaming
- Day and Night (ICR), WDR (120 dB)
- Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering
- Micro SD/SDHC memory slot (Max. 32GB), PoE
- Hallway view, WiseStream II support
- IR Viewable length 30m
- IP66, IK10 Support
Specifications
Technical information
Camera
Certifications
Display & graphics
Environmental conditions
Exposure
Interfaces/ports
Lens
Network & communication
Physical characteristics
Product information
Storage
Video
Miscellaneous
Attributes
Specifications
| Brand Name | Hanwha Vision |
|---|---|
| Manufacturer Part Number | ANV-L6012R |
| Product Series | A |
| Product Type | Network Camera |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Effective resolution | 2MP |
| Field of View | Diagonal, Horizontal, Vertical |
| Field of View (Horizontal) | 113.7° |
| Field of View (Vertical) | 61.50° |
| Lens Type | Fixed |
| Maximum Aperture | f/2 |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 2.80mm |
| Night Vision | Yes |
| Night Vision Type | Infrared (IR) |
| Video Formats | H.264 / AVC, H.265 / HEVC, MJPEG |
| Video Resolution | 1280 x 720 |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|---|
| Night Vision Distance | 30.00m |
Certifications
| Ingress protection | IP66 |
|---|
Display & graphics
| Maximum video resolution | 1920 x 1080 |
|---|
Environmental conditions
| Maximum Operating Temperature | 55°C |
|---|---|
| Minimum Operating Temperature | -30°C |
| Operating Humidity | 95% |
Exposure
| Longest Shutter Speed | 2 Second |
|---|---|
| Minimum Illumination | 0.0000lux |
| Shortest Shutter Speed | 1/12000 Second |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 2.8mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 2.80mm |
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Colour | White |
|---|---|
| Durability | Vandal Resistant |
| Form Factor | Dome |
| Height | 91.70mm |
| Weight | 410.00g |
Product information
| Diameter | 120.00mm |
|---|---|
| Mount Type | Backbox Mount, Corner Mount, Flush Mount, In-ceiling Mount, Parapet Mount, Pendant Mount, Pole Mount, Wall Mount |
Storage
| Recording Formats | H.264, H.265 / HEVC |
|---|---|
| Storage Type | SD Card |
Video
| Maximum Resolution | 1280 x 720 |
|---|
Miscellaneous
| Features | Automatic White Balance, Back Light Compensation (BLC), Built-in Mechanical ICR, Day/Night, Digital Noise Reduction, Gain Control, Motion Detection, Privacy Masking, SD Card Local Storage, Tamper Detection, Wide Dynamic Range |
|---|---|
| Impact protection | IK10 |
| Indoor or outdoor use | Outdoor |
Attributes
| Weight | 410.00g |
|---|
