Hanwha Vision ANV-L7012R vandal dome camera, 4MP
Free Delivery
£
150
42
(Incl. VAT)
About this product

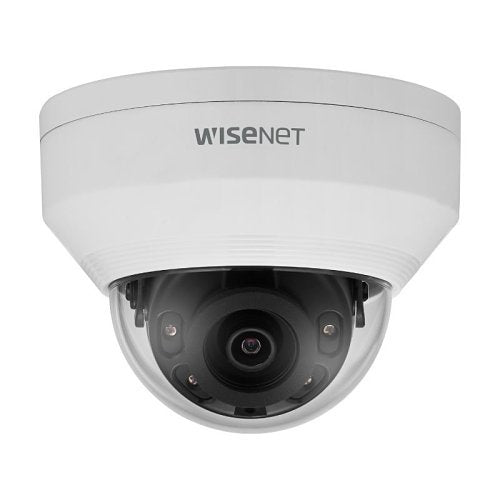

Hanwha Vision ANV-L7012R is a vandal dome camera from the A range.
The A series product line includes cost-effective camera and NVR solutions equipped with the essential functionality security professionals demand. Being affordable without sacrificing features makes it well suited to meet the needs of small to medium sized sites such as retail, banking, and commercial locations.
Key features
- 4MP Resolution, Up to 30fps (H.265/H.264)
- Color 0.1Lux (F1.6, 1/30sec); B/W 0Lux (IR LED On)
- 3mm Lens with 107.5° HFoV
- IR Viewable length 20m
- Day and Night (ICR), WDR (120 dB)
- H.265, H.264, MJPEG, Multiple streaming supported
- Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering
- Hallway view (90⁰/270⁰), LDC support, WiseStream II
- Micro SD/SDHC/SDXC memory slot
- IP66, IK10 Support
£
150
42
Price
Technical Details
Specifications
Brand Name
Hanwha Vision
Manufacturer Part Number
ANV-L7012R
Product Series
A
Product Type
Network Camera
Technical information
Connectivity Technology
Wired
Effective resolution
4MP
Field of View
Diagonal, Horizontal, Vertical
Field of View (Horizontal)
98.3°
Field of View (Vertical)
54.20°
Lens Type
Fixed
Maximum Aperture
f/1.6
Maximum Frame Rate
30fps
Minimum Focal Length
3.00mm
Night Vision
Yes
Night Vision Type
Infrared (IR)
Video Formats
H.264 / AVC, H.265 / HEVC, MJPEG
Video Resolution
1280 x 720
Wide Dynamic Range
Yes
Camera
Image Sensor Type
CMOS
Night Vision Distance
20.00m
Certifications
Ingress protection
IP66
Display & graphics
Maximum video resolution
2560 x 1440
Environmental conditions
Maximum Operating Temperature
55°C
Minimum Operating Temperature
-30°C
Operating Humidity
95%
Exposure
Longest Shutter Speed
1/5 Second
Minimum Illumination
0.0000lux
Shortest Shutter Speed
1/12000 Second
Interfaces/ports
Network (RJ-45)
Yes
Lens
Focal Length
3mm
Lens Included
Yes
Maximum Focal Length
3.00mm
Network & communication
Remote Management
Yes
Physical characteristics
Colour
White
Durability
Vandal Resistant
Form Factor
Dome
Height
91.70mm
Weight
410.00g
Product information
Diameter
120.00mm
Mount Type
Backbox Mount, Corner Mount, Flush Mount, In-ceiling Mount, Parapet Mount, Pendant Mount, Pole Mount, Wall Mount
Storage
Recording Formats
H.264, H.265 / HEVC
Storage Type
SD Card
Video
Maximum Resolution
1280 x 720
Miscellaneous
Features
Automatic White Balance, Back Light Compensation (BLC), Built-in Mechanical ICR, Day/Night, Digital Noise Reduction, Gain Control, Motion Detection, Privacy Masking, SD Card Local Storage, Tamper Detection, Wide Dynamic Range
Impact protection
IK10
Indoor or outdoor use
Outdoor
Attributes
Weight
410.00g
Specifications
| Brand Name | Hanwha Vision |
|---|---|
| Manufacturer Part Number | ANV-L7012R |
| Product Series | A |
| Product Type | Network Camera |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Effective resolution | 4MP |
| Field of View | Diagonal, Horizontal, Vertical |
| Field of View (Horizontal) | 98.3° |
| Field of View (Vertical) | 54.20° |
| Lens Type | Fixed |
| Maximum Aperture | f/1.6 |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 3.00mm |
| Night Vision | Yes |
| Night Vision Type | Infrared (IR) |
| Video Formats | H.264 / AVC, H.265 / HEVC, MJPEG |
| Video Resolution | 1280 x 720 |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|---|
| Night Vision Distance | 20.00m |
Certifications
| Ingress protection | IP66 |
|---|
Display & graphics
| Maximum video resolution | 2560 x 1440 |
|---|
Environmental conditions
| Maximum Operating Temperature | 55°C |
|---|---|
| Minimum Operating Temperature | -30°C |
| Operating Humidity | 95% |
Exposure
| Longest Shutter Speed | 1/5 Second |
|---|---|
| Minimum Illumination | 0.0000lux |
| Shortest Shutter Speed | 1/12000 Second |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 3mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 3.00mm |
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Colour | White |
|---|---|
| Durability | Vandal Resistant |
| Form Factor | Dome |
| Height | 91.70mm |
| Weight | 410.00g |
Product information
| Diameter | 120.00mm |
|---|---|
| Mount Type | Backbox Mount, Corner Mount, Flush Mount, In-ceiling Mount, Parapet Mount, Pendant Mount, Pole Mount, Wall Mount |
Storage
| Recording Formats | H.264, H.265 / HEVC |
|---|---|
| Storage Type | SD Card |
Video
| Maximum Resolution | 1280 x 720 |
|---|
Miscellaneous
| Features | Automatic White Balance, Back Light Compensation (BLC), Built-in Mechanical ICR, Day/Night, Digital Noise Reduction, Gain Control, Motion Detection, Privacy Masking, SD Card Local Storage, Tamper Detection, Wide Dynamic Range |
|---|---|
| Impact protection | IK10 |
| Indoor or outdoor use | Outdoor |
Attributes
| Weight | 410.00g |
|---|
