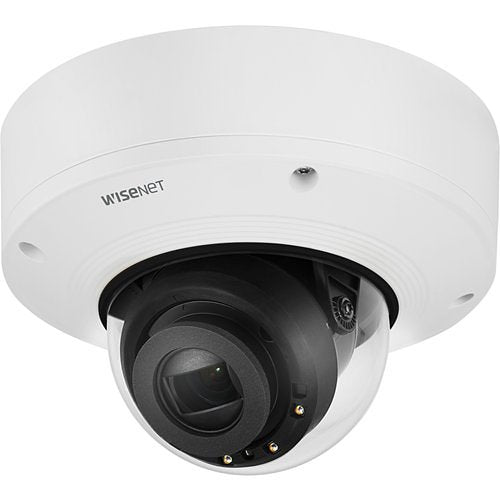

Hanwha Vision XNV-6081RE vandal dome camera, 2MP
Free Delivery
£
765
21
(Incl. VAT)
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Hanwha Vision XNV-6081RE is a vandal dome camera from the X range.
1/2.8-inch CMOS sensor, light sensitivity: 0.015 lux in color and 0 lux in black & white (TDN and IR on), Hallway View and Wisestream II support, vibration detection and DIS via gyro sensor, composite video output for adjustment, defogging, blur detection, directional detection, digital auto-tracking, line crossing, sound classification, people counting, queue management, heatmapping, audio input/output, compression: H.264/265/MJPEG, MicroSD / HC / XC up to 512 GB
Key features
- Max. 2MP resolution
- PoE Extender (Main cam, extension cam), PoE out: Max. 12.95Wat 80m
- Modular structure, PoE+ in/ PoE out
- 2.8~12mm(4.3x) motorised varifocal
- Video & audio analytics, Audio playback
- IR viewable length 50m
- DIS and shock detection with built-in gyro sensor
- Day & Night (ICR), WDR (150dB)
- Business Intelligence (People counting, Queue management, Heatmap)
- IP66/IP67/IP6K9K, IK10+, NEMA4X
-
Download
- XNV-6081RE — Product Manual
£
765
21
Price
Technical Details
Specifications
Brand Name
Hanwha Vision
Manufacturer Part Number
XNV-6081RE
Product Series
X
Product Type
Dome Cameras
Technical information
Connectivity Technology
Wired
Effective resolution
2MP
Field of View
Diagonal, Horizontal, Vertical
Lens Type
Varifocal
Maximum Aperture
f/1.4
Maximum Frame Rate
60fps
Minimum Focal Length
2.80mm
Optical Zoom
4.0x
Video Formats
H.264 / AVC, H.265 / HEVC, MJPEG
Video Resolution
1280 x 720
Wide Dynamic Range
Yes
Camera
Image Sensor Type
CMOS
Night Vision Distance
50.00m
Certifications
Ingress protection
IP66, IP67
Display & graphics
Maximum video resolution
1920 x 1080
Environmental conditions
Maximum Operating Temperature
60°C
Minimum Operating Temperature
-50°C
Operating Humidity
90%
Exposure
Longest Shutter Speed
2 Second
Minimum Illumination
0.0000lux
Shortest Shutter Speed
1/12000 Second
Interfaces/ports
Network (RJ-45)
Yes
Lens
Focal Length
2.8-12mm
Lens Included
Yes
Maximum Focal Length
12.00mm
Minimum Aperture
f/3.6
Network & communication
Remote Management
Yes
Physical characteristics
Colour
White
Durability
Dustproof, Impact Resistant, Waterproof
Form Factor
Dome
Height
125.00mm
Weight
1.75kg
Power description
Input Voltage
PoE+
Product information
Diameter
180.00mm
Mount Type
Ceiling Mount, Corner Mount, Parapet Mount, Pendant Mount, Pole Mount, Wall Mount
Storage
Recording Formats
H.264, H.265 / HEVC
Storage Type
SD Card
Video
Analog Video Signal Format
CVBS (Composite Video Baseband Signal)
Maximum Resolution
1280 x 720
Miscellaneous
Impact protection
IK10
Attributes
Indoor or outdoor use
Indoor, Outdoor
Input Voltage
PoE+
Weight
1.75kg
Specifications
| Brand Name | Hanwha Vision |
|---|---|
| Manufacturer Part Number | XNV-6081RE |
| Product Series | X |
| Product Type | Dome Cameras |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Effective resolution | 2MP |
| Field of View | Diagonal, Horizontal, Vertical |
| Lens Type | Varifocal |
| Maximum Aperture | f/1.4 |
| Maximum Frame Rate | 60fps |
| Minimum Focal Length | 2.80mm |
| Optical Zoom | 4.0x |
| Video Formats | H.264 / AVC, H.265 / HEVC, MJPEG |
| Video Resolution | 1280 x 720 |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|---|
| Night Vision Distance | 50.00m |
Certifications
| Ingress protection | IP66, IP67 |
|---|
Display & graphics
| Maximum video resolution | 1920 x 1080 |
|---|
Environmental conditions
| Maximum Operating Temperature | 60°C |
|---|---|
| Minimum Operating Temperature | -50°C |
| Operating Humidity | 90% |
Exposure
| Longest Shutter Speed | 2 Second |
|---|---|
| Minimum Illumination | 0.0000lux |
| Shortest Shutter Speed | 1/12000 Second |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 2.8-12mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 12.00mm |
| Minimum Aperture | f/3.6 |
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Colour | White |
|---|---|
| Durability | Dustproof, Impact Resistant, Waterproof |
| Form Factor | Dome |
| Height | 125.00mm |
| Weight | 1.75kg |
Power description
| Input Voltage | PoE+ |
|---|
Product information
| Diameter | 180.00mm |
|---|---|
| Mount Type | Ceiling Mount, Corner Mount, Parapet Mount, Pendant Mount, Pole Mount, Wall Mount |
Storage
| Recording Formats | H.264, H.265 / HEVC |
|---|---|
| Storage Type | SD Card |
Video
| Analog Video Signal Format | CVBS (Composite Video Baseband Signal) |
|---|---|
| Maximum Resolution | 1280 x 720 |
Miscellaneous
| Impact protection | IK10 |
|---|
Attributes
| Indoor or outdoor use | Indoor, Outdoor |
|---|---|
| Input Voltage | PoE+ |
| Weight | 1.75kg |
