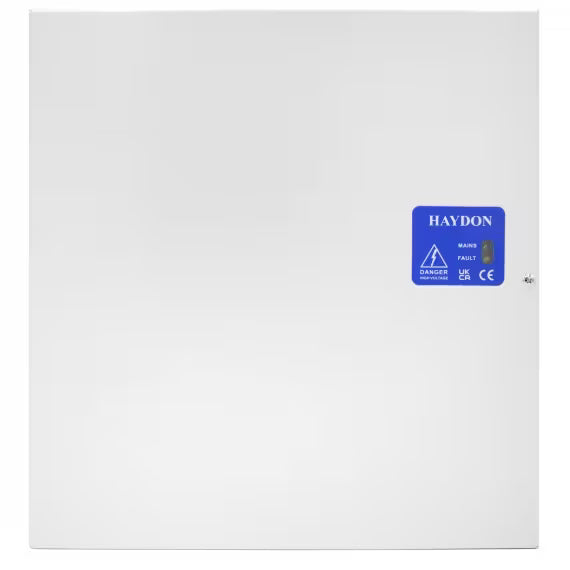

Haydon HAY-PSU12/24V8/4A-8W 12/24V Selectable Power Supply, 8 or 4 Amps, 8-Way Fuse Board
Free Delivery
£
133
49
(Incl. VAT)
RRP: £160.19
About this product
The Haydon HAY-PSU12/24V8/4A-8W is a 12 or 24vdc selectable power supply giving 8 or 4 amps, with an 8 way fuse board of independent switchable outputs. Its enclosure can house 2x 7.0AH batteries.
Key features
- 12 or 24vdc output, 8 or 4 amps
- 8 way fuse board with independent switchable outputs
- Outputs triggered via the relay using NC, NO + or – (5-24vdc)
- Each output set to either hold or drop the power when the relay is triggered
- Enclosure houses 2x 7.0AH batteries
Frequently asked questions
What output does the HAY-PSU12/24V8/4A-8W give?
It is a 12 or 24vdc power supply giving 8 or 4 amps.
How many outputs does it have?
It has an 8 way fuse board with independent switchable outputs.
How are the outputs triggered?
Via the relay, using NC, NO + or – (5-24vdc). Each time the relay is triggered, the individual outputs are set to either hold or drop the power where required to each device.
What batteries does the enclosure take?
The enclosure can house 2x 7.0AH batteries.
£
133
49
RRP: £160.19
Save £26.70
Price
Technical Details
Specifications
Brand
Haydon
Model
HAY-PSU12/24V8/4A-8W
Manufacturer Part Number (MPN)
HAY-PSU12/24V8/4A-8W
Output voltage
12 or 24vdc
Output current
8 or 4 amps
Fuse board
8 way, independent switchable outputs
Relay trigger
NC, NO + or – (5-24vdc)
Battery housing
2x 7.0AH batteries
Mounting
Wall
Colour
White
Specifications
| Brand | Haydon |
|---|---|
| Model | HAY-PSU12/24V8/4A-8W |
| Manufacturer Part Number (MPN) | HAY-PSU12/24V8/4A-8W |
| Output voltage | 12 or 24vdc |
| Output current | 8 or 4 amps |
| Fuse board | 8 way, independent switchable outputs |
| Relay trigger | NC, NO + or – (5-24vdc) |
| Battery housing | 2x 7.0AH batteries |
| Mounting | Wall |
| Colour | White |
