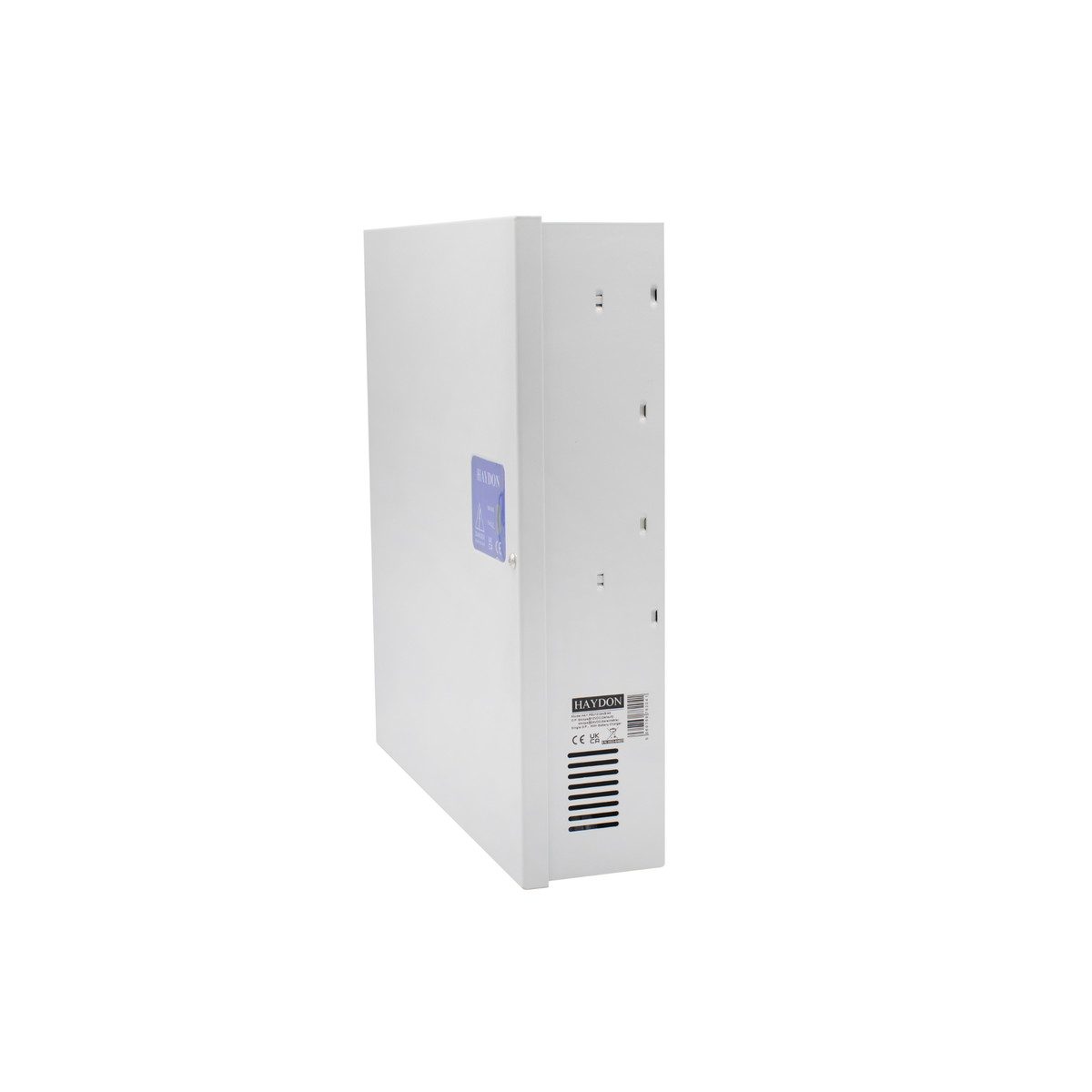

Haydon HAY-PSU12/24V8/4A Selectable DC Power Supply, 12V or 24V DC, 8 Amps or 4 Amps
£
112
98
(Incl. VAT)
RRP: £135.58
About this product
The Haydon HAY-PSU12/24V8/4A is a selectable 12 or 24 V DC power supply with 8 or 4 amps of power. In 12V mode the mains output is 13.2 to 14.0 V DC (13.8 V DC nominal), max 8A; in 24V mode it is 27.0 to 28.0 V DC (27.6 V DC nominal), max 4A.
Key features
- Selectable 12 or 24 V DC; 8 or 4 amps of power
- 12V mode: mains output 13.2 to 14.0 V DC (13.8 V DC nominal), max 8A
- 24V mode: mains output 27.0 to 28.0 V DC (27.6 V DC nominal), max 4A
- Input 100 to 240 V AC, 50 to 60 Hz
- Battery capacity 2 x 12V 7Ah max; charge current 0.7A max
- Additional outputs: mains and independent relays
- Protection: over-current, over-load, over-charge and over-discharge
- Front and rear tamper; Mains/Fault panel indicators
Frequently asked questions
Can the HAY-PSU12/24V8/4A run at 12V and 24V?
Yes: it is a selectable 12 or 24 V DC power supply, max 8A in 12V mode and max 4A in 24V mode.
What input does it need?
100 to 240 V AC, 50 to 60 Hz.
What battery capacity does it support?
2 x 12V 7Ah max, with a charge current of 0.7A max.
Do I need to change the fuse for 24V?
The output fuse is F8A at 12V by default; change it to F4A at 24V.
What protection does it have?
Over-current, over-load, over-charge and over-discharge protection, with front and rear tamper.
How big is it?
W 330 x H 365 x D 85 mm.
-
Download
- HAY-PSU12/24V8/4A Tech Sheet
£
112
98
RRP: £135.58
Save £22.60
Price
Technical Details
Specifications
Brand
Haydon
Model
HAY-PSU12/24V8/4A
Manufacturer Part Number (MPN)
HAY-PSU12/24V8/4A
Output voltage
12V or 24V DC selectable
Amps
8 Amps or 4 Amps
Outputs
1 x 8 amp in 12v mode
Mounting
Wall
Environment
Indoor
Colour
White
Input
100 - 240 V AC, 50 - 60 Hz
Main Fuse
F3A
Mains Output 12V Mode
13.2 - 14.0 V DC (13.8 V DC nominal), Max 8A
Mains Output 24V Mode
27.0 - 28.0 V DC (27.6 V DC nominal), Max 4A
Battery Output 12V Mode
10.5 - 12.4 V DC
Battery Output 24V Mode
21.0 - 24.7 V DC
Additional Outputs
Mains and Independent relays
Charge Current
0.7A max
Charger Fuse
0.5A PTC
Panel Indicators
Mains/Fault
Output Fuse
F8A @ 12V default, change to F4A @ 24V
Protection
Over-current / Over-load / Over-charge / Over-discharge
Battery Capacity
2 x 12V 7Ah Max
Tamper
Front and Rear
Dimensions (mm)
W 330 x H 365 x D 85
Accessories
Fuses 1x8A, 1x4A, 1x3A, 1x2A; 1x PG11 Gland; 2x M20 Rubber Feet; 4x Plastic Sticky Feet; 1x pair of Battery Leads; 1x Battery Jumper Lead
Specifications
| Brand | Haydon |
|---|---|
| Model | HAY-PSU12/24V8/4A |
| Manufacturer Part Number (MPN) | HAY-PSU12/24V8/4A |
| Output voltage | 12V or 24V DC selectable |
| Amps | 8 Amps or 4 Amps |
| Outputs | 1 x 8 amp in 12v mode |
| Mounting | Wall |
| Environment | Indoor |
| Colour | White |
| Input | 100 - 240 V AC, 50 - 60 Hz |
| Main Fuse | F3A |
| Mains Output 12V Mode | 13.2 - 14.0 V DC (13.8 V DC nominal), Max 8A |
| Mains Output 24V Mode | 27.0 - 28.0 V DC (27.6 V DC nominal), Max 4A |
| Battery Output 12V Mode | 10.5 - 12.4 V DC |
| Battery Output 24V Mode | 21.0 - 24.7 V DC |
| Additional Outputs | Mains and Independent relays |
| Charge Current | 0.7A max |
| Charger Fuse | 0.5A PTC |
| Panel Indicators | Mains/Fault |
| Output Fuse | F8A @ 12V default, change to F4A @ 24V |
| Protection | Over-current / Over-load / Over-charge / Over-discharge |
| Battery Capacity | 2 x 12V 7Ah Max |
| Tamper | Front and Rear |
| Dimensions (mm) | W 330 x H 365 x D 85 |
| Accessories | Fuses 1x8A, 1x4A, 1x3A, 1x2A; 1x PG11 Gland; 2x M20 Rubber Feet; 4x Plastic Sticky Feet; 1x pair of Battery Leads; 1x Battery Jumper Lead |
