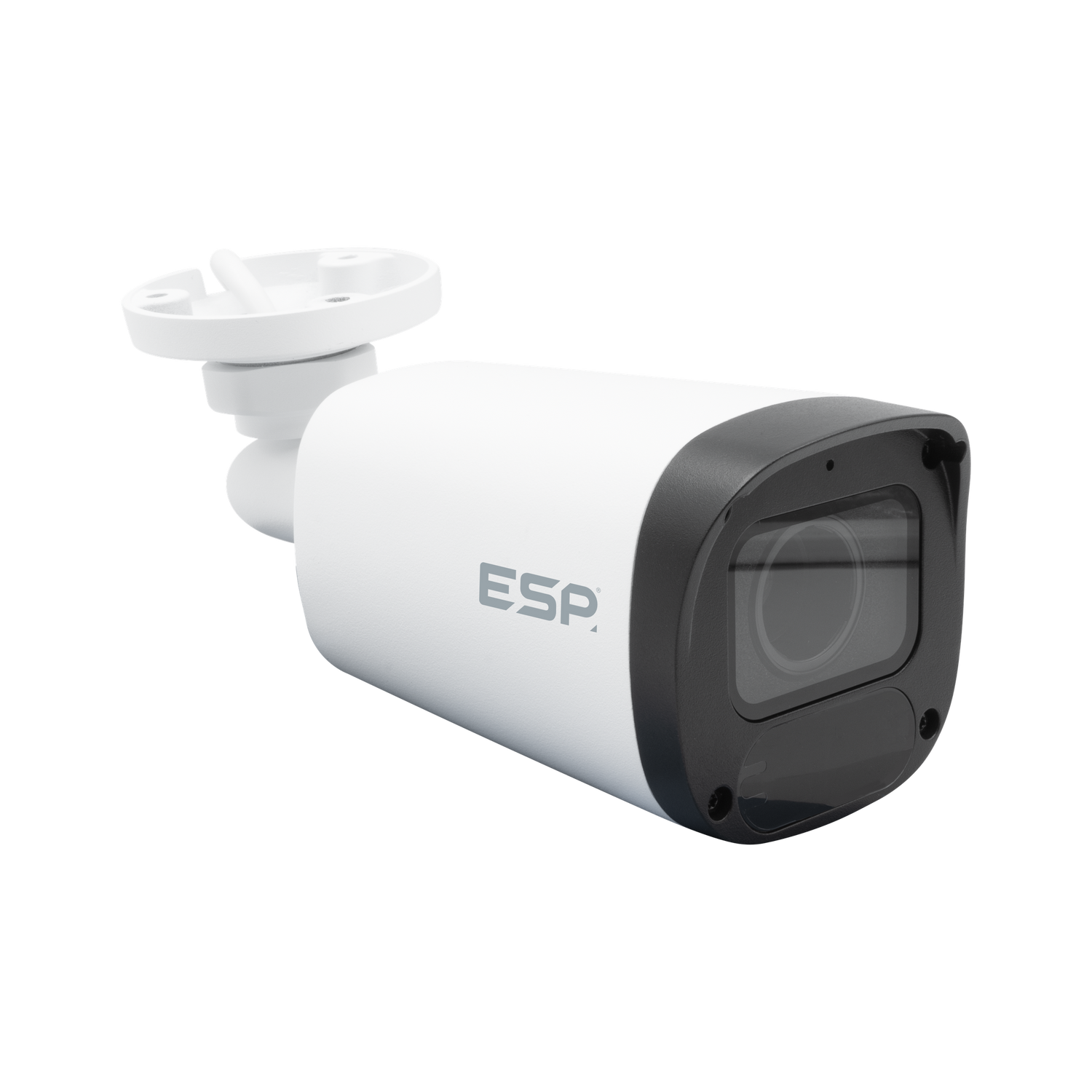

HDview H512VBW IP PoE 5MP 2.8-12mm Bullet Camera White
Free Delivery
£
150
44
(Incl. VAT)
2 Years Warranty
IP PoE 5MP 2.8-12mm Bullet Camera White
About this product
About this product
The HDview H512VBW, from ESP's CCTV range, is a white 5MP IP PoE bullet camera with a 2.8-12mm motorised varifocal lens. It takes PoE & 12V DC inputs, has a built-in microphone, and is compatible with HDview IP 24/7 NVRs.
Key features
- 5MP effective pixels (2880 x 1620); 1/2.7" progressive CMOS sensor
- 2.8-12mm varifocal (motorised) lens; viewing angle 96.4 - 32.7°
- Supports PoE & 12V DC inputs; PoE (IEEE802.3af)
- IR up to 40 m at 850 nm; IR-cut filter with auto switch (ICR)
- Built-in microphone
- ONVIF compliant: Profile S, Profile G, Profile T; H.265 compression
- Supports intelligent detection functionality
- White & black, IP67
Frequently asked questions
Is the H512VBW lens motorised?
Yes: it is a 2.8-12mm varifocal (motorised) lens, with a viewing angle of 96.4 - 32.7°.
Does it support PoE?
Yes: it supports PoE & 12V DC inputs; PoE is IEEE802.3af.
How far does the IR reach?
40 m, at 850 nm.
Which recorders is it for?
HDview IP 24/7 NVRs: the range of 24/7 Network Video Recorders, 4, 8, 16, 32 and 64 channels.
Which deep base fits it?
The BBW1 HDview IP 24/7 bullet deep base in white is its accessory.
-
Download
- H512VBW Tech Sheet
£
150
44
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
73 x 73 x 206
Storage Type
Micro SD, up to 256 GB
Materials
Graphene & Metal
Mounting
Surface
Weight (Kg)
0.51
Warranty (Years)
2
Operating Voltage (V DC)
12
Power Consumption (W)
9.6
Other Power Sources
PoE (IEEE802.3af)
Sensor Size (")
1/2.7" Progressive CMOS
Lens size (mm)
2.8-12
Lens Type
Varifocal (Motorised)
Electronic Shutter Type
Auto / Manual
Speed (sec/°)
1 to 1/100000
Scanning System
Progressive Scan CMOS
Maximum IR Distance (m)
40
IR Wavelength (nm)
850
Video Bit Rate
128 Kbps - 6 Mbps
Microphone Supported
Built-in
Day/Night
IR-Cut filter with Auto Switch (ICR)
Hardware Reset Button
Built-in
ONVIF Compliant
Yes; Profile S, Profile G, Profile T
Compatible Products
The range of 24/7 Network Video Recorders 4, 8, 16, 32 and 64 Channels
Colour
White & Black
Ingress Protection
IP67
Effective Pixels
2880 x 1620 (5MP)
Viewing Angle (°)
96.4 - 32.7
Frames Per Second (FPS)
5MP (2880*1620), Max 25fps; 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps
Basic Detection
Cross line, intrusion(based on human body detection), Motion Detection, Ultra Motion Detection, Tampering alarm, Audio Detection
Interface
RJ45 (10/100M Base-TX Ethernet), DC Socket (2.1 x 5.5mm)
Supplied
Quick Start Guide, Mounting Guide, Installation Screws and Rawlplugs and Pass Through Gland
Accessories
BBW1: HDVIEW IP 24/7 Bullet Deep Base - White
Dimensions
Dimensions (mm)
73 x 73 x 206
Specifications
| Dimensions (mm) | 73 x 73 x 206 |
|---|---|
| Storage Type | Micro SD, up to 256 GB |
| Materials | Graphene & Metal |
| Mounting | Surface |
| Weight (Kg) | 0.51 |
| Warranty (Years) | 2 |
| Operating Voltage (V DC) | 12 |
| Power Consumption (W) | 9.6 |
| Other Power Sources | PoE (IEEE802.3af) |
| Sensor Size (") | 1/2.7" Progressive CMOS |
| Lens size (mm) | 2.8-12 |
| Lens Type | Varifocal (Motorised) |
| Electronic Shutter Type | Auto / Manual |
| Speed (sec/°) | 1 to 1/100000 |
| Scanning System | Progressive Scan CMOS |
| Maximum IR Distance (m) | 40 |
| IR Wavelength (nm) | 850 |
| Video Bit Rate | 128 Kbps - 6 Mbps |
| Microphone Supported | Built-in |
| Day/Night | IR-Cut filter with Auto Switch (ICR) |
| Hardware Reset Button | Built-in |
| ONVIF Compliant | Yes; Profile S, Profile G, Profile T |
| Compatible Products | The range of 24/7 Network Video Recorders 4, 8, 16, 32 and 64 Channels |
| Colour | White & Black |
| Ingress Protection | IP67 |
| Effective Pixels | 2880 x 1620 (5MP) |
| Viewing Angle (°) | 96.4 - 32.7 |
| Frames Per Second (FPS) | 5MP (2880*1620), Max 25fps; 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps |
| Basic Detection | Cross line, intrusion(based on human body detection), Motion Detection, Ultra Motion Detection, Tampering alarm, Audio Detection |
| Interface | RJ45 (10/100M Base-TX Ethernet), DC Socket (2.1 x 5.5mm) |
| Supplied | Quick Start Guide, Mounting Guide, Installation Screws and Rawlplugs and Pass Through Gland |
| Accessories | BBW1: HDVIEW IP 24/7 Bullet Deep Base - White |
Dimensions
| Dimensions (mm) | 73 x 73 x 206 |
|---|
IP PoE 5MP 2.8-12mm Bullet Camera White features
