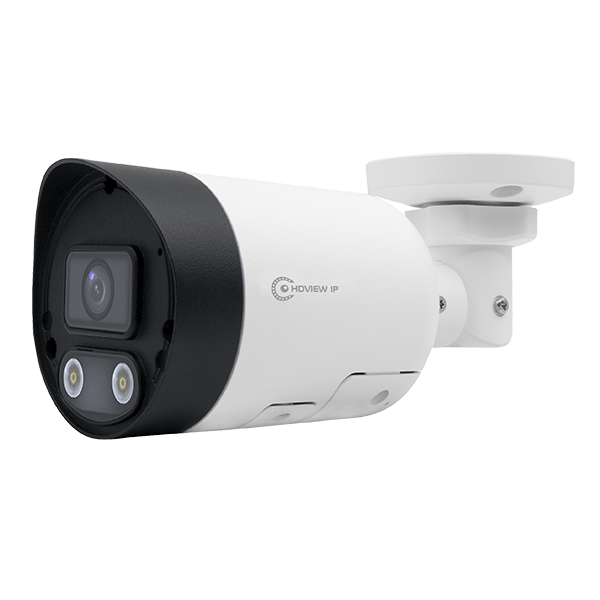

HDview HC528FBW IP PoE 5MP 2.8mm Bullet Camera White
£
122
15
(Incl. VAT)
2 Years Warranty
IP PoE 5MP 2.8mm Bullet Camera White
About this product
About this product
The HDview HC528FBW, from ESP's CCTV range, is a white 5MP IP PoE bullet camera with a fixed 2.8mm lens. It is a 24/7 camera with intelligently activated white lights and H.265 compression, and it is suitable for external applications.
Key features
- 5MP (2880 x 1620) at 30 frames per second
- Fixed 2.8mm lens; viewing angle 112.9 (H), 59.1 (V), 121.2 (D)
- IR and white light range 30 m each
- Supports PoE & 12V DC inputs; PoE (IEEE802.3af)
- Built-in microphone and speaker
- Supports intelligent detection functionality
- ONVIF compliant: Profile S, Profile G, Profile T
- White metal housing, IP67
Frequently asked questions
What resolution is the HC528FBW?
5MP (2880 x 1620).
Does it support PoE?
Yes: it supports PoE & 12V DC inputs; PoE is IEEE802.3af.
Is it suitable for outside use?
Yes: it is suitable for external applications.
Does it have audio?
Yes, a built-in microphone and a built-in speaker.
Which recorders is it for?
The range of 24/7 Network Video Recorders, 4, 8, 16, 32 and 64 channels.
-
Download
- HC528FBW Tech Sheet
£
122
15
Price
Technical Details
Specifications
Dimensions (mm)
74 x 75 x 191
Storage Type
Micro SD, up to 256 GB
Materials
Metal
Weight (Kg)
0.50
Operating Temperature (°C)
-30 to +60
Warranty (Years)
2
Storage Temperature (°C)
-30 to +60
Operating Voltage (V DC)
12
Power Consumption (W)
<11.5
Other Power Sources
PoE (IEEE802.3af)
Sensor Size (")
1/2.7" Progressive CMOS
Lens size (mm)
2.8
Lens Type
Fixed
Electronic Shutter Type
Auto / Manual
Speed (sec/°)
1 to 1/100000
Scanning System
Progressive Scan CMOS
Maximum IR Distance (m)
30
IR Wavelength (nm)
850
Video Bit Rate
128 Kbps - 16 Mbps
Microphone Supported
Built-in
Speaker Supported
Built-in
White Light Range (m)
30
Day/Night
IR-Cut filter with Auto Switch (ICR)
Hardware Reset Button
No
ONVIF Compliant
Yes; Profile S, Profile G, Profile T
Compatible Products
The range of 24/7 Network Video Recorders 4, 8, 16, 32 and 64 Channels
Colour
White
Ingress Protection
IP67
Effective Pixels
2880 x 1620 (5MP)
Viewing Angle (°)
112.9 (H), 59.1 (V), 121.2 (D)
Frames Per Second (FPS)
30 (@5MP 2880 x 1620)
Basic Detection
Motion Detection, Tampering Alarm, Audio Detection
Intelligent Detection
Support False Alarm Filtering, Line Crossing Detection, Intrusion Detection, Region Entrance Detection, Region Exit Detection
Interface
RJ45 (10/100M Base-TX Ethernet), DC Socket (2.1 x 5.5mm)
Supplied
Quick Start Guide, Mounting Guide, Installation Screws and Rawlplugs and Pass Through Gland
Accessories
BBW1: HDVIEW IP 24/7 Bullet Deep Base - White
Dimensions
Dimensions (mm)
74 x 75 x 191
Specifications
| Dimensions (mm) | 74 x 75 x 191 |
|---|---|
| Storage Type | Micro SD, up to 256 GB |
| Materials | Metal |
| Weight (Kg) | 0.50 |
| Operating Temperature (°C) | -30 to +60 |
| Warranty (Years) | 2 |
| Storage Temperature (°C) | -30 to +60 |
| Operating Voltage (V DC) | 12 |
| Power Consumption (W) | <11.5 |
| Other Power Sources | PoE (IEEE802.3af) |
| Sensor Size (") | 1/2.7" Progressive CMOS |
| Lens size (mm) | 2.8 |
| Lens Type | Fixed |
| Electronic Shutter Type | Auto / Manual |
| Speed (sec/°) | 1 to 1/100000 |
| Scanning System | Progressive Scan CMOS |
| Maximum IR Distance (m) | 30 |
| IR Wavelength (nm) | 850 |
| Video Bit Rate | 128 Kbps - 16 Mbps |
| Microphone Supported | Built-in |
| Speaker Supported | Built-in |
| White Light Range (m) | 30 |
| Day/Night | IR-Cut filter with Auto Switch (ICR) |
| Hardware Reset Button | No |
| ONVIF Compliant | Yes; Profile S, Profile G, Profile T |
| Compatible Products | The range of 24/7 Network Video Recorders 4, 8, 16, 32 and 64 Channels |
| Colour | White |
| Ingress Protection | IP67 |
| Effective Pixels | 2880 x 1620 (5MP) |
| Viewing Angle (°) | 112.9 (H), 59.1 (V), 121.2 (D) |
| Frames Per Second (FPS) | 30 (@5MP 2880 x 1620) |
| Basic Detection | Motion Detection, Tampering Alarm, Audio Detection |
| Intelligent Detection | Support False Alarm Filtering, Line Crossing Detection, Intrusion Detection, Region Entrance Detection, Region Exit Detection |
| Interface | RJ45 (10/100M Base-TX Ethernet), DC Socket (2.1 x 5.5mm) |
| Supplied | Quick Start Guide, Mounting Guide, Installation Screws and Rawlplugs and Pass Through Gland |
| Accessories | BBW1: HDVIEW IP 24/7 Bullet Deep Base - White |
Dimensions
| Dimensions (mm) | 74 x 75 x 191 |
|---|
IP PoE 5MP 2.8mm Bullet Camera White features
