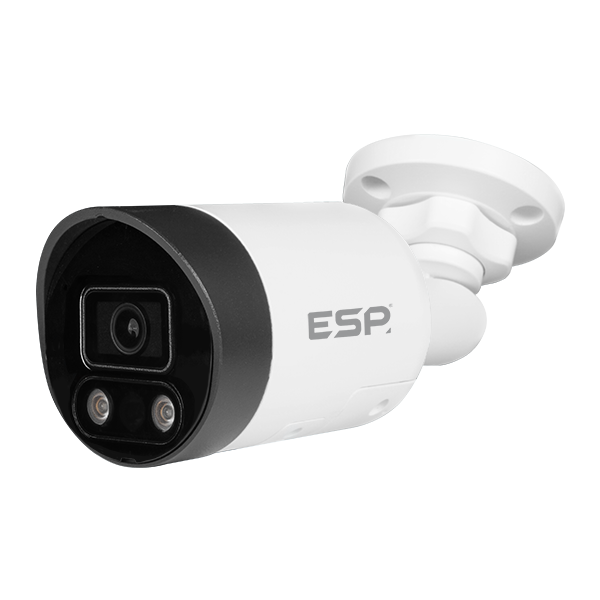

HDview HC828BW IP PoE 8MP 2.8mm Bullet Camera White
Free Delivery
£
134
84
(Incl. VAT)
2 Years Warranty
IP PoE 8MP 2.8mm Bullet Camera White
About this product
About this product
The HDview HC828BW, from ESP's CCTV range, is a white 8MP IP PoE bullet camera with a fixed 2.8mm lens. It is a 24/7 camera with intelligently activated white lights, a built-in microphone and speaker, and it is suitable for external applications.
Key features
- 8MP (3840 x 2160), 1/2.7" sensor, fixed 2.8mm lens
- Viewing angle 98.7 (H), 53.6 (V), 113.4 (D)
- IR and white light range 40 m each; dual light (IR & white light) day/night
- Supports PoE & 12V DC inputs; PoE (IEEE802.3af/at)
- Built-in microphone and speaker
- Micro SD storage up to 512 GB; H.265 compression
- ONVIF compliant: Profile S, Profile G, Profile T
- IP67
Frequently asked questions
What resolution is the HC828BW?
8MP (3840 x 2160).
Can it be powered over PoE?
Yes: it supports PoE & 12V DC inputs; PoE is IEEE802.3af/at.
How far do the IR and white light reach?
40 m each.
Does it have audio?
Yes, a built-in microphone and a built-in speaker.
Which recorders is it for?
The HC & H1C series of HDview IP 24/7 NVRs.
-
Download
- HC828BW Tech Sheet
£
134
84
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
71 x 71 x 187
Storage Type
Micro SD, up to 512 GB
Materials
Powder Coated Aluminium Alloy & Plastic
Weight (Kg)
0.42
Warranty (Years)
2
Operating Voltage (V DC)
12 ± 25%
Power Consumption (W)
11
Power Consumption (A)
0.916667
Other Power Sources
PoE (IEEE802.3af/at)
Sensor Size (")
1/2.7"
Lens size (mm)
2.8
Lens Type
Fixed
Electronic Shutter Type
Auto / Manual
Speed (sec/°)
1 to 1/100000
Frames Per Second (FPS)
30 Max.
Maximum IR Distance (m)
40
IR Wavelength (nm)
850
Microphone Supported
Built-in
Speaker Supported
Built-in
White Light Range (m)
40
Day/Night
Dual Light (IR & White Light)
Hardware Reset Button
Yes
ONVIF Compliant
Yes; Profile S, Profile G, Profile T
Supplied
1 x QSG, 1 x camera, 1 x installation pack & 1 x mounting sticker
Compatible Products
For use with HC & H1C series of HDview IP 24/7 NVRs
Colour
White
Ingress Protection
IP67
Operating Temperature (°C)
-30 to +60
Effective Pixels
3840 x 2160 (8MP)
Viewing Angle (°)
98.7 (H), 53.6 (V), 113.4 (D)
Basic Detection
Motion detection, Ultra motion detection, Tampering alarm, Audio detection
Interface
1 x RJ45 female (10/100M Base-TX Ethernet), 1 x DC female (2.1x5.5mm)
Accessories
BBW1: HDview IP & Rekor IP 24/7 Bullet Deep Base - White
Dimensions
Dimensions (mm)
71 x 71 x 187
Specifications
| Dimensions (mm) | 71 x 71 x 187 |
|---|---|
| Storage Type | Micro SD, up to 512 GB |
| Materials | Powder Coated Aluminium Alloy & Plastic |
| Weight (Kg) | 0.42 |
| Warranty (Years) | 2 |
| Operating Voltage (V DC) | 12 ± 25% |
| Power Consumption (W) | 11 |
| Power Consumption (A) | 0.916667 |
| Other Power Sources | PoE (IEEE802.3af/at) |
| Sensor Size (") | 1/2.7" |
| Lens size (mm) | 2.8 |
| Lens Type | Fixed |
| Electronic Shutter Type | Auto / Manual |
| Speed (sec/°) | 1 to 1/100000 |
| Frames Per Second (FPS) | 30 Max. |
| Maximum IR Distance (m) | 40 |
| IR Wavelength (nm) | 850 |
| Microphone Supported | Built-in |
| Speaker Supported | Built-in |
| White Light Range (m) | 40 |
| Day/Night | Dual Light (IR & White Light) |
| Hardware Reset Button | Yes |
| ONVIF Compliant | Yes; Profile S, Profile G, Profile T |
| Supplied | 1 x QSG, 1 x camera, 1 x installation pack & 1 x mounting sticker |
| Compatible Products | For use with HC & H1C series of HDview IP 24/7 NVRs |
| Colour | White |
| Ingress Protection | IP67 |
| Operating Temperature (°C) | -30 to +60 |
| Effective Pixels | 3840 x 2160 (8MP) |
| Viewing Angle (°) | 98.7 (H), 53.6 (V), 113.4 (D) |
| Basic Detection | Motion detection, Ultra motion detection, Tampering alarm, Audio detection |
| Interface | 1 x RJ45 female (10/100M Base-TX Ethernet), 1 x DC female (2.1x5.5mm) |
| Accessories | BBW1: HDview IP & Rekor IP 24/7 Bullet Deep Base - White |
Dimensions
| Dimensions (mm) | 71 x 71 x 187 |
|---|
IP PoE 8MP 2.8mm Bullet Camera White features
