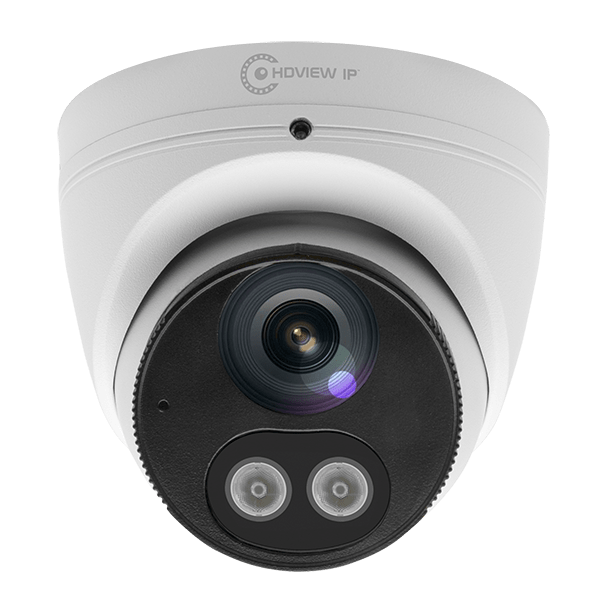

HDview HC828FDW IP PoE 8MP 2.8mm Dome Camera White
Free Delivery
£
150
04
(Incl. VAT)
2 Years Warranty
IP24/7 IP PoE 8MP 2.8mm Dome Camera White
About this product
About this product
With an 8MP (3840 x 2160) sensor behind a fixed 2.8mm lens, the HDview HC828FDW is a white 24/7 IP PoE dome camera with a 30 m IR range and a 30 m white light range.
Key features
- 8MP (3840 x 2160), fixed 2.8mm lens, 106.7° horizontal viewing angle
- 20 fps at 8MP
- IR to 30 m (850 nm) and white light to 30 m
- Built-in microphone and speaker
- Basic detection: motion detection, tampering alarm, audio detection. Intelligent detection: false alarm filtering, line crossing detection, intrusion detection, region entrance detection, region exit detection
- 12 V DC or PoE (IEEE802.3af); power consumption 10.5 W
- MicroSD up to 256 GB; ONVIF Profile S, Profile G and Profile T
- Rated IP67
Frequently asked questions
What resolution and lens does the HC828FDW have?
8MP (3840 x 2160) with a fixed 2.8mm lens; the viewing angle is 106.7° (H), 57.1° (V), 115.7° (D).
How is it powered?
By 12 V DC or PoE (IEEE802.3af); power consumption is 10.5 W.
What are its IR and white light ranges?
IR 30 m (850 nm) and white light 30 m.
Which recorders is it compatible with?
The range of 24/7 network video recorders of 4, 8, 16, 32 and 64 channels.
What is its IP rating?
IP67.
-
Download
- HC828FDW Tech Sheet
£
150
04
Price
Technical Details
Specifications
Dimensions (mm)
111 x 111 x 95
Storage Type
Micro SD, up to 256 GB
Materials
Metal & Plastic
Weight (Kg)
0.48
Operating Temperature (°C)
-30 to +60
Warranty (Years)
2
Storage Temperature (°C)
-30 to +60
Operating Voltage (V DC)
12
Power Consumption (W)
10.5
Other Power Sources
PoE (IEEE802.3af)
Sensor Size (")
1/2.8" Progressive CMOS
Lens size (mm)
2.8
Lens Type
Fixed
Electronic Shutter Type
Auto / Manual
Speed (sec/°)
1 to 1/100000
Scanning System
Progressive Scan CMOS
Maximum IR Distance (m)
30
IR Wavelength (nm)
850
Video Bit Rate
128 Kbps - 16 Mbps
Microphone Supported
Built-in
Speaker Supported
Built-in
White Light Range (m)
30
Day/Night
IR-Cut filter with Auto Switch (ICR)
Hardware Reset Button
No
ONVIF Compliant
Yes; Profile S, Profile G, Profile T
Compatible Products
The range of 24/7 Network Video Recorders 4, 8, 16, 32 and 64 Channels
Colour
White
Ingress Protection
IP67
Effective Pixels
3840 x 2160 (8MP)
Viewing Angle (°)
106.7 (H), 57.1 (V), 115.7 (D)
Frames Per Second (FPS)
20 (@8MP 3840 x 2160)
Basic Detection
Motion Detection, Tampering Alarm, Audio Detection
Intelligent Detection
Support False Alarm Filtering, Line Crossing Detection, Intrusion Detection, Region Entrance Detection, Region Exit Detection
Interface
1 RJ45; 10/100M Base-TX Ethernet
Supplied
Quick Start Guide, Mounting Guide, Installation Screws and Rawlplugs and Pass Through Gland
Accessories
DBW2: HDVIEW IP 24/7, 5 & 8MP Dome Deep Base - White
Dimensions
Dimensions (mm)
111 x 111 x 95
Specifications
| Dimensions (mm) | 111 x 111 x 95 |
|---|---|
| Storage Type | Micro SD, up to 256 GB |
| Materials | Metal & Plastic |
| Weight (Kg) | 0.48 |
| Operating Temperature (°C) | -30 to +60 |
| Warranty (Years) | 2 |
| Storage Temperature (°C) | -30 to +60 |
| Operating Voltage (V DC) | 12 |
| Power Consumption (W) | 10.5 |
| Other Power Sources | PoE (IEEE802.3af) |
| Sensor Size (") | 1/2.8" Progressive CMOS |
| Lens size (mm) | 2.8 |
| Lens Type | Fixed |
| Electronic Shutter Type | Auto / Manual |
| Speed (sec/°) | 1 to 1/100000 |
| Scanning System | Progressive Scan CMOS |
| Maximum IR Distance (m) | 30 |
| IR Wavelength (nm) | 850 |
| Video Bit Rate | 128 Kbps - 16 Mbps |
| Microphone Supported | Built-in |
| Speaker Supported | Built-in |
| White Light Range (m) | 30 |
| Day/Night | IR-Cut filter with Auto Switch (ICR) |
| Hardware Reset Button | No |
| ONVIF Compliant | Yes; Profile S, Profile G, Profile T |
| Compatible Products | The range of 24/7 Network Video Recorders 4, 8, 16, 32 and 64 Channels |
| Colour | White |
| Ingress Protection | IP67 |
| Effective Pixels | 3840 x 2160 (8MP) |
| Viewing Angle (°) | 106.7 (H), 57.1 (V), 115.7 (D) |
| Frames Per Second (FPS) | 20 (@8MP 3840 x 2160) |
| Basic Detection | Motion Detection, Tampering Alarm, Audio Detection |
| Intelligent Detection | Support False Alarm Filtering, Line Crossing Detection, Intrusion Detection, Region Entrance Detection, Region Exit Detection |
| Interface | 1 RJ45; 10/100M Base-TX Ethernet |
| Supplied | Quick Start Guide, Mounting Guide, Installation Screws and Rawlplugs and Pass Through Gland |
| Accessories | DBW2: HDVIEW IP 24/7, 5 & 8MP Dome Deep Base - White |
Dimensions
| Dimensions (mm) | 111 x 111 x 95 |
|---|
