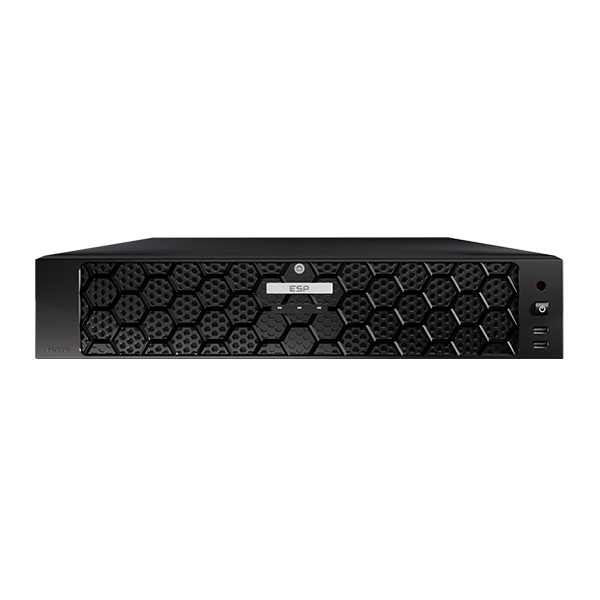

HDview H1C864R24TB IP 64CH NVR 24TB
Free Delivery
£
2,412
17
(Incl. VAT)
2 Years Warranty
IP 64CH NVR 24TB
About this product
About this product
The HDview H1C864R24TB is an IP 64CH NVR 24TB. Featuring 64 channel recording and 8MP resolution, it is built for dependable professional installation.
Key Features
- H.265 Video Compression for Efficient Storage
- Intelligent Features such as Line Cross Detection & Perimeter Intrusion Detection
- Continuous/Scheduled/Motion Detection/Intelligent Record Modes
- Remote Monitoring via APP
- 64 channel recording
-
Download
- H1C864R24TB Tech Sheet
£
2,412
17
Price
Technical Details
Specifications
Dimensions (mm)
448 x 442 x 93
Maximum Capacity
8 * 16TB
Weight (Kg)
>6 (excluding HDD)
Internal HDD
24TB
Warranty (Years)
2
Resolution
32MP, 16MP, 12MP, 8MP, 6MP, 5MP, 4MP
Power Consumption (W)
<50 (Without Hard Disk)
Operating Temperature (°C)
-10 to +50
Inputs
16
Outputs
10
PoE Ports
0
Video Input Channels
64
Input Channels (RCA)
1
Channels (RCA)
2
Display Video Output
2 x VGA, 2 x HDMI
USB Interface
2 x USB2.0 Front
Compatible Products
The range of 24/7 HDview 5MP and 8MP and Rekor IP 2MP Cameras
S4POE: 4 Port PoE Switch 60W
Removeable Power Supply
S8POE: 8 Port PoE Switch 88W
Hotswappable HDD Bay accessible via the front
S16POE: 16 Port PoE Switch 225W
Corridor Mode Screen (3 & 4)
Dimensions
Dimensions (mm)
448 x 442 x 93
Specifications
| Dimensions (mm) | 448 x 442 x 93 |
|---|---|
| Maximum Capacity | 8 * 16TB |
| Weight (Kg) | >6 (excluding HDD) |
| Internal HDD | 24TB |
| Warranty (Years) | 2 |
| Resolution | 32MP, 16MP, 12MP, 8MP, 6MP, 5MP, 4MP |
| Power Consumption (W) | <50 (Without Hard Disk) |
| Operating Temperature (°C) | -10 to +50 |
| Inputs | 16 |
| Outputs | 10 |
| PoE Ports | 0 |
| Video Input Channels | 64 |
| Input Channels (RCA) | 1 |
| Channels (RCA) | 2 |
| Display Video Output | 2 x VGA, 2 x HDMI |
| USB Interface | 2 x USB2.0 Front |
| Compatible Products | The range of 24/7 HDview 5MP and 8MP and Rekor IP 2MP Cameras |
| S4POE: 4 Port PoE Switch 60W | Removeable Power Supply |
| S8POE: 8 Port PoE Switch 88W | Hotswappable HDD Bay accessible via the front |
| S16POE: 16 Port PoE Switch 225W | Corridor Mode Screen (3 & 4) |
Dimensions
| Dimensions (mm) | 448 x 442 x 93 |
|---|
IP 64CH NVR 24TB features
HDview H1C864R24TB IP 64CH NVR 24TB
