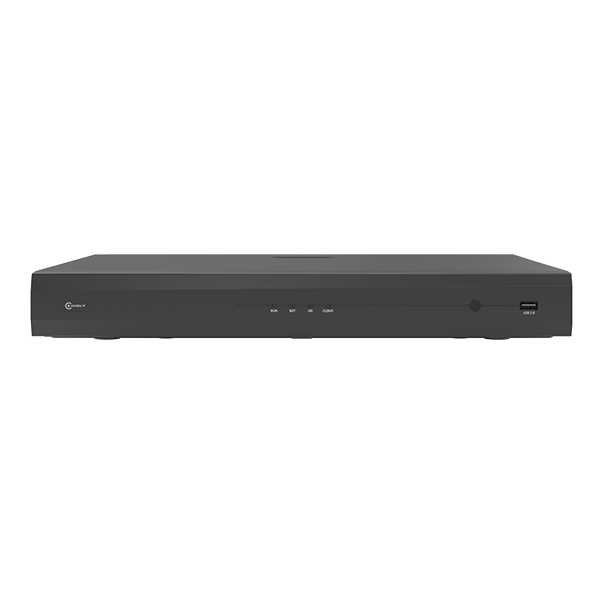

HDview HC816R12TB IP PoE 8MP 16CH NVR 12TB
Free Delivery
£
1,358
48
(Incl. VAT)
2 Years Warranty
IP PoE 8MP 16CH NVR 12TB
About this product
About this product
From ESP's CCTV range, the HDview HC816R12TB is a 16 channel 24/7 NVR that records up to 8MP, with a 12TB internal HDD (2 x SATA) and 16 PoE ports.
Key features
- 16 video input channels; recording resolution up to 8MP
- Internal HDD 12TB (2 x SATA); maximum capacity 10TB per disk
- 16 PoE ports (IEEE 802.3at & IEEE 802.3af); 30 W per port, 240 W total
- H.265 video compression for efficient storage
- Intelligent features such as line cross detection & perimeter intrusion detection
- Continuous/scheduled/motion detection/intelligent record modes
- Remote monitoring via APP; playback/record/remote view simultaneously
- HDMI output up to 4k; 1 x HDMI, 1 x VGA
Frequently asked questions
How many cameras can it record?
16 video input channels, with 16 channel sync playback.
How much storage is fitted?
A 12TB internal HDD (2 x SATA); the maximum capacity is 10TB per disk.
Can I view it remotely?
Yes: remote monitoring via APP.
How many PoE ports does it have?
16 PoE ports (IEEE 802.3at & IEEE 802.3af), with up to 30 W per port and 240 W in total.
Which cameras is it for?
The range of 24/7 HDview 5MP and 8MP and Rekor IP 2MP cameras; it also supports ONVIF (Profile S, G, T) cameras.
-
Download
- HC816R12TB Tech Sheet
£
1,358
48
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
315 x 380 x 53
Maximum Capacity
10TB (Per Disk)
Weight (Kg)
2.6
Warranty (Years)
2
Resolution
8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 960p, 720p, D1, 2CIF, CIF
Power Consumption (W)
<10 (Without Hard Disk)
Operating Temperature (°C)
-10 to +55
PoE Ports
16
Video Input Channels
16
Max. PoE Consumption Available (W)
30 (Per Port), 240 (Total)
Display Video Output
1 x HDMI, 1 x VGA
Display Split
1, 4, 6, 8 & 9
Sync Playback
16 Channel
USB Interface
1 x USB (2.0), 1 x USB (3.0)
Supplied
USB Mouse, Quickstart Guide, C13 Mains Cable
Compatible Products
The range of 24/7 HDview 5MP and 8MP and Rekor IP 2MP Cameras
Operating Voltage (V AC)
100 - 240
PoE Standards
IEEE 802.3at & IEEE 802.3af
Internal HDD
12TB (2 x SATA)
Relative Humidity Resistance (%)
≤ 90% RH (non-condensing)
Alarm Inputs
4
Alarm Outputs
1
Audio Output Channels (RCA)
1
Network Connection
1 RJ45 10M, 100M, 1000M self-adaptive Ethernet Interface
Accessories
IPIN1POE: 1 Channel POE Injector; IPSW4POE: 4 Channel POE Switch; IPSW8POE: 8 Channel POE Switch
Features
Corridor Mode Screen (3 & 4), FTP, Schedule, Event Screenshots, Supports ONVIF (Profile S, G, T) Cameras
Dimensions
Dimensions (mm)
315 x 380 x 53
Specifications
| Dimensions (mm) | 315 x 380 x 53 |
|---|---|
| Maximum Capacity | 10TB (Per Disk) |
| Weight (Kg) | 2.6 |
| Warranty (Years) | 2 |
| Resolution | 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 960p, 720p, D1, 2CIF, CIF |
| Power Consumption (W) | <10 (Without Hard Disk) |
| Operating Temperature (°C) | -10 to +55 |
| PoE Ports | 16 |
| Video Input Channels | 16 |
| Max. PoE Consumption Available (W) | 30 (Per Port), 240 (Total) |
| Display Video Output | 1 x HDMI, 1 x VGA |
| Display Split | 1, 4, 6, 8 & 9 |
| Sync Playback | 16 Channel |
| USB Interface | 1 x USB (2.0), 1 x USB (3.0) |
| Supplied | USB Mouse, Quickstart Guide, C13 Mains Cable |
| Compatible Products | The range of 24/7 HDview 5MP and 8MP and Rekor IP 2MP Cameras |
| Operating Voltage (V AC) | 100 - 240 |
| PoE Standards | IEEE 802.3at & IEEE 802.3af |
| Internal HDD | 12TB (2 x SATA) |
| Relative Humidity Resistance (%) | ≤ 90% RH (non-condensing) |
| Alarm Inputs | 4 |
| Alarm Outputs | 1 |
| Audio Output Channels (RCA) | 1 |
| Network Connection | 1 RJ45 10M, 100M, 1000M self-adaptive Ethernet Interface |
| Accessories | IPIN1POE: 1 Channel POE Injector; IPSW4POE: 4 Channel POE Switch; IPSW8POE: 8 Channel POE Switch |
| Features | Corridor Mode Screen (3 & 4), FTP, Schedule, Event Screenshots, Supports ONVIF (Profile S, G, T) Cameras |
