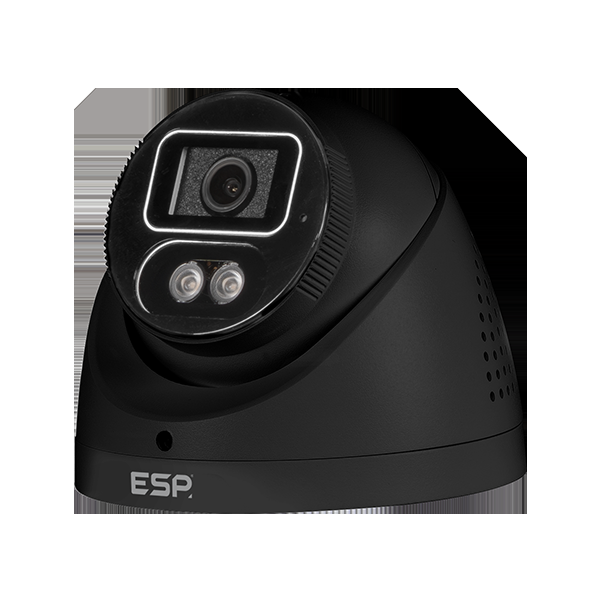

HDview HC828TB IP PoE 8MP 2.8mm Turret Camera Black
Free Delivery
£
129
48
(Incl. VAT)
2 Years Warranty
IP PoE 8MP 2.8mm Turret Camera Black
About this product
About this product
The HDview HC828TB, from ESP's CCTV range, is an 8MP (3840 x 2160) IP turret camera with a fixed 2.8mm lens, in black. It is a 24/7 camera with dual light: IR and intelligently activated white lights, each with a range of 30 m.
Key features
- 8MP (3840 x 2160), fixed 2.8mm lens, 98.7° horizontal viewing angle
- Dual light: IR to 30 m (850 nm) and intelligently activated white lights to 30 m
- Built-in microphone and speaker
- Motion detection, ultra motion detection, tampering alarm and audio detection; supports intelligent detection functionality
- H.265 compression; ONVIF Profile S, Profile G and Profile T
- MicroSD up to 512 GB
- PoE and 12V DC inputs; power consumption 11.5 W
- Suitable for external applications
Frequently asked questions
What resolution and lens does the HC828TB have?
8MP (3840 x 2160) with a fixed 2.8mm lens; the viewing angle is 98.7° (H), 53.6° (V), 113.4° (D).
Does it have white light?
Yes. It is a 24/7 camera with dual light: IR to 30 m and intelligently activated white lights to 30 m.
How is it powered?
By PoE or a 12V DC input; power consumption is 11.5 W.
Which recorders does it work with?
HC & H1C series HDview IP 24/7 NVRs.
What is its IP rating?
IP67.
-
Download
- HC828TB Tech Sheet
£
129
48
FAST delivery by Order within
Price
Technical Details
Specifications
Storage Type
Micro SD, up to 512 GB
Materials
Powder Coated Aluminium Alloy & Plastic
Weight (Kg)
0.47
Warranty (Years)
2
Operating Voltage (V DC)
12 ± 25%
Power Consumption (W)
11.5
Power Consumption (A)
0.958333
Other Power Sources
PoE (IEEE802.3af/at)
Sensor Size (")
1/2.7"
Lens size (mm)
2.8
Lens Type
Fixed
Electronic Shutter Type
Auto / Manual
Speed (sec/°)
1 to 1/100000
Frames Per Second (FPS)
30 Max.
Maximum IR Distance (m)
30
IR Wavelength (nm)
850
Microphone Supported
Built-in
Speaker Supported
Built-in
White Light Range (m)
30
Day/Night
Dual Light (IR & White Light)
Hardware Reset Button
Yes
Basic Detection
Motion detection, Ultra motion detection, Tampering alarm, Audio detection
ONVIF Compliant
Yes; Profile S, Profile G, Profile T
Supplied
1 x QSG, 1 x camera, 1 x installation pack & 1 x mounting sticker
Compatible Products
For use with HC & H1C series of HDview IP 24/7 NVRs
GTIN
5061064591441
Commodity Code
8525890000
Dimensions (mm)
110.5 (Dia.) x 97.5
Colour
Black
Effective Pixels
3840 x 2160 (8MP)
Viewing Angle (°)
98.7 (H), 53.6 (V), 113.4 (D)
Ingress Protection
IP67
Operating Temperature (°C)
-30 to +60
Interface
1 x RJ45 female (10/100M Base-TX Ethernet), 1 x DC female (2.1x5.5mm)
Specifications
| Storage Type | Micro SD, up to 512 GB |
|---|---|
| Materials | Powder Coated Aluminium Alloy & Plastic |
| Weight (Kg) | 0.47 |
| Warranty (Years) | 2 |
| Operating Voltage (V DC) | 12 ± 25% |
| Power Consumption (W) | 11.5 |
| Power Consumption (A) | 0.958333 |
| Other Power Sources | PoE (IEEE802.3af/at) |
| Sensor Size (") | 1/2.7" |
| Lens size (mm) | 2.8 |
| Lens Type | Fixed |
| Electronic Shutter Type | Auto / Manual |
| Speed (sec/°) | 1 to 1/100000 |
| Frames Per Second (FPS) | 30 Max. |
| Maximum IR Distance (m) | 30 |
| IR Wavelength (nm) | 850 |
| Microphone Supported | Built-in |
| Speaker Supported | Built-in |
| White Light Range (m) | 30 |
| Day/Night | Dual Light (IR & White Light) |
| Hardware Reset Button | Yes |
| Basic Detection | Motion detection, Ultra motion detection, Tampering alarm, Audio detection |
| ONVIF Compliant | Yes; Profile S, Profile G, Profile T |
| Supplied | 1 x QSG, 1 x camera, 1 x installation pack & 1 x mounting sticker |
| Compatible Products | For use with HC & H1C series of HDview IP 24/7 NVRs |
| GTIN | 5061064591441 |
| Commodity Code | 8525890000 |
| Dimensions (mm) | 110.5 (Dia.) x 97.5 |
| Colour | Black |
| Effective Pixels | 3840 x 2160 (8MP) |
| Viewing Angle (°) | 98.7 (H), 53.6 (V), 113.4 (D) |
| Ingress Protection | IP67 |
| Operating Temperature (°C) | -30 to +60 |
| Interface | 1 x RJ45 female (10/100M Base-TX Ethernet), 1 x DC female (2.1x5.5mm) |
