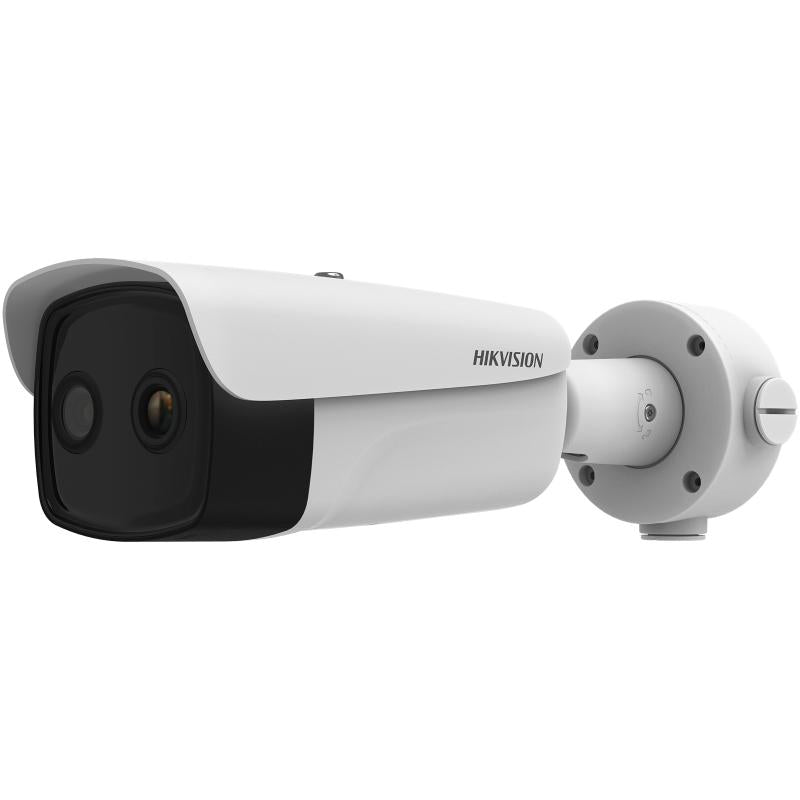

HIKMICRO HM-TD2638-15/G1/T3Y Bi-spectrum Thermal Bullet Camera, 384 × 288 Thermal, 15.4mm
Free Delivery
£
2,449
97
(Incl. VAT)
RRP: £2,939.96
About this product
The HM-TD2638-15/G1/T3Y is a thermal & optical bi-spectrum network bullet camera for IP CCTV systems, pairing a 384 × 288 thermal sensor (12 μm, NETD ≤ 20 mK) with a 2688 × 1520 optical channel. It detects humans and vehicles with the GUANLAN Large-Scale AI Model, raises temperature exception alarms from -20°C to 150°C, and supports fire detection and smoking detection.
Key features
- Thermal channel: 384 × 288 resolution, 12 μm, VOx UFPA, NETD ≤ 20 mK (25°C, F1.0), 15.4 mm lens
- Optical channel: 1/2.7" Progressive Scan CMOS, 2688 × 1520, 8 mm lens
- Human/vehicle detection with the GUANLAN Large-Scale AI Model; VCA range 195 m for humans and 450 m for vehicles
- Temperature exception alarm, -20°C to 150°C (-4°F to 302°F), ± 8°C (± 14.4°F)
- Fire detection (up to 10 fire points) and smoking detection (up to 10 smoking points)
- IR distance up to 75 m on the optical channel, with intensity and angle automatically adjusted
- Bi-Spectrum Image Fusion and Picture In Picture display
- IP67, IK10-rated and NEMA 4X anti-corrosion housing with TVS 4000V lightning protection
Frequently asked questions
What is the thermal resolution of the HM-TD2638-15/G1/T3Y?
The thermal module is 384 × 288 resolution with 12 μm pixel pitch, a VOx UFPA sensor and NETD ≤ 20 mK (25°C, F1.0).
Can it measure temperature?
Yes. It offers 3 temperature measurement rule types (point, area, line), 21 rules in total, over -20 °C to 150 °C (-4 °F to 302 °F) with accuracy of ± 8 °C (±14.4 °F).
How far can it detect people and vehicles?
The VCA range is 195 m for humans and 450 m for vehicles.
Can it be powered over PoE?
Yes. It supports PoE (802.3af, class 3), with max. 11.8W consumption on PoE. It can also run from 24 VAC ± 25% or 12 VDC ± 25%.
Does it detect fire and smoking?
Yes. Fire detection covers up to 10 fire points, and smoking detection up to 10 smoking points.
Is it suitable for harsh outdoor sites?
It is rated for a working temperature of -40°C to 70°C, with an IP67, IK10-rated and NEMA 4X anti-corrosion housing and TVS 4000V lightning protection.
£
2,449
97
RRP: £2,939.96
Save £489.99
Price
Technical Details
Specifications
Brand
HIKMICRO
Model
HM-TD2638-15/G1/T3Y
Manufacturer Part Number (MPN)
HM-TD2638-15/G1/T3Y
Thermal Image Sensor
Vanadium Oxide Uncooled Focal Plane Arrays
Thermal Resolution
384 x 288
Pixel Pitch
12 μm
NETD
≤ 20 mK (@25° C,F# = 1.0)
Thermal Focal Length
15.4 mm
IFOV
0.78 mrad
Thermal Aperture
F1.0
Thermal Field Of View
17° × 12.8° (H × V)
Min. Focusing Distance
5 m
Digital Zoom
×2, ×4, ×8
Optical Image Sensor
1/2.7" Progressive Scan CMOS
Optical Resolution
2688 × 1520
Optical Min. Illumination
0.0089Lux @(F1.6,AGC ON), 0 Lux with IR
Optical Field Of View
39.4° × 22° (H × V)
Optical Focal Length
8 mm
Shutter Speed
1 s to 1/100,000 s
Day & Night Mode
IR Cut Filter with Auto Switch
WDR
120 dB
Bi-Spectrum Image Fusion
Display the details of optical channel on thermal channel
Picture In Picture
Display partial image of thermal channel on the full screen of optical channel
Target Coloration
Yes. Supported in white hot and black hot mode.
IR Distance
Up to 75 m
IR Intensity And Angle
Automatically adjusted
VCA
4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
Temperature Measurement
3 temperature measurement rule types (point, area, line), 21 rules in total
Temperature Range
-20 °C to 150 °C (-4 °F to 302 °F)
Temperature Accuracy
± 8 °C (±14.4 °F)
Fire Detection
up to 10 fire points detectable
Smoking Detection
Up to 10 smoking points detected
Video Compression
Main Stream: H.265/H.264; Sub-Stream: H.265/H.264/MJPEG
Color Palettes
17 types (White hot, Black hot, Fusion 1, Rainbow, Fusion 2, Ironbow 1, Ironbow 2, Sepia, Color 1, Color 2, Ice fire, Rain, Red hot, Green hot, Dark blue, Winter, Summer)
Network Storage
MicroSD/SDHC/SDXC card (up to 512 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
API
ISAPI, ISUP, HIKVISION SDK, and third-party management platform, Open Network Video Interface, ONVIF (Profile S, Profile G, Profile T, Profile M), OTAP
Simultaneous Live View
Up to 20 channels
User/Host Level
Up to 32 users, 3 levels: Administrator, Operator, User
Client
iVMS-4200, Hik-Connect
Alarm Input
2, alarm input (0-5 VDC)
Alarm Output
2-ch, relay outputs (alarm response actions configurable)
Alarm Action
SD recording/Relay output/Smart capture/FTP upload/Email linkage
Audio Input
1, 3.5 mm Mic in/Line in interface
Audio Output
Linear level, impedance: 600 Ω
Communication Interface
1, RJ45 10 M/100 M Self-adaptive Ethernet interface; 1, RS-485 interface (half duplex)
Analog Output
1.0V [p-p]/75Ω, PAL/NTSC/BNC
Power Supply
24 VAC ± 25%, 12 VDC ± 25%, 24VDC two-core terminal block; PoE (802.3af, class 3)
Power Consumption
24 VAC ± 25%: 0.33 A to 0.55 A, max. 12.1W; 12 VDC ± 25%: 0.8 A to 1.33 A, max. 11.3W; PoE (802.3af, class 3): 36 V to 57 V, 0.33 A to 0.21 A, max. 11.8W
Working Temperature/Humidity
Temperature: -40°C to 70°C (-40°F to 158°F); Humidity: 95% or less
Protection Level
IP67 Standard; TVS 4000V lightning protection, surge protection, voltage transient protection; IK10-rated housing; NEMA 4X anti-corrosion housing
Protection
IP67: IEC 60529-2013; IK10: IEC 62262-2002
Anti-Corrosion Protection
NEMA 4X (NEMA 250-2018)
Dimensions
376.1 mm × 119.1 mm × 118.1 mm (14.81" × 4.68" × 4.65")
Weight
1.82 kg (4.01 lb)
VCA Range For Humans
195 m
VCA Range For Vehicles
450 m
Specifications
| Brand | HIKMICRO |
|---|---|
| Model | HM-TD2638-15/G1/T3Y |
| Manufacturer Part Number (MPN) | HM-TD2638-15/G1/T3Y |
| Thermal Image Sensor | Vanadium Oxide Uncooled Focal Plane Arrays |
| Thermal Resolution | 384 x 288 |
| Pixel Pitch | 12 μm |
| NETD | ≤ 20 mK (@25° C,F# = 1.0) |
| Thermal Focal Length | 15.4 mm |
| IFOV | 0.78 mrad |
| Thermal Aperture | F1.0 |
| Thermal Field Of View | 17° × 12.8° (H × V) |
| Min. Focusing Distance | 5 m |
| Digital Zoom | ×2, ×4, ×8 |
| Optical Image Sensor | 1/2.7" Progressive Scan CMOS |
| Optical Resolution | 2688 × 1520 |
| Optical Min. Illumination | 0.0089Lux @(F1.6,AGC ON), 0 Lux with IR |
| Optical Field Of View | 39.4° × 22° (H × V) |
| Optical Focal Length | 8 mm |
| Shutter Speed | 1 s to 1/100,000 s |
| Day & Night Mode | IR Cut Filter with Auto Switch |
| WDR | 120 dB |
| Bi-Spectrum Image Fusion | Display the details of optical channel on thermal channel |
| Picture In Picture | Display partial image of thermal channel on the full screen of optical channel |
| Target Coloration | Yes. Supported in white hot and black hot mode. |
| IR Distance | Up to 75 m |
| IR Intensity And Angle | Automatically adjusted |
| VCA | 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total. |
| Temperature Measurement | 3 temperature measurement rule types (point, area, line), 21 rules in total |
| Temperature Range | -20 °C to 150 °C (-4 °F to 302 °F) |
| Temperature Accuracy | ± 8 °C (±14.4 °F) |
| Fire Detection | up to 10 fire points detectable |
| Smoking Detection | Up to 10 smoking points detected |
| Video Compression | Main Stream: H.265/H.264; Sub-Stream: H.265/H.264/MJPEG |
| Color Palettes | 17 types (White hot, Black hot, Fusion 1, Rainbow, Fusion 2, Ironbow 1, Ironbow 2, Sepia, Color 1, Color 2, Ice fire, Rain, Red hot, Green hot, Dark blue, Winter, Summer) |
| Network Storage | MicroSD/SDHC/SDXC card (up to 512 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) |
| API | ISAPI, ISUP, HIKVISION SDK, and third-party management platform, Open Network Video Interface, ONVIF (Profile S, Profile G, Profile T, Profile M), OTAP |
| Simultaneous Live View | Up to 20 channels |
| User/Host Level | Up to 32 users, 3 levels: Administrator, Operator, User |
| Client | iVMS-4200, Hik-Connect |
| Alarm Input | 2, alarm input (0-5 VDC) |
| Alarm Output | 2-ch, relay outputs (alarm response actions configurable) |
| Alarm Action | SD recording/Relay output/Smart capture/FTP upload/Email linkage |
| Audio Input | 1, 3.5 mm Mic in/Line in interface |
| Audio Output | Linear level, impedance: 600 Ω |
| Communication Interface | 1, RJ45 10 M/100 M Self-adaptive Ethernet interface; 1, RS-485 interface (half duplex) |
| Analog Output | 1.0V [p-p]/75Ω, PAL/NTSC/BNC |
| Power Supply | 24 VAC ± 25%, 12 VDC ± 25%, 24VDC two-core terminal block; PoE (802.3af, class 3) |
| Power Consumption | 24 VAC ± 25%: 0.33 A to 0.55 A, max. 12.1W; 12 VDC ± 25%: 0.8 A to 1.33 A, max. 11.3W; PoE (802.3af, class 3): 36 V to 57 V, 0.33 A to 0.21 A, max. 11.8W |
| Working Temperature/Humidity | Temperature: -40°C to 70°C (-40°F to 158°F); Humidity: 95% or less |
| Protection Level | IP67 Standard; TVS 4000V lightning protection, surge protection, voltage transient protection; IK10-rated housing; NEMA 4X anti-corrosion housing |
| Protection | IP67: IEC 60529-2013; IK10: IEC 62262-2002 |
| Anti-Corrosion Protection | NEMA 4X (NEMA 250-2018) |
| Dimensions | 376.1 mm × 119.1 mm × 118.1 mm (14.81" × 4.68" × 4.65") |
| Weight | 1.82 kg (4.01 lb) |
| VCA Range For Humans | 195 m |
| VCA Range For Vehicles | 450 m |
