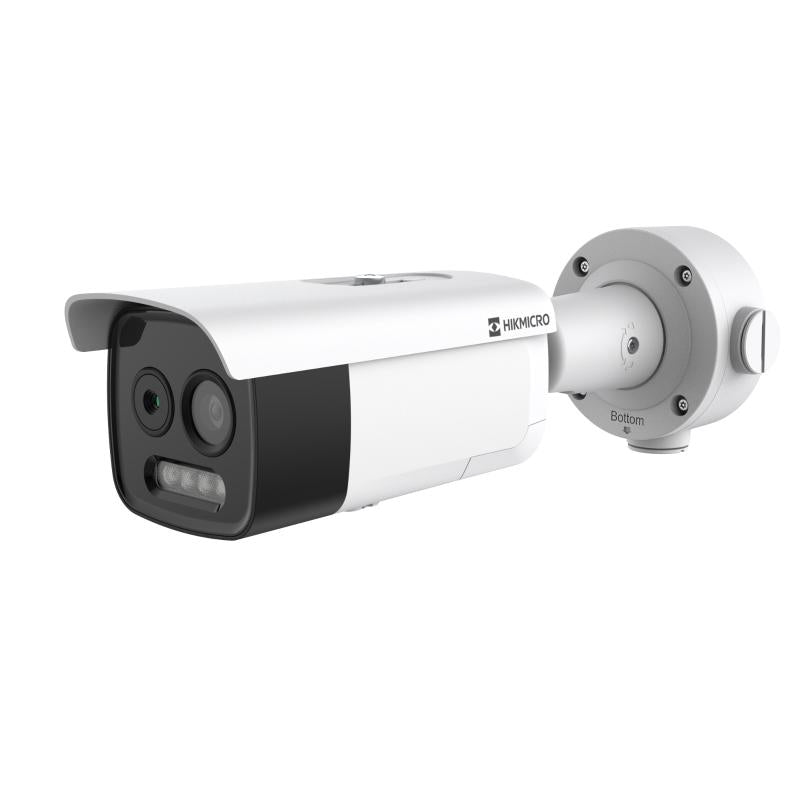

HIKMICRO HM-TD2628T-3/G1/T3A Bi-spectrum Thermography Network Bullet Camera, 256 × 192 Thermal, 5MP Optical
Free Delivery
£
570
19
(Incl. VAT)
RRP: £684.23
About this product
The HIKMICRO HM-TD2628T-3/G1/T3A is a bi-spectrum thermography network bullet camera that pairs a 256 × 192 thermal channel with a 5MP optical channel. It offers a temperature exception alarm for fire prevention from -20 °C to 650 °C, supports a fire and smoke detection algorithm, and provides ultra low fire and smoke false alarm with the GUANLAN Large-Scale AI Model.
Key features
- 256 × 192 thermal resolution, 12 μm, VOx UFPA, NETD ≤25 mK (25°C, F1.0)
- 5MP (2688 × 1944) optical channel with a 4.3 mm lens and 120 dB WDR
- Temperature exception alarm from -20 °C to 650 °C, accuracy Max (±2°C, ±2 %)
- Fire detection of up to 10 fire points, smoking detection of up to 10 smoking points, and smoke detection on the optical channel
- Smart hybrid light: white light, IR and smart mode, with IR distance up to 30m and white light range up to 30 m
- 4 VCA rule types (line crossing, intrusion, region entrance and region exiting), up to 8 VCA rules in total
- IP67 Standard and IK10 protection, with TVS 6000V lightning protection
Frequently asked questions
What temperature range can it measure?
Its temperature range is -20 °C to 650 °C (-4 °F to 1202 °F), with accuracy of Max (±2°C, ±2 %). It supports 3 temperature measurement rule types (point, area, line), 21 rules in total.
How far can it see in the dark?
IR distance is up to 30m and white light range is up to 30 m. Minimum illumination is 0.0089Lux @(F1.6,AGC ON) and 0 Lux with IR.
What detection ranges does it have for people and vehicles?
VCA range is 36 m for humans and 90 m for vehicles.
Can it be installed outdoors?
It is rated IP67 Standard and IK10 and works at a temperature of -40°C to 65°C (-40°F to 149°F) with humidity of 95% or less.
Which apps and storage does it work with?
It works with the iVMS-4200 and Hik-Connect clients, and records to a MicroSD/SDHC/SDXC card (up to 512 G) or NAS (NFS, SMB/CIFS).
£
570
19
RRP: £684.23
Save £114.04
Price
Technical Details
Specifications
Brand
HIKMICRO
Model
HM-TD2628T-3/G1/T3A
Manufacturer Part Number (MPN)
HM-TD2628T-3/G1/T3A
Thermal Image Sensor
Vanadium Oxide Uncooled Focal Plane Arrays
Thermal Resolution
256 × 192
Pixel Pitch
12 μm
Spectral Range
8 μm to 14 μm
NETD
≤25 mK (25°C, F1.0)
Thermal Focal Length
3.6mm
Thermal Field Of View
50° × 37.3° (H × V)
Thermal Aperture
F1.0
Digital Zoom
×2, ×4
Optical Image Sensor
1/2.7" Progressive Scan CMOS
Optical Resolution
5MP, 2688 × 1944
Min. Illumination
0.0089Lux @(F1.6,AGC ON) ,0 Lux with IR
Optical Focal Length
4.3 mm
Optical Field Of View
84.0° × 43.1° (H × V)
Optical Aperture (Range)
F1.6
WDR
120 dB
Light Supplement
Hybrid (IR, White light or Smart mode)
IR Distance
Up to 30m
White Light Range
Up to 30 m
Temperature Measurement
3 temperature measurement rule types (point, area, line), 21 rules in total
Temperature Range
-20 °C to 650 °C (-4 °F to 1202 °F)
Temperature Accuracy
Max (±2°C, ±2 %)
VCA
4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total
VCA Range For Humans
36 m
VCA Range For Vehicles
90 m
Video Compression
Main Stream: H.265/H.264; Sub-Stream: H.265/H.264/MJPEG
Color Palettes
17 types
Network Storage
MicroSD/SDHC/SDXC card (up to 512 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
Simultaneous Live View
Up to 20 channels
Client
iVMS-4200, Hik-Connect
Alarm Input
2, alarm input (0-5 VDC)
Alarm Output
2, alarm output (alarm response actions configurable)
Audio Input
1, 3.5 mm Mic in/Line in interface
Communication Interface
1, RJ45 10 M/100 M Self-adaptive Ethernet interface; 1, RS-485 interface (half duplex)
Power Supply
12 VDC ± 25%, 24 VDC ± 25% two-core terminal block; PoE (802.3at, class 4)
Power Consumption
12 VDC ± 25%: 0.85A to 1.42 A, max. 12.8W; PoE (802.3at, class 4): 42.5 V to 57 V, 0.22 A to 0.3 A, max. 12.8W
Working Temperature/Humidity
Temperature: -40°C to 65°C (-40°F to 149°F); Humidity: 95% or less
Protection Level
IP67 Standard, IK10; TVS 6000V lightning protection, surge protection, voltage transient protection
Dimensions
349.1 mm × 113 mm × 105mm
Specifications
| Brand | HIKMICRO |
|---|---|
| Model | HM-TD2628T-3/G1/T3A |
| Manufacturer Part Number (MPN) | HM-TD2628T-3/G1/T3A |
| Thermal Image Sensor | Vanadium Oxide Uncooled Focal Plane Arrays |
| Thermal Resolution | 256 × 192 |
| Pixel Pitch | 12 μm |
| Spectral Range | 8 μm to 14 μm |
| NETD | ≤25 mK (25°C, F1.0) |
| Thermal Focal Length | 3.6mm |
| Thermal Field Of View | 50° × 37.3° (H × V) |
| Thermal Aperture | F1.0 |
| Digital Zoom | ×2, ×4 |
| Optical Image Sensor | 1/2.7" Progressive Scan CMOS |
| Optical Resolution | 5MP, 2688 × 1944 |
| Min. Illumination | 0.0089Lux @(F1.6,AGC ON) ,0 Lux with IR |
| Optical Focal Length | 4.3 mm |
| Optical Field Of View | 84.0° × 43.1° (H × V) |
| Optical Aperture (Range) | F1.6 |
| WDR | 120 dB |
| Light Supplement | Hybrid (IR, White light or Smart mode) |
| IR Distance | Up to 30m |
| White Light Range | Up to 30 m |
| Temperature Measurement | 3 temperature measurement rule types (point, area, line), 21 rules in total |
| Temperature Range | -20 °C to 650 °C (-4 °F to 1202 °F) |
| Temperature Accuracy | Max (±2°C, ±2 %) |
| VCA | 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total |
| VCA Range For Humans | 36 m |
| VCA Range For Vehicles | 90 m |
| Video Compression | Main Stream: H.265/H.264; Sub-Stream: H.265/H.264/MJPEG |
| Color Palettes | 17 types |
| Network Storage | MicroSD/SDHC/SDXC card (up to 512 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) |
| Simultaneous Live View | Up to 20 channels |
| Client | iVMS-4200, Hik-Connect |
| Alarm Input | 2, alarm input (0-5 VDC) |
| Alarm Output | 2, alarm output (alarm response actions configurable) |
| Audio Input | 1, 3.5 mm Mic in/Line in interface |
| Communication Interface | 1, RJ45 10 M/100 M Self-adaptive Ethernet interface; 1, RS-485 interface (half duplex) |
| Power Supply | 12 VDC ± 25%, 24 VDC ± 25% two-core terminal block; PoE (802.3at, class 4) |
| Power Consumption | 12 VDC ± 25%: 0.85A to 1.42 A, max. 12.8W; PoE (802.3at, class 4): 42.5 V to 57 V, 0.22 A to 0.3 A, max. 12.8W |
| Working Temperature/Humidity | Temperature: -40°C to 65°C (-40°F to 149°F); Humidity: 95% or less |
| Protection Level | IP67 Standard, IK10; TVS 6000V lightning protection, surge protection, voltage transient protection |
| Dimensions | 349.1 mm × 113 mm × 105mm |
