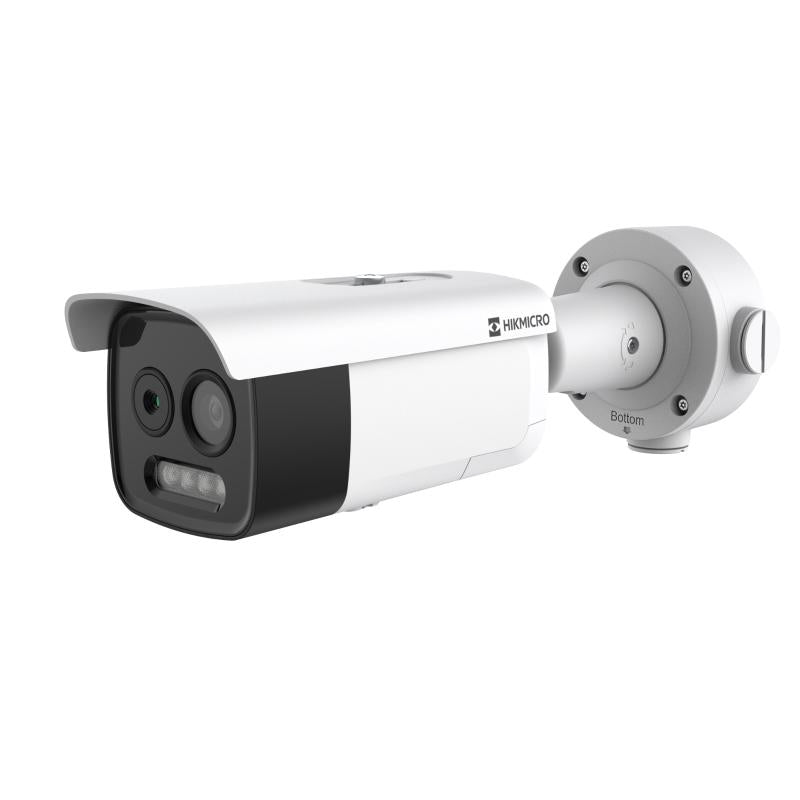

HIKMICRO HM-TD2628T-7/G1/T3A Bi-spectrum Thermography Network Bullet Camera, 256 × 192 Thermal, 5MP Optical
Free Delivery
£
588
27
(Incl. VAT)
RRP: £705.92
About this product
The HIKMICRO HM-TD2628T-7/G1/T3A is a bi-spectrum thermography network bullet camera pairing a 256 × 192 thermal module (12 μm, VOx UFPA, NETD ≤25 mK (25°C, F1.0)) with a 5MP optical module. It measures temperature from -20 °C to 650 °C with a temperature exception alarm for fire prevention, and supports fire, smoke and smoking detection algorithms.
Key features
- Thermal module: 256 × 192 resolution, 12 μm pixel pitch, Vanadium Oxide Uncooled Focal Plane Arrays
- NETD ≤25 mK (25°C, F1.0)
- Optical module: 5MP, 2688 × 1944, 1/2.7" Progressive Scan CMOS
- Temperature range -20 °C to 650 °C, accuracy Max (±2°C, ±2 %)
- Fire detection with up to 10 fire points detectable; smoke detection on the optical channel
- Hybrid light supplement (IR, white light or smart mode): IR distance up to 60m
- 4 VCA rule types (line crossing, intrusion, region entrance, region exiting), up to 8 VCA rules in total
- IP67 and IK10 protection, with TVS 6000V lightning protection
Frequently asked questions
What temperature range does the HIKMICRO HM-TD2628T-7/G1/T3A measure?
-20 °C to 650 °C (-4 °F to 1202 °F), with temperature accuracy of Max (±2°C, ±2 %).
Can the HM-TD2628T-7/G1/T3A detect fire and smoke?
Yes. Fire detection has up to 10 fire points detectable, smoke detection works on the optical channel, and a temperature exception alarm supports fire prevention.
How far does the HM-TD2628T-7/G1/T3A see at night?
Its hybrid light supplement (IR, white light or smart mode) gives an IR distance of up to 60m, and the white light range is up to 60 m.
Where does the HM-TD2628T-7/G1/T3A store recordings?
On a MicroSD/SDHC/SDXC card (up to 512 G) or on NAS (NFS, SMB/CIFS), with Auto Network Replenishment (ANR).
What protection rating does the HM-TD2628T-7/G1/T3A have?
It is rated IP67 Standard and IK10, with a working temperature of -40°C to 65°C (-40°F to 149°F) and humidity of 95% or less.
£
588
27
RRP: £705.92
Save £117.65
Price
Technical Details
Specifications
Brand
HIKMICRO
Model
HM-TD2628T-7/G1/T3A
Manufacturer Part Number (MPN)
HM-TD2628T-7/G1/T3A
Thermal Image Sensor
Vanadium Oxide Uncooled Focal Plane Arrays
Thermal Resolution
256 × 192
Pixel Pitch
12 μm
Spectral Range
8 μm to 14 μm
NETD
≤25 mK (25°C, F1.0)
Thermal Focal Length
6.9mm
Thermal Field Of View
24.9° × 18.7° (H × V)
Thermal Aperture
F1.0
Optical Image Sensor
1/2.7" Progressive Scan CMOS
Optical Resolution
5MP, 2688 × 1944
Optical Min. Illumination
0.0089Lux @(F1.6,AGC ON), 0 Lux with IR
Optical Focal Length
8 mm
Optical Field Of View
39.4° × 22° (H × V)
Optical Aperture (Range)
F1.6
WDR
120 dB
Light Supplement
Hybrid (IR, White light or Smart mode)
IR Distance
Up to 60m
White Light Range
Up to 60 m
VCA
4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total
Temperature Measurement
3 temperature measurement rule types (point, area, line), 21 rules in total
Temperature Range
-20 °C to 650 °C (-4 °F to 1202 °F)
Temperature Accuracy
Max (±2°C, ±2 %)
Fire Detection
Up to 10 fire points detectable
Smoking Detection
Up to 10 smoking points detected
Smoke Detection
Support smoke detection on optical channel
Main Stream (Thermal)
25 fps (1280 × 720, 704 × 576, 640 × 512, 320 × 240)
Video Compression
Main Stream: H.265/H.264; Sub-Stream: H.265/H.264/MJPEG
Color Palettes
17 types
Network Storage
MicroSD/SDHC/SDXC card (up to 512 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
Client
iVMS-4200, Hik-Connect
Alarm Input
2, alarm input (0-5 VDC)
Alarm Output
2, alarm output (alarm response actions configurable)
Communication Interface
1, RJ45 10 M/100 M Self-adaptive Ethernet interface; 1, RS-485 interface (half duplex)
Power Supply
12 VDC ± 25%, 24 VDC ± 25% two-core terminal block; PoE (802.3at, class 4)
Power Consumption
12 VDC ± 25%: 1A to 1.7 A, max. 16W; PoE (802.3at, class 4): 42.5 V to 57 V, 0.28 A to 0.37 A, max. 16W
Working Temperature/Humidity
Temperature: -40°C to 65°C (-40°F to 149°F); Humidity: 95% or less
Protection Level
IP67 Standard, IK10; TVS 6000V lightning protection, surge protection, voltage transient protection
Dimensions
349.1 mm × 113 mm × 105mm
Weight
1710 g
VCA Range For Humans
84 m
VCA Range For Vehicles
210 m
Specifications
| Brand | HIKMICRO |
|---|---|
| Model | HM-TD2628T-7/G1/T3A |
| Manufacturer Part Number (MPN) | HM-TD2628T-7/G1/T3A |
| Thermal Image Sensor | Vanadium Oxide Uncooled Focal Plane Arrays |
| Thermal Resolution | 256 × 192 |
| Pixel Pitch | 12 μm |
| Spectral Range | 8 μm to 14 μm |
| NETD | ≤25 mK (25°C, F1.0) |
| Thermal Focal Length | 6.9mm |
| Thermal Field Of View | 24.9° × 18.7° (H × V) |
| Thermal Aperture | F1.0 |
| Optical Image Sensor | 1/2.7" Progressive Scan CMOS |
| Optical Resolution | 5MP, 2688 × 1944 |
| Optical Min. Illumination | 0.0089Lux @(F1.6,AGC ON), 0 Lux with IR |
| Optical Focal Length | 8 mm |
| Optical Field Of View | 39.4° × 22° (H × V) |
| Optical Aperture (Range) | F1.6 |
| WDR | 120 dB |
| Light Supplement | Hybrid (IR, White light or Smart mode) |
| IR Distance | Up to 60m |
| White Light Range | Up to 60 m |
| VCA | 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total |
| Temperature Measurement | 3 temperature measurement rule types (point, area, line), 21 rules in total |
| Temperature Range | -20 °C to 650 °C (-4 °F to 1202 °F) |
| Temperature Accuracy | Max (±2°C, ±2 %) |
| Fire Detection | Up to 10 fire points detectable |
| Smoking Detection | Up to 10 smoking points detected |
| Smoke Detection | Support smoke detection on optical channel |
| Main Stream (Thermal) | 25 fps (1280 × 720, 704 × 576, 640 × 512, 320 × 240) |
| Video Compression | Main Stream: H.265/H.264; Sub-Stream: H.265/H.264/MJPEG |
| Color Palettes | 17 types |
| Network Storage | MicroSD/SDHC/SDXC card (up to 512 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) |
| Client | iVMS-4200, Hik-Connect |
| Alarm Input | 2, alarm input (0-5 VDC) |
| Alarm Output | 2, alarm output (alarm response actions configurable) |
| Communication Interface | 1, RJ45 10 M/100 M Self-adaptive Ethernet interface; 1, RS-485 interface (half duplex) |
| Power Supply | 12 VDC ± 25%, 24 VDC ± 25% two-core terminal block; PoE (802.3at, class 4) |
| Power Consumption | 12 VDC ± 25%: 1A to 1.7 A, max. 16W; PoE (802.3at, class 4): 42.5 V to 57 V, 0.28 A to 0.37 A, max. 16W |
| Working Temperature/Humidity | Temperature: -40°C to 65°C (-40°F to 149°F); Humidity: 95% or less |
| Protection Level | IP67 Standard, IK10; TVS 6000V lightning protection, surge protection, voltage transient protection |
| Dimensions | 349.1 mm × 113 mm × 105mm |
| Weight | 1710 g |
| VCA Range For Humans | 84 m |
| VCA Range For Vehicles | 210 m |
