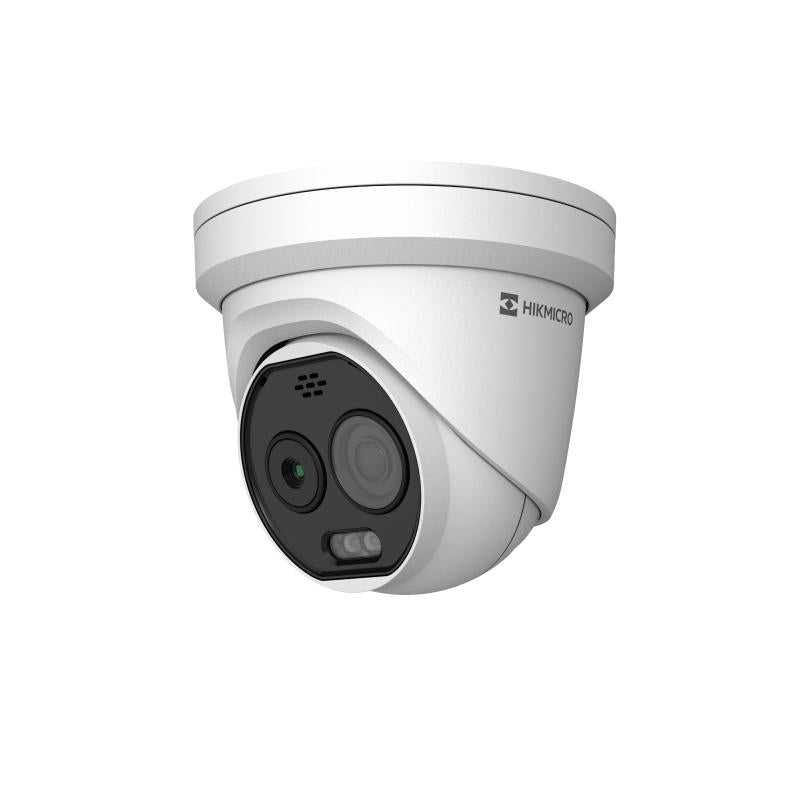

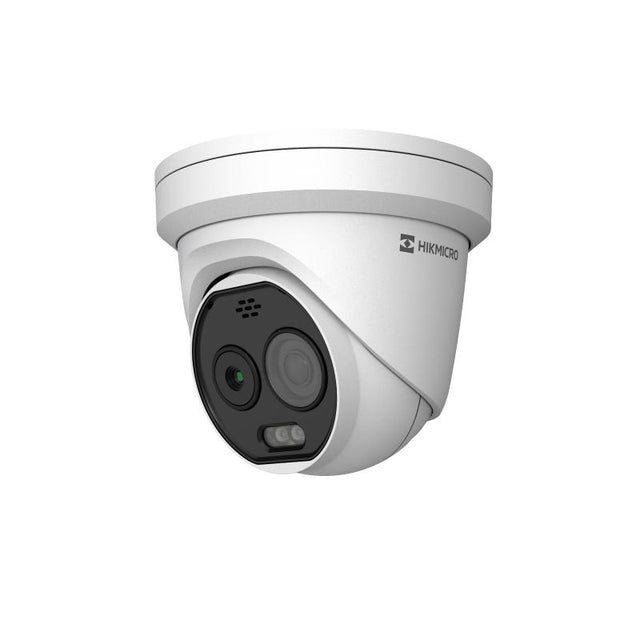

HIKMICRO HM-TD1228T-2/G1/T3A Bi-spectrum Thermography Network Turret Camera, 256 × 192 Thermal, 5MP Optical
Free Delivery
£
624
41
(Incl. VAT)
RRP: £749.29
About this product
The HIKMICRO HM-TD1228T-2/G1/T3A is a bi-spectrum thermography network turret camera that pairs a 256 × 192 thermal sensor with a 5MP optical sensor, for fire detection and human/vehicle detection on IP CCTV systems. It raises a temperature exception alarm from -20 °C to 650 °C, Max. (± 2 °C, ± 2%), detects fire, smoking and smoke, and uses the GUANLAN Large-Scale AI Model for extended human/vehicle detection distance with ultra low false alarm.
Key features
- Thermal: 256 × 192 resolution, 12 μm, VOx UFPA, NETD ≤ 25mK (25°C, F1.0)
- Optical: 1/2.7" Progressive Scan CMOS, 5MP, 2688 × 1944
- Temperature exception alarm for fire prevention, -20 °C to 650 °C, Max. (± 2 °C, ± 2%)
- Fire detection, up to 10 fire points detectable; up to 10 smoking points detected; smoke detection on optical channel
- GUANLAN Large-Scale AI Model for extended human/vehicle detection distance and ultra low false alarm
- Smart hybrid light: white light, IR and smart mode, IR distance up to 30m
- Bi-spectrum image fusion and picture in picture
- IP67, with TVS 6000V lightning protection
Frequently asked questions
What does bi-spectrum mean on the HM-TD1228T-2/G1/T3A?
It has two imaging channels: a 256 × 192 thermal channel and a 5MP, 2688 × 1944 optical channel. Bi-spectrum image fusion displays the details of the optical channel on the thermal channel.
What temperature range can it measure?
-20 °C to 650 °C (-4 °F to 1202 °F), with temperature accuracy of Max (± 2 °C, ±2 %).
How far can it detect people and vehicles?
The VCA range is 24 m for humans and 60 m for vehicles.
How is it powered?
From 12 VDC ± 25% or 24VDC ± 25% via a φ 5.5 mm coaxial power plug, or over PoE (802.3at, class 4), with max. 12.8W consumption.
Can it be mounted outdoors?
It is rated IP67 with TVS 6000V lightning protection and works from -40°C to 65°C at humidity of 95% or less.
Where does it store recordings?
On a MicroSD/SDHC/SDXC card (up to 512 G) or NAS (NFS, SMB/CIFS), with Auto Network Replenishment (ANR).
£
624
41
RRP: £749.29
Save £124.88
Price
Technical Details
Specifications
Brand
HIKMICRO
Model
HM-TD1228T-2/G1/T3A
Manufacturer Part Number (MPN)
HM-TD1228T-2/G1/T3A
Thermal Image Sensor
Vanadium Oxide Uncooled Focal Plane Arrays
Thermal Resolution
256 × 192
Pixel Pitch
12 μm
Spectral Range
8 μm to 14 μm
NETD
≤25 mK (25°C, F1.0)
Thermal Lens
Focal Length 2.1 mm; IFOV 5.71mrad; Field Of View 90° × 65.4° (H × V)
Digital Zoom
×2, ×4
Optical Image Sensor
1/2.7" Progressive Scan CMOS
Optical Resolution
5MP, 2688 × 1944
Optical Lens
Focal Length 2.2mm; Field Of View 128.3°(H) x75.4°(V)
Min. Illumination
0.0176Lux @(F2.25,AGC ON), 0 Lux with IR
WDR
120 dB
Light Supplement
Hybrid (IR, White light or Smart mode)
IR Distance
Up to 30m
White Light Range
Up to 30 m
Temperature Range
-20 °C to 650 °C (-4 °F to 1202 °F)
Temperature Accuracy
Max (± 2 °C, ±2 %)
Temperature Measurement
3 temperature measurement rule types (point, area, line), 21 rules in total
Fire Detection
Up to 10 fire points detectable
Smoking Detection
Up to 10 smoking points detected
Smoke Detection
Support smoke detection on optical channel
VCA
4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total
VCA Range
Humans 24 m; Vehicles 60 m
Filter algorithms
Sun-reflection filter and forklift alarm filter algorithm (forklift alarm filter is exclusive with VCA function)
Visual Alarm
White light alarm with adjustable flashing frequencies
Color Palettes
17 types
Video Compression
Main Stream: H.265/H.264; Sub-Stream: H.265/H.264/MJPEG
Network Storage
MicroSD/SDHC/SDXC card (up to 512 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
API
ISAPI, ISUP, HIKVISION SDK, and third-party management platform, Open Network Video Interface (Profile S, Profile G, Profile T, Profile M), OTAP
Client
iVMS-4200, Hik-Connect
Communication Interface
1, RJ45 10 M/100 M Self-adaptive Ethernet interface; 1, RS-485 interface (half duplex)
Alarm Input / Output
1, alarm input (0-5 VDC); 2, alarm output
Audio Input
1, 3.5 mm Mic in/Line in interface
Power Supply
12 VDC ± 25%, 24VDC ± 25%, φ 5.5 mm coaxial power plug; PoE (802.3at, class 4)
Power Consumption (12 VDC)
12 VDC ± 25%: 0.85A to 1.42 A, max. 12.8W
Power Consumption (PoE)
PoE (802.3at, class 4): 42.5 V to 57 V, 0.22 A to 0.3 A, max. 12.8W
Working Temperature/Humidity
Temperature: -40°C to 65°C (-40°F to 149°F); Humidity: 95% or less
Protection Level
IP67 Standard; TVS 6000V lightning protection, surge protection, voltage transient protection
Dimensions
138.3 mm × 138.3 mm × 121.6 mm
Weight
975.6 g
Specifications
| Brand | HIKMICRO |
|---|---|
| Model | HM-TD1228T-2/G1/T3A |
| Manufacturer Part Number (MPN) | HM-TD1228T-2/G1/T3A |
| Thermal Image Sensor | Vanadium Oxide Uncooled Focal Plane Arrays |
| Thermal Resolution | 256 × 192 |
| Pixel Pitch | 12 μm |
| Spectral Range | 8 μm to 14 μm |
| NETD | ≤25 mK (25°C, F1.0) |
| Thermal Lens | Focal Length 2.1 mm; IFOV 5.71mrad; Field Of View 90° × 65.4° (H × V) |
| Digital Zoom | ×2, ×4 |
| Optical Image Sensor | 1/2.7" Progressive Scan CMOS |
| Optical Resolution | 5MP, 2688 × 1944 |
| Optical Lens | Focal Length 2.2mm; Field Of View 128.3°(H) x75.4°(V) |
| Min. Illumination | 0.0176Lux @(F2.25,AGC ON), 0 Lux with IR |
| WDR | 120 dB |
| Light Supplement | Hybrid (IR, White light or Smart mode) |
| IR Distance | Up to 30m |
| White Light Range | Up to 30 m |
| Temperature Range | -20 °C to 650 °C (-4 °F to 1202 °F) |
| Temperature Accuracy | Max (± 2 °C, ±2 %) |
| Temperature Measurement | 3 temperature measurement rule types (point, area, line), 21 rules in total |
| Fire Detection | Up to 10 fire points detectable |
| Smoking Detection | Up to 10 smoking points detected |
| Smoke Detection | Support smoke detection on optical channel |
| VCA | 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total |
| VCA Range | Humans 24 m; Vehicles 60 m |
| Filter algorithms | Sun-reflection filter and forklift alarm filter algorithm (forklift alarm filter is exclusive with VCA function) |
| Visual Alarm | White light alarm with adjustable flashing frequencies |
| Color Palettes | 17 types |
| Video Compression | Main Stream: H.265/H.264; Sub-Stream: H.265/H.264/MJPEG |
| Network Storage | MicroSD/SDHC/SDXC card (up to 512 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) |
| API | ISAPI, ISUP, HIKVISION SDK, and third-party management platform, Open Network Video Interface (Profile S, Profile G, Profile T, Profile M), OTAP |
| Client | iVMS-4200, Hik-Connect |
| Communication Interface | 1, RJ45 10 M/100 M Self-adaptive Ethernet interface; 1, RS-485 interface (half duplex) |
| Alarm Input / Output | 1, alarm input (0-5 VDC); 2, alarm output |
| Audio Input | 1, 3.5 mm Mic in/Line in interface |
| Power Supply | 12 VDC ± 25%, 24VDC ± 25%, φ 5.5 mm coaxial power plug; PoE (802.3at, class 4) |
| Power Consumption (12 VDC) | 12 VDC ± 25%: 0.85A to 1.42 A, max. 12.8W |
| Power Consumption (PoE) | PoE (802.3at, class 4): 42.5 V to 57 V, 0.22 A to 0.3 A, max. 12.8W |
| Working Temperature/Humidity | Temperature: -40°C to 65°C (-40°F to 149°F); Humidity: 95% or less |
| Protection Level | IP67 Standard; TVS 6000V lightning protection, surge protection, voltage transient protection |
| Dimensions | 138.3 mm × 138.3 mm × 121.6 mm |
| Weight | 975.6 g |
