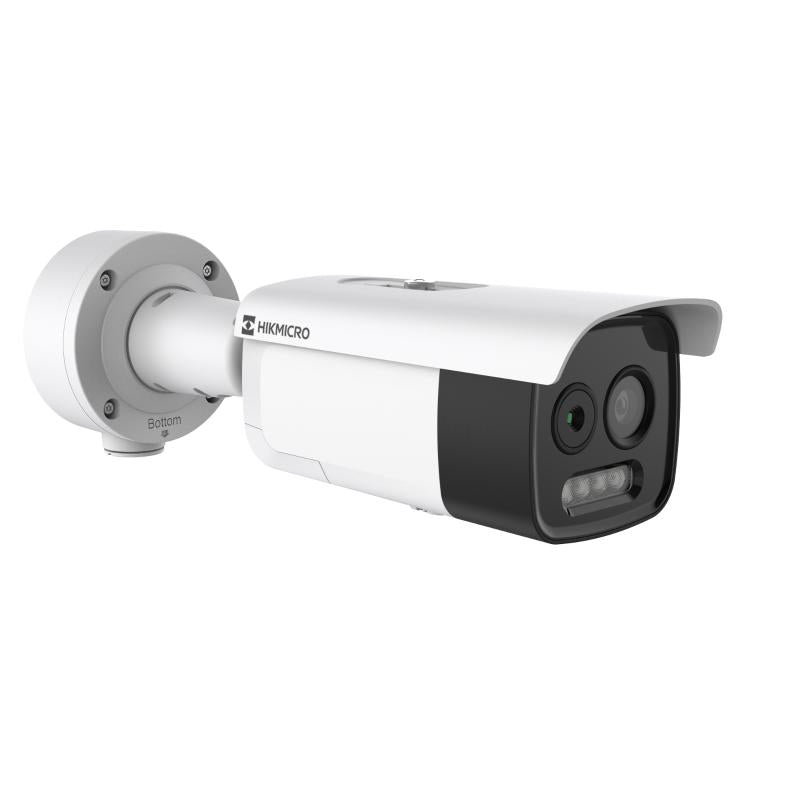

HIKMICRO HM-TD2628-10/G1/T3A Thermal & Optical Bi-spectrum Bullet Camera, 256 × 192 Thermal, 5MP Optical
Free Delivery
£
525
81
(Incl. VAT)
RRP: £630.97
About this product
The HIKMICRO HM-TD2628-10/G1/T3A is a thermal & optical bi-spectrum network bullet camera for perimeter protection and temperature exception alarm, pairing a 256 × 192 thermal sensor with a 5MP optical channel. It uses the GUANLAN Large-Scale AI Model for extended human/vehicle detection distance and ultra low false alarm, and supports smart hybrid light with white light, IR and smart mode.
Key features
- Thermal module: 256 × 192 resolution, 12 μm, VOx UFPA, NETD ≤25 mK (25°C, F1.0)
- Optical module: 5MP, 2688 × 1944, 1/2.7" Progressive Scan CMOS
- Temperature measurement from -20 °C to 150 °C (-4 °F to 302 °F), accuracy ±8°C (±14.4°F)
- Fire point detection, up to 10 fire points detectable, plus a smoking detection algorithm
- IR distance up to 80m and white light range up to 80 m
- 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total
- Powered by 12 VDC ± 25% or PoE (802.3at, class 4), max. 24W
- IP67 and IK10 protection, with TVS 6000V lightning protection
Frequently asked questions
What temperature range can the HM-TD2628-10/G1/T3A measure, and how accurately?
It measures from -20 °C to 150 °C (-4 °F to 302 °F) with an accuracy of ±8°C (±14.4°F), using 3 rule types (point, area, line), 21 rules in total.
How is it powered?
From 12 VDC ± 25% through a two-core terminal block, or from PoE (802.3at, class 4). Power consumption is max. 24W.
How far does its night illumination reach?
The hybrid light supplement (IR, white light or smart mode) gives an IR distance of up to 80m and a white light range of up to 80 m.
Can it detect fire and smoking?
Yes. It supports fire point detection with up to 10 fire points detectable, and a smoking detection algorithm.
Can it record locally?
Yes. It supports a MicroSD/SDHC/SDXC card (up to 512 G) for local storage, as well as NAS (NFS, SMB/CIFS) and Auto Network Replenishment (ANR).
Is it suitable for outdoor mounting?
It is rated IP67 and IK10 with TVS 6000V lightning protection, and works from -40°C to 65°C (-40°F to 149°F) at humidity of 95% or less. A DS-1260ZJ junction box is included.
£
525
81
RRP: £630.97
Save £105.16
Price
Technical Details
Specifications
Brand
HIKMICRO
Model
HM-TD2628-10/G1/T3A
Manufacturer Part Number (MPN)
HM-TD2628-10/G1/T3A
Thermal Image Sensor
Vanadium Oxide Uncooled Focal Plane Arrays
Thermal Resolution
256 × 192
Pixel Pitch
12 μm
Spectral Range
8 μm to 14 μm
NETD
≤25 mK (25°C, F1.0)
Thermal Focal Length
9.7mm
Thermal Field Of View
18.0° × 13.5° (H × V)
Thermal Aperture
F1.0
Digital Zoom
×2, ×4
Optical Image Sensor
1/2.7" Progressive Scan CMOS
Optical Resolution
5MP, 2688 × 1944
Min. Illumination
0.0089Lux @(F1.6,AGC ON) ,0 Lux with IR
Optical Focal Length
12.4 mm
Optical Field Of View
24.6° × 14° (H × V)
Optical Aperture (Range)
F1.6
WDR
120 dB
Light Supplement
Hybrid (IR, White light or Smart mode)
IR Distance
Up to 80m
White Light Range
Up to 80 m
VCA
4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
VCA Range For Humans
120 m
Temperature Measurement
3 temperature measurement rule types (point, area, line), 21 rules in total
Temperature Range
-20 °C to 150 °C (-4 °F to 302 °F)
Temperature Accuracy
±8°C (±14.4°F)
Fire Detection
Up to 10 fire points detectable
Video Compression
Main Stream: H.265/H.264; Sub-Stream: H.265/H.264/MJPEG
Color Palettes
17 types
Network Storage
MicroSD/SDHC/SDXC card (up to 512 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
Simultaneous Live View
Up to 20 channels
API
ISAPI, ISUP, HIKVISION SDK, and third-party management platform, Open Network Video Interface (Profile S, Profile G, Profile T, Profile M),OTAP
Client
iVMS-4200, Hik-Connect
Alarm Input
2, alarm input (0-5 VDC)
Alarm Output
2, alarm output (alarm response actions configurable)
Communication Interface
1, RJ45 10 M/100 M Self-adaptive Ethernet interface; 1, RS-485 interface (half duplex)
Power Output
12 VDC, max 1W
Power Supply
12 VDC ± 25%, two-core terminal block; PoE (802.3at, class 4)
Power Consumption
12 VDC ± 25%: 1.67A to 2.5 A, max. 24W; PoE (802.3at, class 4): 42.5 V to 57 V, 0.56 A to 0.42 A, max. 24W
Working Temperature/Humidity
Temperature: -40°C to 65°C (-40°F to 149°F); Humidity: 95% or less
Protection Level
IP67 Standard, IK10; TVS 6000V lightning protection, surge protection, voltage transient protection
Dimensions
349.1 mm × 113 mm × 105mm
Weight
1710 g
Accessory included
DS-1260ZJ Junction box
Specifications
| Brand | HIKMICRO |
|---|---|
| Model | HM-TD2628-10/G1/T3A |
| Manufacturer Part Number (MPN) | HM-TD2628-10/G1/T3A |
| Thermal Image Sensor | Vanadium Oxide Uncooled Focal Plane Arrays |
| Thermal Resolution | 256 × 192 |
| Pixel Pitch | 12 μm |
| Spectral Range | 8 μm to 14 μm |
| NETD | ≤25 mK (25°C, F1.0) |
| Thermal Focal Length | 9.7mm |
| Thermal Field Of View | 18.0° × 13.5° (H × V) |
| Thermal Aperture | F1.0 |
| Digital Zoom | ×2, ×4 |
| Optical Image Sensor | 1/2.7" Progressive Scan CMOS |
| Optical Resolution | 5MP, 2688 × 1944 |
| Min. Illumination | 0.0089Lux @(F1.6,AGC ON) ,0 Lux with IR |
| Optical Focal Length | 12.4 mm |
| Optical Field Of View | 24.6° × 14° (H × V) |
| Optical Aperture (Range) | F1.6 |
| WDR | 120 dB |
| Light Supplement | Hybrid (IR, White light or Smart mode) |
| IR Distance | Up to 80m |
| White Light Range | Up to 80 m |
| VCA | 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total. |
| VCA Range For Humans | 120 m |
| Temperature Measurement | 3 temperature measurement rule types (point, area, line), 21 rules in total |
| Temperature Range | -20 °C to 150 °C (-4 °F to 302 °F) |
| Temperature Accuracy | ±8°C (±14.4°F) |
| Fire Detection | Up to 10 fire points detectable |
| Video Compression | Main Stream: H.265/H.264; Sub-Stream: H.265/H.264/MJPEG |
| Color Palettes | 17 types |
| Network Storage | MicroSD/SDHC/SDXC card (up to 512 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) |
| Simultaneous Live View | Up to 20 channels |
| API | ISAPI, ISUP, HIKVISION SDK, and third-party management platform, Open Network Video Interface (Profile S, Profile G, Profile T, Profile M),OTAP |
| Client | iVMS-4200, Hik-Connect |
| Alarm Input | 2, alarm input (0-5 VDC) |
| Alarm Output | 2, alarm output (alarm response actions configurable) |
| Communication Interface | 1, RJ45 10 M/100 M Self-adaptive Ethernet interface; 1, RS-485 interface (half duplex) |
| Power Output | 12 VDC, max 1W |
| Power Supply | 12 VDC ± 25%, two-core terminal block; PoE (802.3at, class 4) |
| Power Consumption | 12 VDC ± 25%: 1.67A to 2.5 A, max. 24W; PoE (802.3at, class 4): 42.5 V to 57 V, 0.56 A to 0.42 A, max. 24W |
| Working Temperature/Humidity | Temperature: -40°C to 65°C (-40°F to 149°F); Humidity: 95% or less |
| Protection Level | IP67 Standard, IK10; TVS 6000V lightning protection, surge protection, voltage transient protection |
| Dimensions | 349.1 mm × 113 mm × 105mm |
| Weight | 1710 g |
| Accessory included | DS-1260ZJ Junction box |
