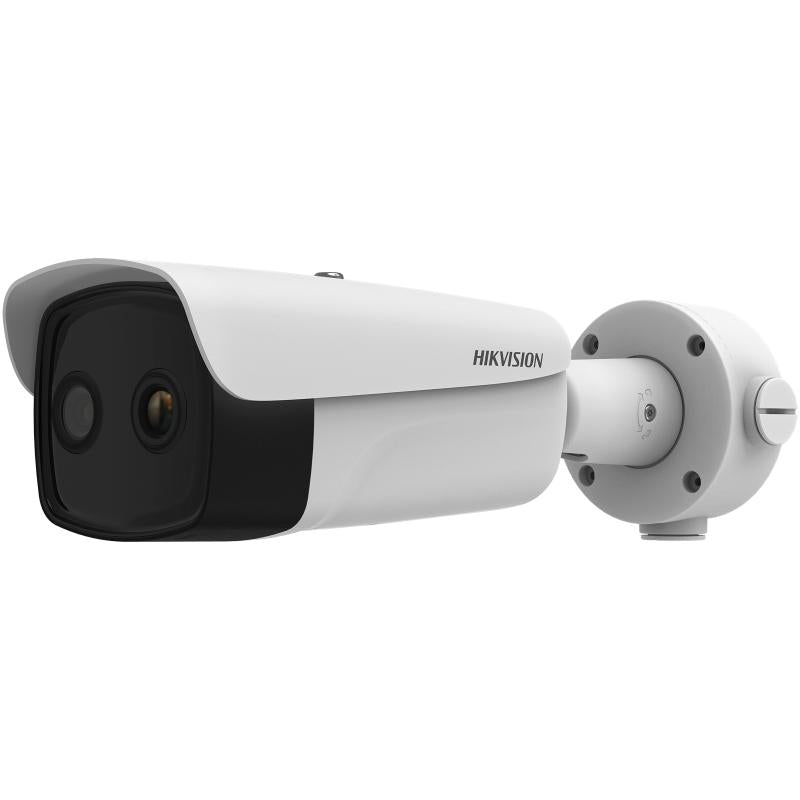

HIKMICRO HM-TD2638-25/G1/T3Y Thermal & Optical Bi-spectrum Bullet Camera, 384 × 288 Thermal, 25mm Thermal Lens
Free Delivery
£
2,893
63
(Incl. VAT)
RRP: £3,472.36
About this product
The HIKMICRO HM-TD2638-25/G1/T3Y is a thermal & optical bi-spectrum network bullet camera for IP CCTV systems, pairing a 384 × 288 resolution, 12 μm VOx thermal module behind a 25 mm lens with a 2688 × 1520 optical module and IR up to 100 m. It adds extended human/vehicle detection distance with the GUANLAN Large-Scale AI Model, a temperature exception alarm from -20°C to 150°C (± 8°C) and a fire detection algorithm.
Key features
- Thermal: 384 × 288 resolution, 12 μm, VOx UFPA, NETD ≤ 20 mK (25°C, F1.0)
- 25 mm thermal lens with a 10.5° × 7.9° (H × V) field of view
- Optical: 1/2.7" Progressive Scan CMOS, 2688 × 1520, 12.4 mm lens
- IR distance up to 100 m
- VCA range for humans 325 m and for vehicles 750 m
- Temperature exception alarm, -20°C to 150°C, ± 8°C accuracy
- Fire detection, up to 10 fire points detectable
- IP67, IK10-rated housing and NEMA 4X anti-corrosion housing
Frequently asked questions
What is the thermal resolution of the HM-TD2638-25/G1/T3Y?
The thermal module is 384 × 288 resolution with a 12 μm pixel pitch, VOx UFPA and NETD ≤ 20 mK (25°C, F1.0), behind a 25 mm lens.
How far away can it detect people and vehicles?
The VCA range is 325 m for humans and 750 m for vehicles. VCA supports 4 rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
Can it measure temperature?
Yes. It has 3 temperature measurement rule types (point, area, line), 21 rules in total, over -20 °C to 150 °C (-4 °F to 302 °F) with an accuracy of ± 8 °C (±14.4 °F).
What power options does it have?
It runs on 24 VAC ± 25% (max. 12.1W), 12 VDC ± 25% (max. 11.3W) or PoE (802.3af, class 3) (max. 11.8W).
How tough is the housing?
It is rated IP67: IEC 60529-2013 and IK10: IEC 62262-2002, with NEMA 4X anti-corrosion housing, and works from -40°C to 70°C with humidity of 95% or less.
Where does it store recordings?
It supports MicroSD/SDHC/SDXC card (up to 512 G) local storage and NAS (NFS, SMB/CIFS), with Auto Network Replenishment (ANR).
£
2,893
63
RRP: £3,472.36
Save £578.73
Price
Technical Details
Specifications
Brand
HIKMICRO
Model
HM-TD2638-25/G1/T3Y
Manufacturer Part Number (MPN)
HM-TD2638-25/G1/T3Y
Thermal Image Sensor
Vanadium Oxide Uncooled Focal Plane Arrays
Thermal Resolution
384 x 288
Pixel Pitch
12 μm
NETD
≤ 20 mK (@25° C, F# = 1.0)
Thermal Focal Length
25 mm
IFOV
0.48 mrad
Thermal Aperture
F1.0
Thermal Field Of View
10.5° × 7.9° (H × V)
Min. Focusing Distance
23 m
Digital Zoom
×2, ×4, ×8
Optical Image Sensor
1/2.7" Progressive Scan CMOS
Optical Resolution
2688 × 1520
Min. Illumination
0.0089Lux @(F1.6,AGC ON), 0 Lux with IR
Optical Field Of View
24.6° × 14° (H × V)
Optical Focal Length
12.4 mm
Shutter Speed
1 s to 1/100,000 s
White Balance
MWB/AWB1/Locked WB/Fluorescent Lamp/Incandescent Lamp/Warm Light Lamp/Natural Light
Day & Night Mode
IR Cut Filter with Auto Switch
WDR
120 dB
Bi-Spectrum Image Fusion
Display the details of optical channel on thermal channel
Picture In Picture
Display partial image of thermal channel on the full screen of optical channel
Target Coloration
Yes. Supported in white hot and black hot mode.
EIS
Thermal channel supports EIS, exclusive with all smart functions
IR Distance
Up to 100 m
IR Intensity And Angle
Automatically adjusted
VCA
4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total
Temperature Measurement
3 temperature measurement rule types (point, area, line), 21 rules in total
Temperature Range
-20 °C to 150 °C (-4 °F to 302 °F)
Temperature Accuracy
± 8 °C (±14.4 °F)
Fire Detection
Up to 10 fire points detectable
Main Stream
Optical channel: 50 HZ: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720); 60 HZ: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720). Thermal channel: 25 fps (1280×720P, 704×576, 352×288, 384×288)
Video Compression
Main Stream: H.265/H.264; Sub-Stream: H.265/H.264/MJPEG
Audio Compression
G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM
Color Palettes
17 types (White hot, Black hot, Fusion 1, Rainbow, Fusion 2, Ironbow 1, Ironbow 2, Sepia, Color 1, Color 2, Ice fire, Rain, Red hot, Green hot, Dark blue, Winter, Summer)
Network Storage
MicroSD/SDHC/SDXC card (up to 512 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
API
ISAPI, ISUP, HIKVISION SDK, and third-party management platform, Open Network Video Interface, ONVIF (Profile S, Profile G, Profile T, Profile M), OTAP
Simultaneous Live View
Up to 20 channels
User/Host Level
Up to 32 users, 3 levels: Administrator, Operator, User
Client
iVMS-4200, Hik-Connect
Alarm Input
2, alarm input (0-5 VDC)
Alarm Output
2-ch, relay outputs (alarm response actions configurable)
Alarm Action
SD recording/Relay output/Smart capture/FTP upload/Email linkage
Audio Input
1, 3.5 mm Mic in/Line in interface; Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%
Audio Output
Linear level, impedance: 600 Ω
Communication Interface
1, RJ45 10 M/100 M Self-adaptive Ethernet interface; 1, RS-485 interface (half duplex)
Analog Output
1.0V [p-p]/75Ω, PAL/NTSC/BNC
Power Supply
24 VAC ± 25%, 12 VDC ± 25%, 24VDC two-core terminal block; PoE (802.3af, class 3)
Power Consumption
24 VAC ± 25%: 0.33 A to 0.55 A, max. 12.1W; 12 VDC ± 25%: 0.8 A to 1.33 A, max. 11.3W; PoE (802.3af, class 3): 36 V to 57 V, 0.33 A to 0.21 A, max. 11.8W
Working Temperature/Humidity
Temperature: -40°C to 70°C (-40°F to 158°F); Humidity: 95% or less
Protection Level
IP67 Standard; TVS 4000V lightning protection, surge protection, voltage transient protection; IK10-rated housing; NEMA 4X anti-corrosion housing
Dimensions
376.1 mm × 119.1 mm × 118.1 mm
Weight
1.82 kg
VCA Range For Humans
325 m
VCA Range For Vehicles
750 m
Anti-Corrosion Protection
NEMA 4X (NEMA 250-2018)
Specifications
| Brand | HIKMICRO |
|---|---|
| Model | HM-TD2638-25/G1/T3Y |
| Manufacturer Part Number (MPN) | HM-TD2638-25/G1/T3Y |
| Thermal Image Sensor | Vanadium Oxide Uncooled Focal Plane Arrays |
| Thermal Resolution | 384 x 288 |
| Pixel Pitch | 12 μm |
| NETD | ≤ 20 mK (@25° C, F# = 1.0) |
| Thermal Focal Length | 25 mm |
| IFOV | 0.48 mrad |
| Thermal Aperture | F1.0 |
| Thermal Field Of View | 10.5° × 7.9° (H × V) |
| Min. Focusing Distance | 23 m |
| Digital Zoom | ×2, ×4, ×8 |
| Optical Image Sensor | 1/2.7" Progressive Scan CMOS |
| Optical Resolution | 2688 × 1520 |
| Min. Illumination | 0.0089Lux @(F1.6,AGC ON), 0 Lux with IR |
| Optical Field Of View | 24.6° × 14° (H × V) |
| Optical Focal Length | 12.4 mm |
| Shutter Speed | 1 s to 1/100,000 s |
| White Balance | MWB/AWB1/Locked WB/Fluorescent Lamp/Incandescent Lamp/Warm Light Lamp/Natural Light |
| Day & Night Mode | IR Cut Filter with Auto Switch |
| WDR | 120 dB |
| Bi-Spectrum Image Fusion | Display the details of optical channel on thermal channel |
| Picture In Picture | Display partial image of thermal channel on the full screen of optical channel |
| Target Coloration | Yes. Supported in white hot and black hot mode. |
| EIS | Thermal channel supports EIS, exclusive with all smart functions |
| IR Distance | Up to 100 m |
| IR Intensity And Angle | Automatically adjusted |
| VCA | 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total |
| Temperature Measurement | 3 temperature measurement rule types (point, area, line), 21 rules in total |
| Temperature Range | -20 °C to 150 °C (-4 °F to 302 °F) |
| Temperature Accuracy | ± 8 °C (±14.4 °F) |
| Fire Detection | Up to 10 fire points detectable |
| Main Stream | Optical channel: 50 HZ: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720); 60 HZ: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720). Thermal channel: 25 fps (1280×720P, 704×576, 352×288, 384×288) |
| Video Compression | Main Stream: H.265/H.264; Sub-Stream: H.265/H.264/MJPEG |
| Audio Compression | G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM |
| Color Palettes | 17 types (White hot, Black hot, Fusion 1, Rainbow, Fusion 2, Ironbow 1, Ironbow 2, Sepia, Color 1, Color 2, Ice fire, Rain, Red hot, Green hot, Dark blue, Winter, Summer) |
| Network Storage | MicroSD/SDHC/SDXC card (up to 512 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) |
| API | ISAPI, ISUP, HIKVISION SDK, and third-party management platform, Open Network Video Interface, ONVIF (Profile S, Profile G, Profile T, Profile M), OTAP |
| Simultaneous Live View | Up to 20 channels |
| User/Host Level | Up to 32 users, 3 levels: Administrator, Operator, User |
| Client | iVMS-4200, Hik-Connect |
| Alarm Input | 2, alarm input (0-5 VDC) |
| Alarm Output | 2-ch, relay outputs (alarm response actions configurable) |
| Alarm Action | SD recording/Relay output/Smart capture/FTP upload/Email linkage |
| Audio Input | 1, 3.5 mm Mic in/Line in interface; Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10% |
| Audio Output | Linear level, impedance: 600 Ω |
| Communication Interface | 1, RJ45 10 M/100 M Self-adaptive Ethernet interface; 1, RS-485 interface (half duplex) |
| Analog Output | 1.0V [p-p]/75Ω, PAL/NTSC/BNC |
| Power Supply | 24 VAC ± 25%, 12 VDC ± 25%, 24VDC two-core terminal block; PoE (802.3af, class 3) |
| Power Consumption | 24 VAC ± 25%: 0.33 A to 0.55 A, max. 12.1W; 12 VDC ± 25%: 0.8 A to 1.33 A, max. 11.3W; PoE (802.3af, class 3): 36 V to 57 V, 0.33 A to 0.21 A, max. 11.8W |
| Working Temperature/Humidity | Temperature: -40°C to 70°C (-40°F to 158°F); Humidity: 95% or less |
| Protection Level | IP67 Standard; TVS 4000V lightning protection, surge protection, voltage transient protection; IK10-rated housing; NEMA 4X anti-corrosion housing |
| Dimensions | 376.1 mm × 119.1 mm × 118.1 mm |
| Weight | 1.82 kg |
| VCA Range For Humans | 325 m |
| VCA Range For Vehicles | 750 m |
| Anti-Corrosion Protection | NEMA 4X (NEMA 250-2018) |
