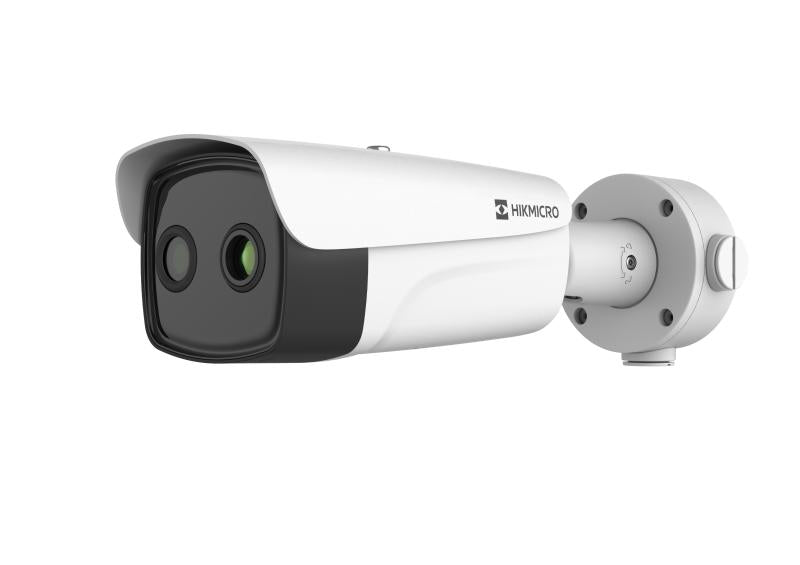

HIKMICRO HM-TD2668-25/G1/T3Y(O-STD) Thermal & Optical Bi-spectrum Bullet Camera, 640 x 512 Thermal, 25 mm Thermal Lens
Free Delivery
£
3,861
45
(Incl. VAT)
RRP: £4,633.74
About this product
The HIKMICRO HM-TD2668-25/G1/T3Y(O-STD) is a Thermal & Optical Bi-spectrum Network Bullet Camera for IP CCTV systems, pairing a 640 x 512 thermal module with a 25 mm lens and a 2688 × 1520 optical module. It has extended human/vehicle detection distance and ultra low false alarm with the GUANLAN Large-Scale AI Model, a temperature exception alarm from -20°C to 150°C (-4°F to 302°F), and a fire detection algorithm.
Key features
- 640 x 512 thermal resolution, 12 μm pixel pitch, Vanadium Oxide Uncooled Focal Plane Arrays
- 25 mm thermal lens, F1.0, field of view 17.4° × 13.9° (H × V)
- VCA range for humans 325 m and for vehicles 750 m
- Temperature measurement from -20 °C to 150 °C (-4 °F to 302 °F), accuracy ± 8 °C (±14.4 °F)
- Fire detection, up to 10 fire points detectable
- IR distance up to 75 m
- IP67, IK10-rated housing and NEMA 4X anti-corrosion housing
- Built-in TPM2.0 encryption module for cybersecurity
Frequently asked questions
How is the HIKMICRO HM-TD2668-25/G1/T3Y(O-STD) powered?
By 24 VAC ± 25%, 12 VDC ± 25% or 24VDC through a two-core terminal block, or by PoE (802.3af, class 3). On PoE consumption is max. 12.3 W.
How far can the HM-TD2668-25/G1/T3Y(O-STD) detect people and vehicles?
The VCA range is 325 m for humans and 750 m for vehicles.
Can the HM-TD2668-25/G1/T3Y(O-STD) measure temperature?
Yes. It has 3 temperature measurement rule types (point, area, line), 21 rules in total, with a temperature range of -20 °C to 150 °C (-4 °F to 302 °F) and temperature accuracy of ± 8 °C (±14.4 °F).
What lenses does the HM-TD2668-25/G1/T3Y(O-STD) use?
The thermal module has a 25 mm lens at F1.0 with a field of view of 17.4° × 13.9° (H × V); the optical module has an 8 mm focal length with a field of view of 39.4° × 22° (H × V).
What storage does the HM-TD2668-25/G1/T3Y(O-STD) support?
MicroSD/SDHC/SDXC card (up to 512 G) local storage, NAS (NFS, SMB/CIFS) and Auto Network Replenishment (ANR).
What protection ratings does the HM-TD2668-25/G1/T3Y(O-STD) housing have?
It has an IP67 Standard rating, an IK10-rated housing and a NEMA 4X anti-corrosion housing, with a working temperature of -40°C to 70°C (-40°F to 158°F).
£
3,861
45
RRP: £4,633.74
Save £772.29
Price
Technical Details
Specifications
Brand
HIKMICRO
Model
HM-TD2668-25/G1/T3Y(O-STD)
Manufacturer Part Number (MPN)
HM-TD2668-25/G1/T3Y(O-STD)
Thermal image sensor
Vanadium Oxide Uncooled Focal Plane Arrays
Thermal resolution
640 x 512
Pixel Pitch
12 μm
NETD
≤ 20 mK (@25° C,F# = 1.0)
Thermal focal length
25 mm
IFOV
0.48 mrad
Thermal aperture
F1.0
Thermal field of view
17.4° × 13.9° (H × V)
Min. Focusing Distance
23 m
Digital Zoom
×2, ×4，×8
Optical image sensor
1/2.7" Progressive Scan CMOS
Optical resolution
2688 × 1520
Optical min. illumination
0.0089Lux @(F1.6,AGC ON) ,0 Lux with IR
Optical field of view
39.4° × 22° (H × V)
Optical focal length
8 mm
Shutter Speed
1 s to 1/100,000 s
Day & Night Mode
IR Cut Filter with Auto Switch
WDR
120 dB
Bi-Spectrum Image Fusion
Display the details of optical channel on thermal channel
Picture In Picture
Display partial image of thermal channel on the full screen of optical channel
Target Coloration
Yes. Supported in white hot and black hot mode.
IR Distance
Up to 75 m
VCA
4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
Temperature Measurement
3 temperature measurement rule types (point, area, line), 21 rules in total
Temperature Range
-20 °C to 150 °C (-4 °F to 302 °F)
Temperature Accuracy
± 8 °C (±14.4 °F)
Fire Detection
Up to 10 fire points detectable
Main Stream (optical channel)
50 HZ: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720), 60 HZ: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Main Stream (thermal channel)
25 fps (1280×720P， 704×576， 640×512，352×288)
Video Compression
Main Stream: H.265/H.264, Sub-Stream: H.265/H.264/MJPEG
Audio Compression
G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM
Color Palettes
17 types (White hot, Black hot, Fusion 1, Rainbow, Fusion 2, Ironbow 1, Ironbow 2, Sepia, Color 1, Color 2, Ice fire, Rain, Red hot, Green hot, Dark blue, Winter, Summer)
Network Storage
MicroSD/SDHC/SDXC card (up to 512 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
API
ISAPI, ISUP, HIKVISION SDK, and third-party management platform, Open Network Video Interface, ONVIF (Profile S, Profile G, Profile T, Profile M), OTAP
Simultaneous Live View
Up to 20 channels
User/Host Level
Up to 32 users, 3 levels: Administrator, Operator, User
Security
User authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering
Encryption module
Built-in TPM2.0 encryption module
Client
iVMS-4200, Hik-Connect
Alarm Input
2, alarm input (0-5 VDC)
Alarm Output
2-ch relay outputs, alarm response actions configurable
Alarm Action
SD recording/Relay output/Smart capture/FTP upload/Email linkage
Audio Input
1, 3.5 mm Mic in/Line in interface
Audio Output
Linear level, impedance: 600 Ω
Communication Interface
1, RJ45 10 M/100 M Self-adaptive Ethernet interface; 1, RS-485 interface (half duplex)
Analog Output
1.0V [p-p]/75Ω, PAL/NTSC/BNC
Power Supply
24 VAC ± 25%, 12 VDC ± 25%, 24VDC two-core terminal block; PoE (802.3af, class 3)
Power Consumption
24 VAC ± 25%: 0.33 A to 0.55 A, max. 12.6 W; 12 VDC ± 25%: 0.8 A to 1.33 A, max. 11.8 W; PoE (802.3af, class 3): 36 V to 57 V, 0.33 A to 0.21 A, max. 12.3 W
Working Temperature/Humidity
Temperature: -40°C to 70°C (-40°F to 158°F), Humidity: 95% or less
Protection Level
IP67 Standard, TVS 4000V lightning protection, surge protection, voltage transient protection, IK10-rated housing, NEMA 4X anti-corrosion housing
Dimensions
376.1 mm × 119.1 mm × 118.1 mm (14.81" × 4.68" × 4.65")
Weight
1.82 kg (4.01 lb)
VCA Range For Humans
325 m
VCA Range For Vehicles
750 m
Protection
IP67: IEC 60529-2013, IK10: IEC 62262-2002
Anti-Corrosion Protection
NEMA 4X (NEMA 250-2018)
EMC
CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN50130-4: 2011+A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 7)
Safety
CB: IEC 62368-1: 2014+A11; CE-LVD: EN 62368-1: 2014/A11: 2017; BIS: IS 13252 (Part 1): 2010/ IEC 60950-1: 2005; LOA: SANS/IEC 60950-1
Specifications
| Brand | HIKMICRO |
|---|---|
| Model | HM-TD2668-25/G1/T3Y(O-STD) |
| Manufacturer Part Number (MPN) | HM-TD2668-25/G1/T3Y(O-STD) |
| Thermal image sensor | Vanadium Oxide Uncooled Focal Plane Arrays |
| Thermal resolution | 640 x 512 |
| Pixel Pitch | 12 μm |
| NETD | ≤ 20 mK (@25° C,F# = 1.0) |
| Thermal focal length | 25 mm |
| IFOV | 0.48 mrad |
| Thermal aperture | F1.0 |
| Thermal field of view | 17.4° × 13.9° (H × V) |
| Min. Focusing Distance | 23 m |
| Digital Zoom | ×2, ×4，×8 |
| Optical image sensor | 1/2.7" Progressive Scan CMOS |
| Optical resolution | 2688 × 1520 |
| Optical min. illumination | 0.0089Lux @(F1.6,AGC ON) ,0 Lux with IR |
| Optical field of view | 39.4° × 22° (H × V) |
| Optical focal length | 8 mm |
| Shutter Speed | 1 s to 1/100,000 s |
| Day & Night Mode | IR Cut Filter with Auto Switch |
| WDR | 120 dB |
| Bi-Spectrum Image Fusion | Display the details of optical channel on thermal channel |
| Picture In Picture | Display partial image of thermal channel on the full screen of optical channel |
| Target Coloration | Yes. Supported in white hot and black hot mode. |
| IR Distance | Up to 75 m |
| VCA | 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total. |
| Temperature Measurement | 3 temperature measurement rule types (point, area, line), 21 rules in total |
| Temperature Range | -20 °C to 150 °C (-4 °F to 302 °F) |
| Temperature Accuracy | ± 8 °C (±14.4 °F) |
| Fire Detection | Up to 10 fire points detectable |
| Main Stream (optical channel) | 50 HZ: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720), 60 HZ: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
| Main Stream (thermal channel) | 25 fps (1280×720P， 704×576， 640×512，352×288) |
| Video Compression | Main Stream: H.265/H.264, Sub-Stream: H.265/H.264/MJPEG |
| Audio Compression | G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM |
| Color Palettes | 17 types (White hot, Black hot, Fusion 1, Rainbow, Fusion 2, Ironbow 1, Ironbow 2, Sepia, Color 1, Color 2, Ice fire, Rain, Red hot, Green hot, Dark blue, Winter, Summer) |
| Network Storage | MicroSD/SDHC/SDXC card (up to 512 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) |
| API | ISAPI, ISUP, HIKVISION SDK, and third-party management platform, Open Network Video Interface, ONVIF (Profile S, Profile G, Profile T, Profile M), OTAP |
| Simultaneous Live View | Up to 20 channels |
| User/Host Level | Up to 32 users, 3 levels: Administrator, Operator, User |
| Security | User authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering |
| Encryption module | Built-in TPM2.0 encryption module |
| Client | iVMS-4200, Hik-Connect |
| Alarm Input | 2, alarm input (0-5 VDC) |
| Alarm Output | 2-ch relay outputs, alarm response actions configurable |
| Alarm Action | SD recording/Relay output/Smart capture/FTP upload/Email linkage |
| Audio Input | 1, 3.5 mm Mic in/Line in interface |
| Audio Output | Linear level, impedance: 600 Ω |
| Communication Interface | 1, RJ45 10 M/100 M Self-adaptive Ethernet interface; 1, RS-485 interface (half duplex) |
| Analog Output | 1.0V [p-p]/75Ω, PAL/NTSC/BNC |
| Power Supply | 24 VAC ± 25%, 12 VDC ± 25%, 24VDC two-core terminal block; PoE (802.3af, class 3) |
| Power Consumption | 24 VAC ± 25%: 0.33 A to 0.55 A, max. 12.6 W; 12 VDC ± 25%: 0.8 A to 1.33 A, max. 11.8 W; PoE (802.3af, class 3): 36 V to 57 V, 0.33 A to 0.21 A, max. 12.3 W |
| Working Temperature/Humidity | Temperature: -40°C to 70°C (-40°F to 158°F), Humidity: 95% or less |
| Protection Level | IP67 Standard, TVS 4000V lightning protection, surge protection, voltage transient protection, IK10-rated housing, NEMA 4X anti-corrosion housing |
| Dimensions | 376.1 mm × 119.1 mm × 118.1 mm (14.81" × 4.68" × 4.65") |
| Weight | 1.82 kg (4.01 lb) |
| VCA Range For Humans | 325 m |
| VCA Range For Vehicles | 750 m |
| Protection | IP67: IEC 60529-2013, IK10: IEC 62262-2002 |
| Anti-Corrosion Protection | NEMA 4X (NEMA 250-2018) |
| EMC | CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN50130-4: 2011+A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 7) |
| Safety | CB: IEC 62368-1: 2014+A11; CE-LVD: EN 62368-1: 2014/A11: 2017; BIS: IS 13252 (Part 1): 2010/ IEC 60950-1: 2005; LOA: SANS/IEC 60950-1 |
