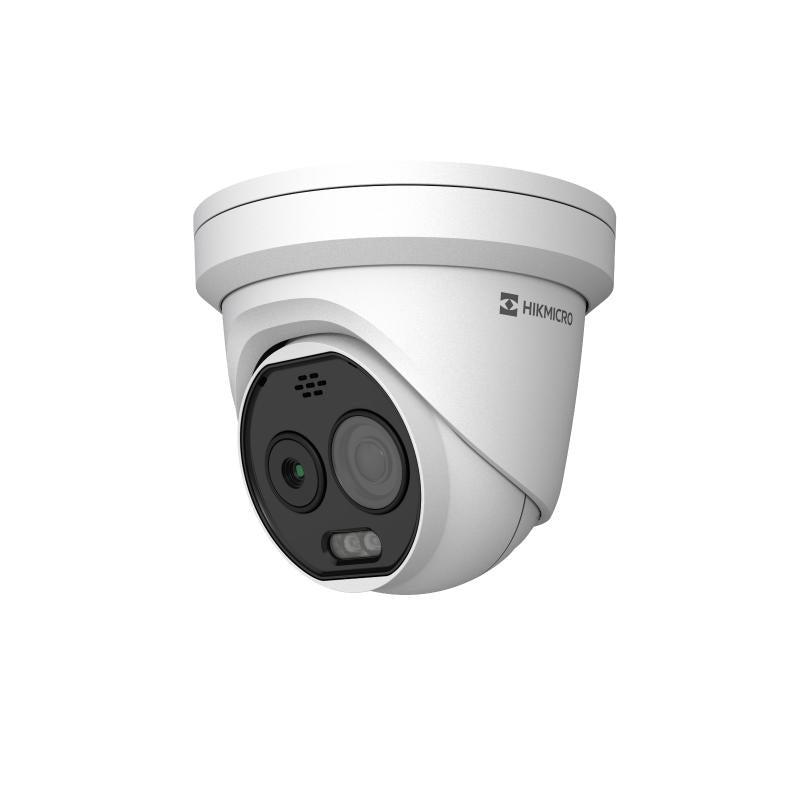

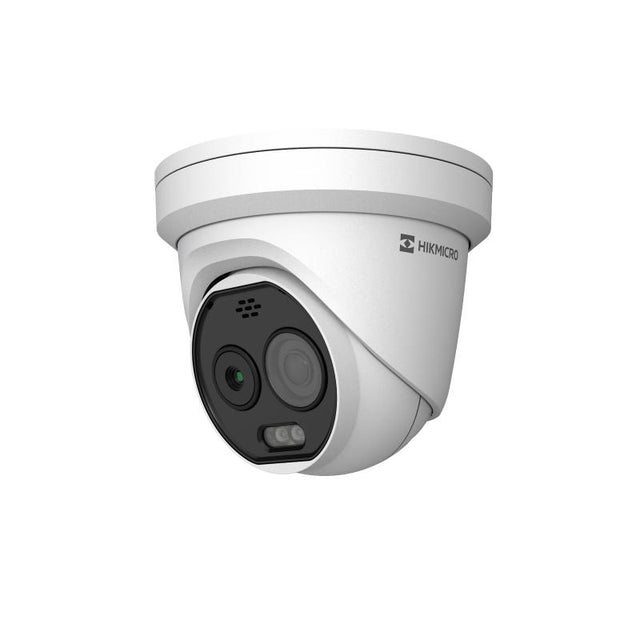

HIKMICRO HM-TD1218-2/G0/T1A Thermal & Optical Bi-Spectrum Network Turret Camera, 160 × 120 Thermal, 5MP Optical
Free Delivery
£
345
07
(Incl. VAT)
RRP: £414.08
About this product
The HIKMICRO HM-TD1218-2/G0/T1A is a thermal & optical bi-spectrum network turret camera that pairs a 160 × 120 vanadium oxide thermal sensor with a 5MP optical sensor in one IP67 housing. It classifies humans and vehicles with VCA 3.0, raises temperature exception alarms from -20 °C to 150 °C, detects fire points and smoking, and warns on site with a white light alarm and audible alarms.
Key features
- Thermal module: 160 × 120 vanadium oxide uncooled focal plane array, 12 μm pixel pitch, NETD ≤ 25 mK (@ 25 °C, F# = 1.0)
- Optical module: 1/2.7" Progressive Scan CMOS, 5MP (2688 × 1944), 120 dB WDR
- Bi-spectrum image fusion and picture-in-picture views
- VCA: line crossing, intrusion, region entrance and region exiting, up to 8 VCA rules in total
- Temperature measurement: point, area and line rules, 21 rules in total, -20 °C to 150 °C, accuracy ± 8 °C
- Fire detection with up to 10 fire points detectable, plus a smoking detection algorithm
- Hybrid light supplement (IR, white light or smart mode): IR distance up to 30 m
- PoE (802.3af, class 3) or 12 VDC power, IP67
Frequently asked questions
What resolution are the thermal and optical channels on the HM-TD1218-2/G0/T1A?
The thermal channel is 160 × 120 with a 12 μm pixel pitch; the optical channel is 5MP (2688 × 1944).
Can it measure temperature?
Yes. It supports 3 temperature measurement rule types (point, area, line), 21 rules in total, over -20 °C to 150 °C with an accuracy of ± 8 °C.
Can it detect fire?
Yes. It has fire detection with up to 10 fire points detectable, and also supports a smoking detection algorithm.
How far does the IR reach at night?
The IR distance is up to 30 m; the white light range is also up to 30 m.
How is the camera powered?
By 12 VDC ± 25% through a φ 5.5 mm coaxial power plug (Max 6 W), or by PoE (802.3af, class 3) at Max 6.5 W.
How far can it classify people and vehicles?
The VCA range is 20 m for humans and 60 m for vehicles.
£
345
07
RRP: £414.08
Save £69.01
Price
Technical Details
Specifications
Brand
HIKMICRO
Model
HM-TD1218-2/G0/T1A
Manufacturer Part Number (MPN)
HM-TD1218-2/G0/T1A
Thermal image sensor
Vanadium Oxide Uncooled Focal Plane Arrays
Thermal resolution
160 × 120
Pixel Pitch
12 μm
Spectral Range
8 μm to 14 μm
NETD
≤ 25 mK (@ 25 °C, F# = 1.0)
Thermal focal length
1.8 mm
Thermal field of view
90.0° × 66.4° (H × V)
Optical image sensor
1/2.7" Progressive Scan CMOS
Optical resolution
5MP, 2688 × 1944
Optical focal length
2 mm
Optical field of view
119.3° × 93.3° (H × V)
WDR
120 dB
Light Supplement
Hybrid (IR, White light or Smart mode)
IR Distance
Up to 30 m
White Light Range
Up to 30 m
VCA
4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total
VCA Range For Humans
20 m
VCA Range For Vehicles
60 m
Temperature Measurement
3 temperature measurement rule types (point, area, line), 21 rules in total
Temperature measurement range
-20 °C to 150 °C
Temperature Accuracy
± 8 °C
Fire Detection
Up to 10 fire points detectable
Thermal main stream
25 fps (1280 × 720, 704 × 576, 640 × 512, 320 × 240)
Optical main stream
50 Hz: 25 fps (2688 × 1944, 2688 × 1520, 1920 × 1080, 1280 × 720)
Video Compression
Main Stream: H.265/H.264; Sub-Stream: H.265/H.264/MJPEG
Network Storage
MicroSD/SDHC/SDXC card (up to 512 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
Simultaneous Live View
Up to 20 channels
Client
iVMS-4200, Hik-Connect
Alarm Input
1, alarm input (0-5 VDC)
Alarm Output
2, alarm output (alarm response actions configurable)
Communication Interface
1, RJ45 10 M/100 M Self-adaptive Ethernet interface; 1, RS-485 interface (half duplex)
Power Supply
12 VDC ± 25%, φ 5.5 mm coaxial power plug; PoE (802.3af, class 3)
Power Consumption
12 VDC ± 25%: 0.5 A, Max 6 W; PoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, Max 6.5 W
Working Temperature/Humidity
Temperature: - 40 °C to 65 °C; Humidity: 95% or less
Protection Level
IP67 Standard
Dimensions
138.3 mm × 138.3 mm × 123.1 mm
Weight
940 g
Specifications
| Brand | HIKMICRO |
|---|---|
| Model | HM-TD1218-2/G0/T1A |
| Manufacturer Part Number (MPN) | HM-TD1218-2/G0/T1A |
| Thermal image sensor | Vanadium Oxide Uncooled Focal Plane Arrays |
| Thermal resolution | 160 × 120 |
| Pixel Pitch | 12 μm |
| Spectral Range | 8 μm to 14 μm |
| NETD | ≤ 25 mK (@ 25 °C, F# = 1.0) |
| Thermal focal length | 1.8 mm |
| Thermal field of view | 90.0° × 66.4° (H × V) |
| Optical image sensor | 1/2.7" Progressive Scan CMOS |
| Optical resolution | 5MP, 2688 × 1944 |
| Optical focal length | 2 mm |
| Optical field of view | 119.3° × 93.3° (H × V) |
| WDR | 120 dB |
| Light Supplement | Hybrid (IR, White light or Smart mode) |
| IR Distance | Up to 30 m |
| White Light Range | Up to 30 m |
| VCA | 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total |
| VCA Range For Humans | 20 m |
| VCA Range For Vehicles | 60 m |
| Temperature Measurement | 3 temperature measurement rule types (point, area, line), 21 rules in total |
| Temperature measurement range | -20 °C to 150 °C |
| Temperature Accuracy | ± 8 °C |
| Fire Detection | Up to 10 fire points detectable |
| Thermal main stream | 25 fps (1280 × 720, 704 × 576, 640 × 512, 320 × 240) |
| Optical main stream | 50 Hz: 25 fps (2688 × 1944, 2688 × 1520, 1920 × 1080, 1280 × 720) |
| Video Compression | Main Stream: H.265/H.264; Sub-Stream: H.265/H.264/MJPEG |
| Network Storage | MicroSD/SDHC/SDXC card (up to 512 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) |
| Simultaneous Live View | Up to 20 channels |
| Client | iVMS-4200, Hik-Connect |
| Alarm Input | 1, alarm input (0-5 VDC) |
| Alarm Output | 2, alarm output (alarm response actions configurable) |
| Communication Interface | 1, RJ45 10 M/100 M Self-adaptive Ethernet interface; 1, RS-485 interface (half duplex) |
| Power Supply | 12 VDC ± 25%, φ 5.5 mm coaxial power plug; PoE (802.3af, class 3) |
| Power Consumption | 12 VDC ± 25%: 0.5 A, Max 6 W; PoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, Max 6.5 W |
| Working Temperature/Humidity | Temperature: - 40 °C to 65 °C; Humidity: 95% or less |
| Protection Level | IP67 Standard |
| Dimensions | 138.3 mm × 138.3 mm × 123.1 mm |
| Weight | 940 g |
