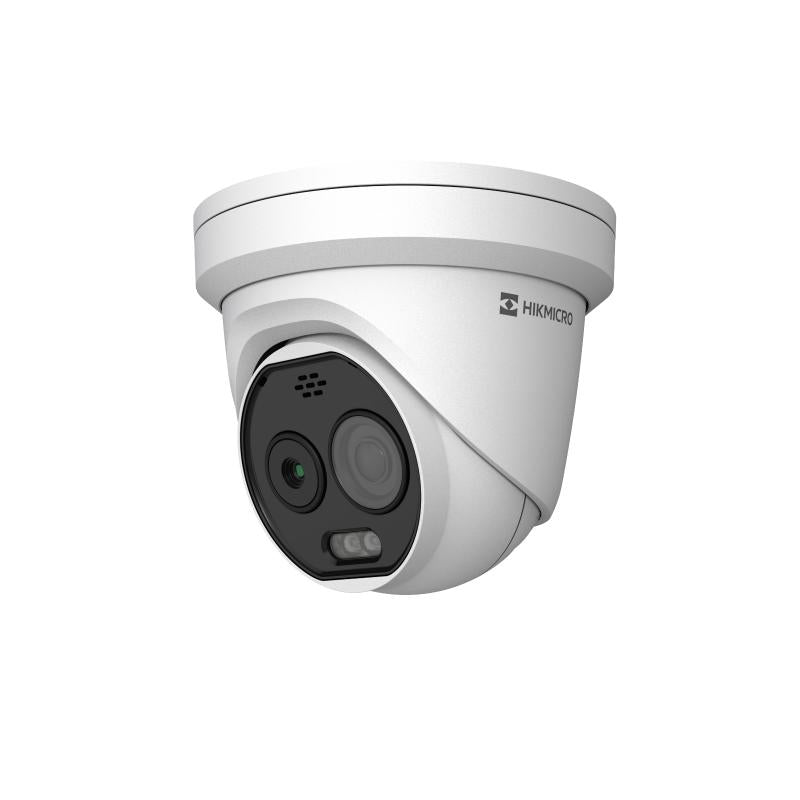

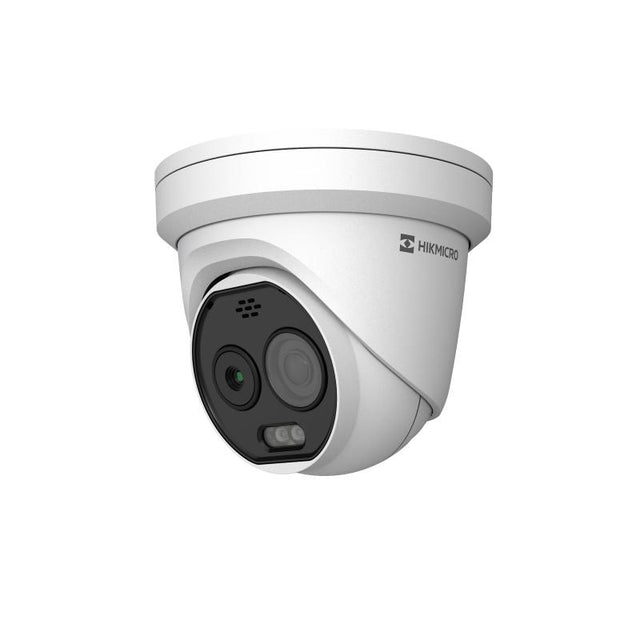

HIKMICRO HM-TD1228-3/G1/T3A Thermal & Optical Bi-Spectrum Turret Camera, 256 × 192 Thermal, 3.6mm Thermal Lens
Free Delivery
£
484
74
(Incl. VAT)
RRP: £581.69
About this product
The HIKMICRO HM-TD1228-3/G1/T3A is a thermal & optical bi-spectrum network turret camera for perimeter protection and temperature exception alarm, based on the GUANLAN Large Scale AI Model. It pairs a 256 × 192 resolution, 12 μm, VOx UFPA thermal module with a 5MP, 2688 × 1944 optical module.
Key features
- Thermal resolution 256 × 192 with 12 μm pixel pitch and NETD ≤25 mK (25°C, F1.0)
- Optical module: 1/2.7" Progressive Scan CMOS, 5MP, 2688 × 1944
- Extended human/vehicle detection distance and ultra low false alarm with GUANLAN Large-Scale AI Model
- Temperature range -20 °C to 150 °C (-4 °F to 302 °F), accuracy ±8°C (±14.4°F)
- Fire detection, up to 10 fire points detectable
- Smoking detection algorithm
- Hybrid light supplement (IR, White light or Smart mode)
- IP67 Standard protection with TVS 6000V lightning protection
Frequently asked questions
What thermal resolution does the HM-TD1228-3/G1/T3A have?
The thermal module is 256 × 192 resolution, 12 μm, VOx UFPA, NETD ≤25 mK (25°C, F1.0), with a 3.6 mm focal length and a field of view of 50.0°(H) x37.3°(V).
Can it measure temperature?
Yes. The temperature range is -20 °C to 150 °C (-4 °F to 302 °F) with a temperature accuracy of ±8°C (±14.4°F), using 3 temperature measurement rule types (point, area, line), 21 rules in total.
How is the camera powered?
Power supply is 12 VDC ± 25%, φ 5.5 mm coaxial power plug, or PoE (802.3af, class 3).
What are the VCA detection ranges?
The VCA range for humans is 36 m and the VCA range for vehicles is 90 m.
Does it have local storage?
Yes, it takes a MicroSD/SDHC/SDXC card (up to 512 G) for local storage and also supports NAS (NFS, SMB/CIFS) and Auto Network Replenishment (ANR).
What working conditions is it rated for?
It is rated IP67 Standard, with a working temperature of -40°C to 65°C (-40°F to 149°F) and humidity of 95% or less.
£
484
74
RRP: £581.69
Save £96.95
Price
Technical Details
Specifications
Brand
HIKMICRO
Model
HM-TD1228-3/G1/T3A
Manufacturer Part Number (MPN)
HM-TD1228-3/G1/T3A
Thermal Image Sensor
Vanadium Oxide Uncooled Focal Plane Arrays
Thermal Resolution
256 × 192
Pixel Pitch
12 μm
Spectral Range
8 μm to 14 μm
NETD
≤25 mK (25°C, F1.0)
Thermal Focal Length
3.6 mm
Thermal Field Of View
50.0°(H) x37.3°(V)
Digital Zoom
×2, ×4
Optical Image Sensor
1/2.7" Progressive Scan CMOS
Optical Resolution
5MP, 2688 × 1944
Optical Focal Length
4.3 mm
Optical Field Of View
84.0°(H) x43.1°(V)
Optical Min. Illumination
Color: 0.0176 Lux @ (F2.25, AGC ON), B/W: 0.0035 Lux @ (F2.25, AGC ON)
WDR
120 dB
Light Supplement
Hybrid (IR, White light or Smart mode)
Visual Alarm
Yes. White light alarm with adjustable flashing frequencies
VCA
4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
Temperature Measurement
3 temperature measurement rule types (point, area, line), 21 rules in total
Temperature Range
-20 °C to 150 °C (-4 °F to 302 °F)
Temperature Accuracy
±8°C (±14.4°F)
Fire Detection
up to 10 fire points detectable
VCA Range For Humans
36 m
VCA Range For Vehicles
90 m
Video Compression
Main Stream: H.265/H.264; Sub-Stream: H.265/H.264/MJPEG
Color Palettes
17 types
Network Storage
MicroSD/SDHC/SDXC card (up to 512 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
Simultaneous Live View
Up to 20 channels
Client
iVMS-4200, Hik-Connect
Alarm Input
1, alarm input (0-5 VDC)
Alarm Output
2, alarm output (alarm response actions configurable)
Audio Input
1, 3.5 mm Mic in/Line in interface
Audio Output
Linear level, impedance: 600 Ω
Communication Interface
1, RJ45 10 M/100 M Self-adaptive Ethernet interface. 1, RS-485 interface (half duplex)
Power Output
12 VDC, max. 1W
Power Supply
12 VDC ± 25%, φ 5.5 mm coaxial power plug; PoE (802.3af, class 3)
Working Temperature/Humidity
Temperature: -40°C to 65°C (-40°F to 149°F); Humidity: 95% or less
Protection Level
IP67 Standard; TVS 6000V lightning protection, surge protection, voltage transient protection
Dimensions
138.3 mm × 138.3 mm × 123.1 mm
Weight
940 g
Specifications
| Brand | HIKMICRO |
|---|---|
| Model | HM-TD1228-3/G1/T3A |
| Manufacturer Part Number (MPN) | HM-TD1228-3/G1/T3A |
| Thermal Image Sensor | Vanadium Oxide Uncooled Focal Plane Arrays |
| Thermal Resolution | 256 × 192 |
| Pixel Pitch | 12 μm |
| Spectral Range | 8 μm to 14 μm |
| NETD | ≤25 mK (25°C, F1.0) |
| Thermal Focal Length | 3.6 mm |
| Thermal Field Of View | 50.0°(H) x37.3°(V) |
| Digital Zoom | ×2, ×4 |
| Optical Image Sensor | 1/2.7" Progressive Scan CMOS |
| Optical Resolution | 5MP, 2688 × 1944 |
| Optical Focal Length | 4.3 mm |
| Optical Field Of View | 84.0°(H) x43.1°(V) |
| Optical Min. Illumination | Color: 0.0176 Lux @ (F2.25, AGC ON), B/W: 0.0035 Lux @ (F2.25, AGC ON) |
| WDR | 120 dB |
| Light Supplement | Hybrid (IR, White light or Smart mode) |
| Visual Alarm | Yes. White light alarm with adjustable flashing frequencies |
| VCA | 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total. |
| Temperature Measurement | 3 temperature measurement rule types (point, area, line), 21 rules in total |
| Temperature Range | -20 °C to 150 °C (-4 °F to 302 °F) |
| Temperature Accuracy | ±8°C (±14.4°F) |
| Fire Detection | up to 10 fire points detectable |
| VCA Range For Humans | 36 m |
| VCA Range For Vehicles | 90 m |
| Video Compression | Main Stream: H.265/H.264; Sub-Stream: H.265/H.264/MJPEG |
| Color Palettes | 17 types |
| Network Storage | MicroSD/SDHC/SDXC card (up to 512 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) |
| Simultaneous Live View | Up to 20 channels |
| Client | iVMS-4200, Hik-Connect |
| Alarm Input | 1, alarm input (0-5 VDC) |
| Alarm Output | 2, alarm output (alarm response actions configurable) |
| Audio Input | 1, 3.5 mm Mic in/Line in interface |
| Audio Output | Linear level, impedance: 600 Ω |
| Communication Interface | 1, RJ45 10 M/100 M Self-adaptive Ethernet interface. 1, RS-485 interface (half duplex) |
| Power Output | 12 VDC, max. 1W |
| Power Supply | 12 VDC ± 25%, φ 5.5 mm coaxial power plug; PoE (802.3af, class 3) |
| Working Temperature/Humidity | Temperature: -40°C to 65°C (-40°F to 149°F); Humidity: 95% or less |
| Protection Level | IP67 Standard; TVS 6000V lightning protection, surge protection, voltage transient protection |
| Dimensions | 138.3 mm × 138.3 mm × 123.1 mm |
| Weight | 940 g |
