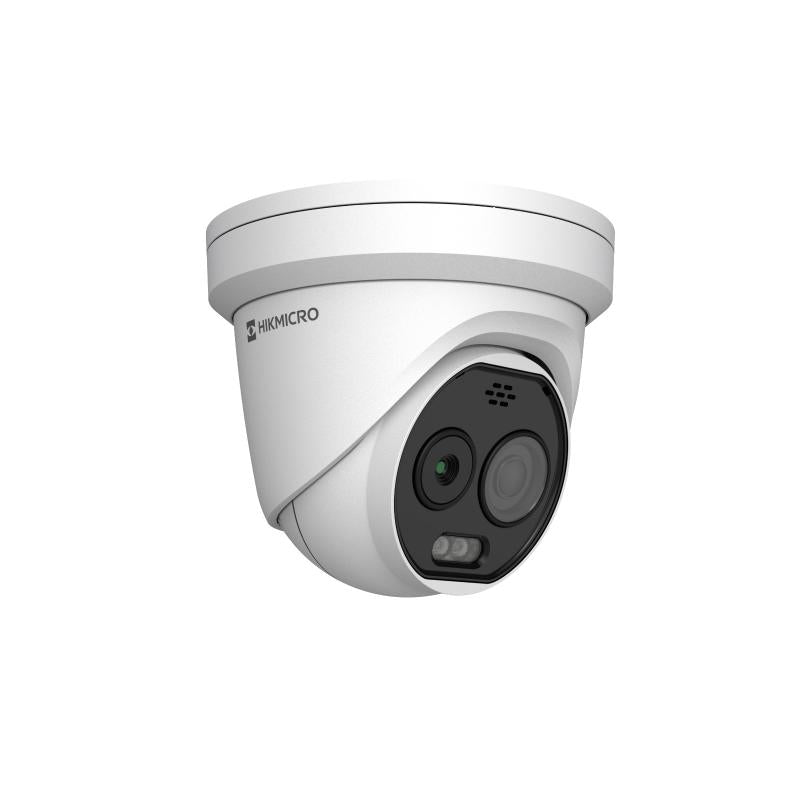

HIKMICRO HM-TD1228-7/G1/T3A Thermal & Optical Bi-Spectrum Turret Camera, 256 × 192 Thermal, 5MP Optical

What it does

The HM-TD1228-7/G1/T3A combines a thermal module, using a Vanadium Oxide Uncooled Focal Plane Arrays sensor at 256 × 192 with a 12 μm pixel pitch and 8 μm to 14 μm spectral range, and an optical module with a 1/2.7" Progressive Scan CMOS at 5MP, 2688 × 1944.

Bi-spectrum image fusion displays the details of the optical channel on the thermal channel, and picture in picture displays a partial image of the thermal channel on the full screen of the optical channel. Target coloration is supported in white hot and black hot mode.

VCA covers 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total. Temperature measurement offers 3 rule types (point, area, line), 21 rules in total, over a temperature range of -20 °C to 150 °C with an accuracy of ±8°C (±14.4°F).

Where it is used

The camera has an IP67 Standard protection level with TVS 6000V lightning protection, surge protection and voltage transient protection. Its working temperature is -40°C to 65°C (-40°F to 149°F), with humidity 95% or less.

Installation notes

Power supply is 12 VDC ± 25% through a φ 5.5 mm coaxial power plug, or PoE (802.3at, class 4). Power consumption is max. 16W on either supply.

Interfaces are 1 RJ45 10 M/100 M self-adaptive Ethernet interface, 1 RS-485 interface (half duplex), 1 alarm input (0-5 VDC), 2 alarm outputs, 1 audio input (3.5 mm Mic in/Line in) and a 12 VDC, max. 1W power output.

Network storage covers a MicroSD/SDHC/SDXC card (up to 512 G) for local storage, NAS (NFS, SMB/CIFS) and Auto Network Replenishment (ANR). The camera measures 138.3 mm × 138.3 mm × 121.6 mm and weighs 975.6 g.

Day to day

The camera works with the iVMS-4200 and Hik-Connect clients and supports simultaneous live view of up to 20 channels. Color palettes: 17 types.

For audible alarms it covers two types (VCA and Temperature Exception), with 2 preset voice alerts (one for each) and 6 importable user-defined voice alerts (6 options shared in the two types). The visual alarm is a white light alarm with adjustable flashing frequencies.
