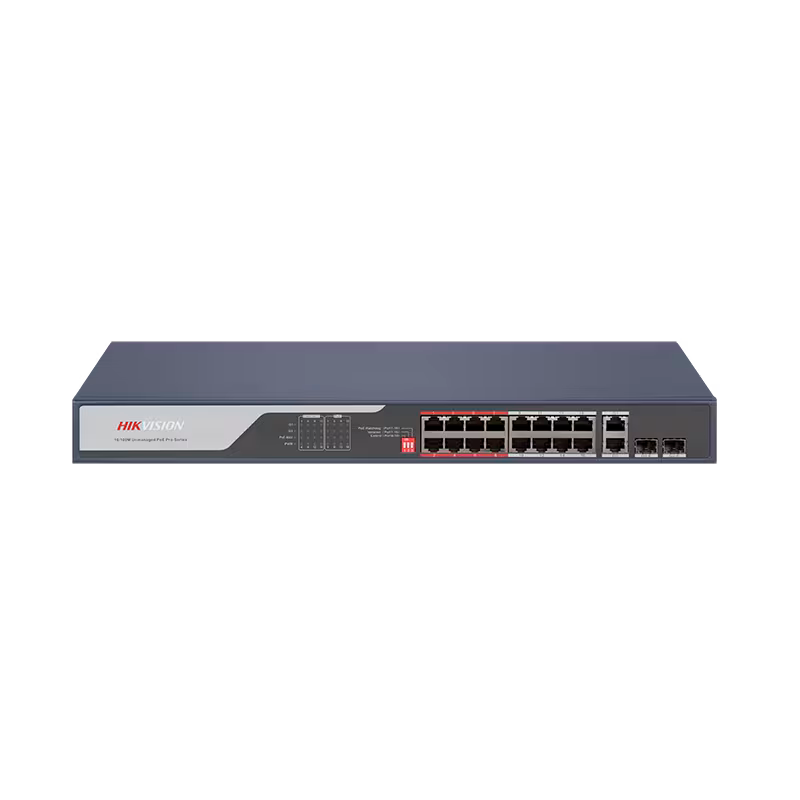

Hikvision DS-3E0318P-E 100 Mbps Long Range PoE Switch, 16 PoE Ports, 225 W PoE Budget
About this product
The Hikvision DS-3E0318P-E is a layer 2, 100 Mbps long range PoE switch with 16 × 10/100 Mbps PoE ports and 2 × Gigabit combo ports, for powering and connecting PoE cameras. It has a 225 W PoE power budget, long range PoE of up to 300 m on ports 9 to 16, and a PoE watchdog that auto detects and restarts cameras that do not respond.
Key features
- 16 × 10/100 Mbps PoE ports and 2 × Gigabit combo ports
- 225 W PoE power budget, max. port power 30 W
- PoE standards IEEE 802.3af and IEEE 802.3at
- Long range PoE on ports 9 to 16: up to 300 m
- PoE watchdog on ports 1 to 16 restarts cameras that do not respond
- Port isolation mode on ports 1 to 16 to improve network security
- VIP ports 1 to 8 for preferential forwarding when bandwidth is short
- 6 kV surge protection
Frequently asked questions
What is the PoE power budget of the Hikvision DS-3E0318P-E?
The PoE power budget is 225 W, with max. port power of 30 W.
How far can the DS-3E0318P-E run PoE?
Ports 9 to 16 support long range PoE of up to 300 m. Long range performance may vary depending on camera model or cable condition.
Which PoE standards does the DS-3E0318P-E support?
IEEE 802.3af and IEEE 802.3at, with PoE on ports 1 to 16.
Can the DS-3E0318P-E be rack mounted?
Yes. The installation mode is rack, and the switch is equipped with mounting ears.
What happens if a camera on the DS-3E0318P-E stops responding?
The PoE watchdog on ports 1 to 16 auto detects and restarts cameras that do not respond.
What are the VIP ports on the DS-3E0318P-E for?
On ports 1 to 8, data on VIP ports is preferentially forwarded when bandwidth resources are insufficient.
Specifications
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-3E0318P-E |
| Manufacturer Part Number (MPN) | DS-3E0318P-E |
| Ports | 16 × 10/100 Mbps PoE port, 2 × Gigabit combo |
| PoE standard | IEEE 802.3af, IEEE 802.3at |
| PoE port | Ports 1 to 16 |
| Max. port power | 30 W |
| PoE power budget | 225 W |
| Long range | Ports 9 to 16: up to 300 m |
| Port isolation | Ports 1 to 16 |
| PoE watchdog | Ports 1 to 16 |
| VIP port | Ports 1 to 8 |
| Switching capacity | 7.20 Gbps |
| Packet forwarding rate | 5.36 Mpps |
| MAC address table | 16 K |
| Internal cache | 4 Mbits |
| Power supply | 100~240 V AC, 50/60 Hz, Max. 4 A |
| Max. power consumption | Max. 250 W |
| Power consumption in idle | 25 W |
| Installation mode | Rack (equipped with mounting ears) |
| Surge protection | 6 kV |
| Shell | Metal material |
| Net weight | 2.6 kg (5.73 lb) |
| Dimensions (W × H × D) | 440.0 mm × 44.0 mm × 220.8 mm (17.3'' × 1.7'' × 8.7'') |
| Operating temperature | 0 °C to 45 °C (32 °F to 113 °F) |
| Operating humidity | 5% to 95% (no condensation) |
