Hikvision DS-3E0326P-E 100 Mbps Long Range PoE Switch, 24 PoE Ports, 370 W PoE Budget
About this product

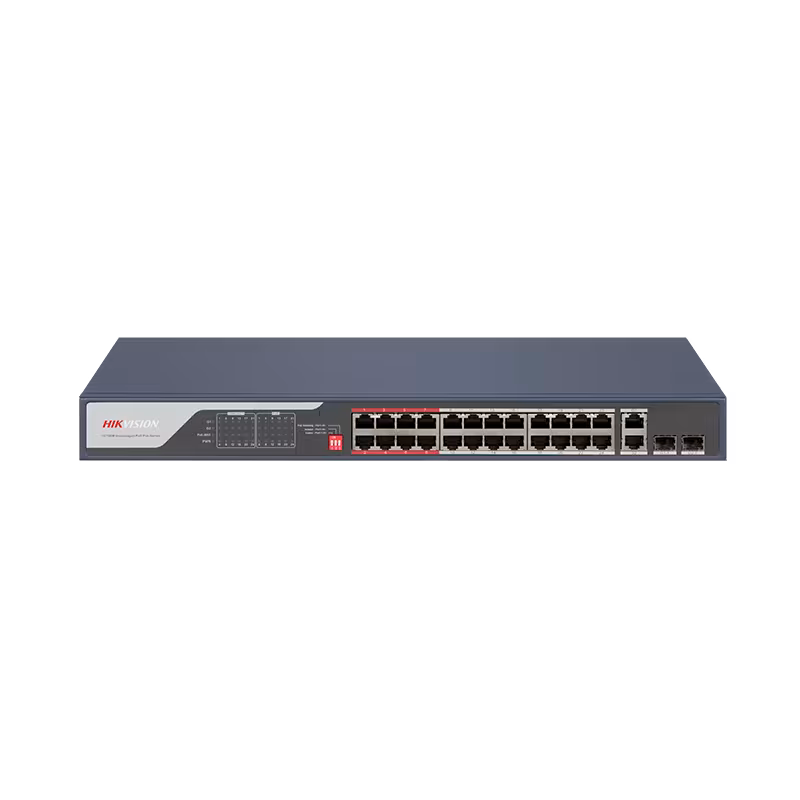

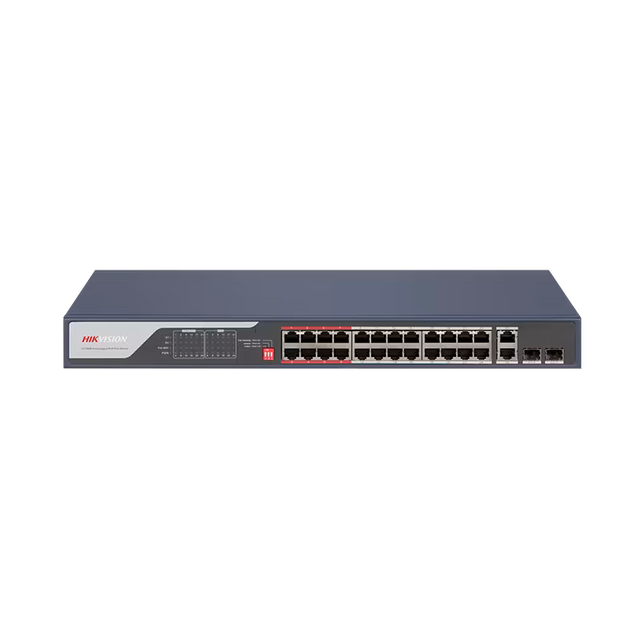

The Hikvision DS-3E0326P-E is a layer 2, 100 Mbps long range PoE switch with 24 × 10/100 Mbps PoE ports and 2 × Gigabit combo uplink ports, for powering and connecting PoE cameras. It has a 370 W PoE power budget, long range PoE of up to 300 m on ports 17 to 24, and a PoE watchdog that auto detects and restarts cameras that do not respond.
Key features
- 24 × 10/100 Mbps PoE ports and 2 × Gigabit combo uplink ports
- 370 W PoE power budget, max. port power 30 W
- PoE standards IEEE 802.3af and IEEE 802.3at
- Long range PoE on ports 17 to 24: up to 300 m
- PoE watchdog on ports 1 to 24 restarts cameras that do not respond
- Port isolation mode on ports 1 to 24 to improve network security
- VIP ports 1 to 8 for preferential forwarding when bandwidth is short
- 6 kV surge protection
Frequently asked questions
What is the PoE power budget of the Hikvision DS-3E0326P-E?
The PoE power budget is 370 W, with max. port power of 30 W.
How far can the DS-3E0326P-E run PoE?
Ports 17 to 24 support long range PoE of up to 300 m. Long range performance may vary depending on camera model or cable condition.
Which PoE standards does the DS-3E0326P-E support?
IEEE 802.3af and IEEE 802.3at, with PoE on ports 1 to 24.
Can the DS-3E0326P-E be rack mounted?
Yes. The installation mode is rack, and the switch is equipped with mounting ears.
What happens if a camera on the DS-3E0326P-E stops responding?
The PoE watchdog on ports 1 to 24 auto detects and restarts cameras that do not respond.
What are the VIP ports on the DS-3E0326P-E for?
On ports 1 to 8, data on VIP ports is preferentially forwarded when bandwidth resources are insufficient.
Specifications
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-3E0326P-E |
| Manufacturer Part Number (MPN) | DS-3E0326P-E |
| Ports | 24 × 10/100 Mbps PoE port, 2 × Gigabit combo |
| PoE standard | IEEE 802.3af; IEEE 802.3at |
| PoE port | Ports 1 to 24 |
| Max. port power | 30 W |
| PoE power budget | 370 W |
| Long range | Ports 17 to 24: up to 300 m |
| Port isolation | Ports 1 to 24 |
| PoE watchdog | Ports 1 to 24 |
| VIP port | Ports 1 to 8 |
| Switching capacity | 8.80 Gbps |
| Packet forwarding rate | 6.55 Mpps |
| MAC address table | 16 K |
| Internal cache | 4 Mbits |
| Power supply | 100~240 V AC, 50/60 Hz, Max. 6.5 A |
| Max. power consumption | Max. 400 W |
| Power consumption in idle | 30 W |
| Installation mode | Rack (equipped with mounting ears) |
| Surge protection | 6 kV |
| Shell | Metal material |
| Net weight | 2.785 kg (6.14 lb) |
| Operating temperature | 0 °C to 45 °C (32 °F to 113 °F) |
| Operating humidity | 5% to 95% (no condensation) |
