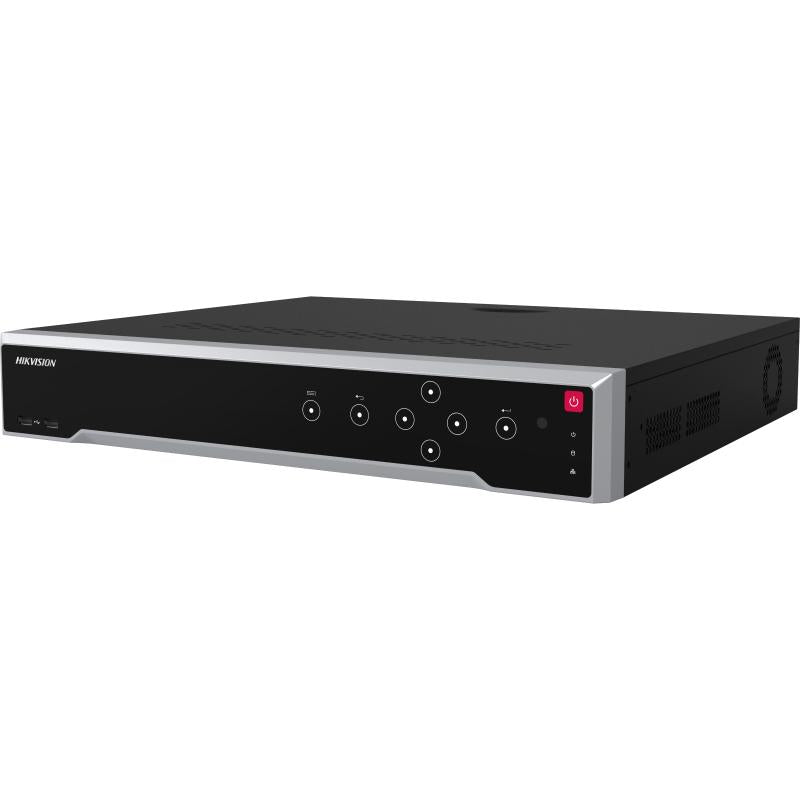

Hikvision DS-7716NI-M4-06TB-H 16-ch 1.5U 8K Network Video Recorder, 6TB, 4 SATA Interfaces

Visit CCTV Recorders & Storage
Free Delivery
Save £158.70

About this product

The Hikvision DS-7716NI-M4-06TB-H is a 16-ch 1.5U 8K NVR for IP CCTV systems, taking up to 16-ch IP camera inputs with up to 32 MP resolution; the NVR supports up to 8-ch 32/24/16 MP IP video inputs, all channels for less than 16 MP. This version comes with 6TB of storage, and the recorder outputs up to 8K (7680 × 4320)/30Hz on HDMI 1.

Key features

  • Up to 16-ch IP camera inputs; up to 8-ch 32/24/16 MP IP video inputs, all channels for less than 16 MP
  • H.265+/H.265/H.264+/H.264 video formats
  • Up to 256 Mbps incoming bandwidth
  • HDMI 1 output up to 8K (7680 × 4320)/30Hz, plus HDMI 2 and VGA outputs
  • 4 SATA interfaces, up to 16 TB capacity for each disk, plus 1 eSATA interface
  • 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
  • Up to 8-ch IP speakers can be connected
  • 19-inch rack-mounted 1.5U chassis

Frequently asked questions

How many cameras can the DS-7716NI-M4-06TB-H record?

It takes up to 16-ch IP camera inputs at up to 32 MP resolution. The NVR supports up to 8-ch 32/24/16 MP IP video inputs, all channels for less than 16 MP.

What storage does it have?

This version comes with 6TB of storage. The recorder has 4 SATA interfaces with up to 16 TB capacity for each disk, plus 1 eSATA interface.

What display outputs does it have?

HDMI 1 up to 8K (7680 × 4320)/30Hz, HDMI 2 up to 4K (3840 × 2160)/60Hz and VGA at 1920 × 1080/60Hz. When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p.

Is it rack-mountable?

Yes. It uses a 19-inch rack-mounted 1.5U chassis measuring 445 × 400 × 75 mm.

What power does it need?

100 to 240 VAC, 50 to 60 Hz, with consumption of ≤ 15 W (without HDD).

How many channels can it play back at once?

Synchronous playback covers 16-ch. Decoding capability ranges from 2-ch@32 MP (30 fps) to 16-ch@5 MP (30 fps).

Save £158.70
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Technical Details
Specifications
Brand
Hikvision
Model
DS-7716NI-M4-06TB-H
Manufacturer Part Number (MPN)
DS-7716NI-M4-06TB-H
IP Video Input
16-ch, up to 32 MP resolution (*: the NVR supports up to 8-ch 32/24/16 MP IP video inputs, all channels for less than 16 MP)
Incoming Bandwidth
256 Mbps
Outgoing Bandwidth
256 Mbps
HDMI 1 Output
8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz
HDMI 2 Output
4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz (when HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p)
VGA Output
1920 × 1080/60Hz
Video Output Mode
HDMI1/VGA simultaneous output, HDMI2/VGA independent output
Audio Output
1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio
1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Decoding Format
H.265+/H.265/H.264+/H.264
Decoding Capability
2-ch@32 MP (30 fps); 3-ch@24 MP (30 fps); 4-ch@16MP (30 fps); 6-ch@12MP (30 fps); 10-ch@8 MP (30 fps); 13-ch@6 MP (30 fps); 16-ch@5 MP (30 fps)
Synchronous Playback
16-ch
Dual-Stream Recording
Support
Remote Connection
128
Network Interface
2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
Camera Access Protocol
ONVIF (Version 2.5), RTSP
RAID Type
N/A
SATA
4 SATA interfaces
eSATA
1 eSATA interface
Capacity
Up to 16 TB capacity for each disk
Storage supplied
6TB
Serial Interface
2 RS-485 (half-duplex), 1 RS-232
Alarm In/Out
16/9
USB Interface
Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
DC 12V
12 VDC, 1 A power output
Power Supply
100 to 240 VAC, 50 to 60 Hz
Consumption
≤ 15 W (without HDD)
Working Temperature
-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity
10% to 90%
Chassis
19-inch rack-mounted 1.5U chassis
Dimension (W × D × H)
445 × 400 × 75 mm (17.5" × 15.7" × 3.0")
Weight
≤ 5 kg (without HDD, 11 lb.)
Live View & Playback Stream Encryption
AES128
Secure Boot
Support
Specifications

Specifications

Brand Hikvision
Model DS-7716NI-M4-06TB-H
Manufacturer Part Number (MPN) DS-7716NI-M4-06TB-H
IP Video Input 16-ch, up to 32 MP resolution (*: the NVR supports up to 8-ch 32/24/16 MP IP video inputs, all channels for less than 16 MP)
Incoming Bandwidth 256 Mbps
Outgoing Bandwidth 256 Mbps
HDMI 1 Output 8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz
HDMI 2 Output 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz (when HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p)
VGA Output 1920 × 1080/60Hz
Video Output Mode HDMI1/VGA simultaneous output, HDMI2/VGA independent output
Audio Output 1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Decoding Format H.265+/H.265/H.264+/H.264
Decoding Capability 2-ch@32 MP (30 fps); 3-ch@24 MP (30 fps); 4-ch@16MP (30 fps); 6-ch@12MP (30 fps); 10-ch@8 MP (30 fps); 13-ch@6 MP (30 fps); 16-ch@5 MP (30 fps)
Synchronous Playback 16-ch
Dual-Stream Recording Support
Remote Connection 128
Network Interface 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
Camera Access Protocol ONVIF (Version 2.5), RTSP
RAID Type N/A
SATA 4 SATA interfaces
eSATA 1 eSATA interface
Capacity Up to 16 TB capacity for each disk
Storage supplied 6TB
Serial Interface 2 RS-485 (half-duplex), 1 RS-232
Alarm In/Out 16/9
USB Interface Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
DC 12V 12 VDC, 1 A power output
Power Supply 100 to 240 VAC, 50 to 60 Hz
Consumption ≤ 15 W (without HDD)
Working Temperature -10 °C to 55 °C (14 °F to 131 °F)
Working Humidity 10% to 90%
Chassis 19-inch rack-mounted 1.5U chassis
Dimension (W × D × H) 445 × 400 × 75 mm (17.5" × 15.7" × 3.0")
Weight ≤ 5 kg (without HDD, 11 lb.)
Live View & Playback Stream Encryption AES128
Secure Boot Support

Hikvision DS-7716NI-M4-06TB-H 16-ch 1.5U 8K Network Video Recorder

Hikvision DS-7716NI-M4-06TB-H 16-ch 1.5U 8K Network Video Recorder, 6TB, 4 SATA Interfaces

What it does

The DS-7716NI-M4 is a 16-ch 1.5U 8K NVR. It takes up to 16-ch IP camera inputs at up to 32 MP resolution, with the limit that the NVR supports up to 8-ch 32/24/16 MP IP video inputs, all channels for less than 16 MP.

It handles H.265+/H.265/H.264+/H.264 video formats with up to 256 Mbps incoming and 256 Mbps outgoing bandwidth, and has up to 40 x 1080p@ 30fps decoding capacity.

This version, DS-7716NI-M4-06TB-H, comes with 6TB of storage.

Installation notes

The recorder sits in a 19-inch rack-mounted 1.5U chassis measuring 445 × 400 × 75 mm and weighing ≤ 5 kg (without HDD). It runs from 100 to 240 VAC, 50 to 60 Hz, with consumption of ≤ 15 W (without HDD).

It has 4 SATA interfaces with up to 16 TB capacity for each disk and 1 eSATA interface; RAID Type is listed as N/A. Network connection is through 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces, and cameras connect over ONVIF (Version 2.5) or RTSP.

Other interfaces include 16 alarm inputs and 9 alarm outputs, 2 RS-485 (half-duplex) and 1 RS-232, front panel 2 × USB 2.0 and rear panel 1 × USB 3.0, and a 12 VDC, 1 A power output.

The working temperature is -10 °C to 55 °C and the working humidity 10% to 90%.

Day to day

HDMI 1 outputs up to 8K (7680 × 4320)/30Hz and HDMI 2 up to 4K (3840 × 2160)/60Hz; when HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p. VGA outputs 1920 × 1080/60Hz.

Synchronous playback covers 16-ch, and live view and playback streams can be encrypted with AES128. Up to 8-ch IP speakers can be connected, and two-way audio runs over 1-ch RCA using the audio input.

Hikvision DS-7716NI-M4-06TB-H 16-ch 1.5U 8K Network Video Recorder
Hikvision

Hikvision DS-7716NI-M4-06TB-H 16-ch 1.5U 8K Network Video Recorder, 6TB, 4 SATA Interfaces

£793.50 £952.20

The Hikvision DS-7716NI-M4-06TB-H is a 16-ch 1.5U 8K NVR for IP CCTV systems, taking up to 16-ch IP camera inputs with up to 32 MP resolution; the NVR supports up to 8-ch 32/24/16 MP IP video inputs, all channels for less than 16 MP. This version comes with 6TB of storage, and the recorder outputs up to 8K (7680 × 4320)/30Hz on HDMI 1.

Key features

Frequently asked questions

How many cameras can the DS-7716NI-M4-06TB-H record?

It takes up to 16-ch IP camera inputs at up to 32 MP resolution. The NVR supports up to 8-ch 32/24/16 MP IP video inputs, all channels for less than 16 MP.

What storage does it have?

This version comes with 6TB of storage. The recorder has 4 SATA interfaces with up to 16 TB capacity for each disk, plus 1 eSATA interface.

What display outputs does it have?

HDMI 1 up to 8K (7680 × 4320)/30Hz, HDMI 2 up to 4K (3840 × 2160)/60Hz and VGA at 1920 × 1080/60Hz. When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p.

Is it rack-mountable?

Yes. It uses a 19-inch rack-mounted 1.5U chassis measuring 445 × 400 × 75 mm.

What power does it need?

100 to 240 VAC, 50 to 60 Hz, with consumption of ≤ 15 W (without HDD).

How many channels can it play back at once?

Synchronous playback covers 16-ch. Decoding capability ranges from 2-ch@32 MP (30 fps) to 16-ch@5 MP (30 fps).
