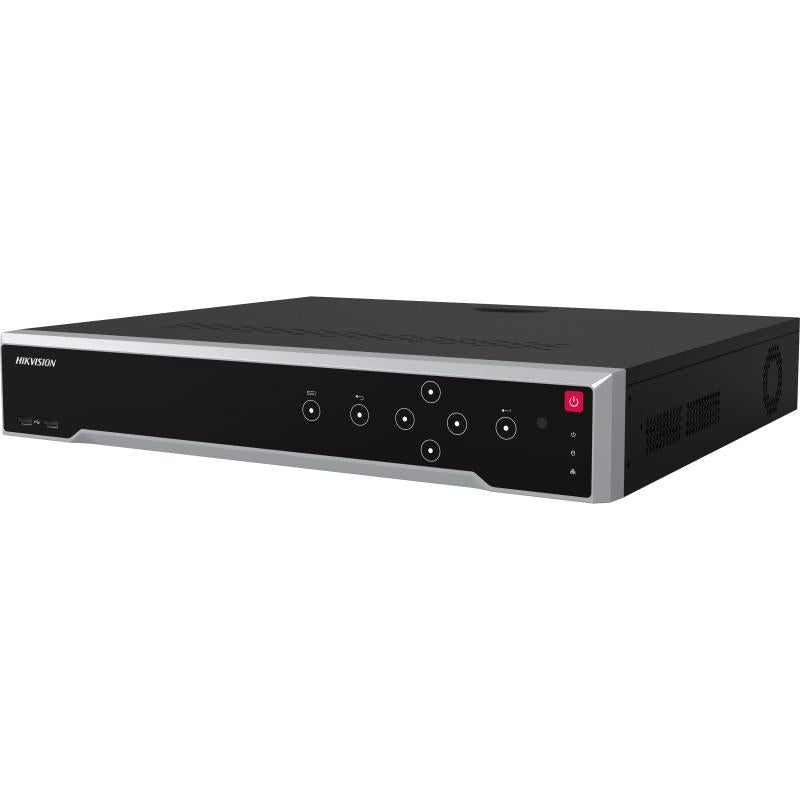

Hikvision DS-7716NI-M4/8TB-W 16-ch 1.5U 8K NVR, 8TB, 256 Mbps Incoming Bandwidth
About this product
The Hikvision DS-7716NI-M4/8TB-W is a 16-ch 1.5U 8K NVR for IP CCTV systems, supplied with 8TB of storage, recording up to 16-ch IP camera inputs in H.265+/H.265/H.264+/H.264 video formats. It supports up to 32 MP resolution, with up to 8-ch at 32/24/16 MP and all channels for less than 16 MP, and outputs up to 8K (7680 × 4320)/30Hz on HDMI 1.
Key features
- Up to 16-ch IP camera inputs
- Up to 32 MP resolution: up to 8-ch 32/24/16 MP IP video inputs, all channels for less than 16 MP
- H.265+/H.265/H.264+/H.264 video formats
- Up to 256 Mbps incoming bandwidth
- Up to 40 x 1080p@ 30fps decoding capacity
- HDMI 1 output up to 8K (7680 × 4320)/30Hz; when HDMI 1 is at 8K, HDMI 2 is limited to a maximum of 1080p
- 4 SATA interfaces with up to 16 TB capacity for each disk, plus 1 eSATA interface
- Up to 8-ch IP speakers can be connected
Frequently asked questions
How many cameras does the DS-7716NI-M4/8TB-W support, and at what resolution?
It takes up to 16-ch IP camera inputs at up to 32 MP resolution. Up to 8-ch can be 32/24/16 MP IP video inputs, with all channels for less than 16 MP.
How much storage does it have?
This version is supplied with 8TB of storage. The NVR has 4 SATA interfaces with up to 16 TB capacity for each disk, plus 1 eSATA interface.
Can it output 8K to a monitor?
Yes. HDMI 1 outputs up to 8K (7680 × 4320)/30Hz. When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p.
What power does it need?
It runs on 100 to 240 VAC, 50 to 60 Hz, with consumption of ≤ 15 W (without HDD).
Can it be rack mounted?
Yes. It has a 19-inch rack-mounted 1.5U chassis measuring 445 × 400 × 75 mm.
Does it work with IP speakers?
Yes. Up to 8-ch IP speakers can be connected.
Specifications
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-7716NI-M4/8TB-W |
| Manufacturer Part Number (MPN) | DS-7716NI-M4/8TB-W |
| IP Video Input | 16-ch, Up to 32 MP resolution (up to 8-ch 32/24/16 MP IP video inputs) |
| Incoming Bandwidth | 256 Mbps |
| Outgoing Bandwidth | 256 Mbps |
| HDMI 1 Output | 8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz |
| HDMI 2 Output | 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz (when HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p) |
| VGA Output | 1920 × 1080/60Hz |
| Video Output Mode | HDMI1/VGA simultaneous output, HDMI2/VGA independent output |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input) |
| Decoding Format | H.265+/H.265/H.264+/H.264 |
| Synchronous Playback | 16-ch |
| Remote Connection | 128 |
| Network Interface | 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces |
| Camera Access Protocol | ONVIF(Version 2.5), RTSP |
| SATA | 4 SATA interfaces |
| Capacity | Up to 16 TB capacity for each disk |
| ESATA | 1 eSATA interface |
| Serial Interface | 2 RS-485 (half-duplex), 1 RS-232 |
| Alarm In/Out | 16/9 |
| USB Interface | Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 |
| DC 12V | 12 VDC, 1 A power output |
| Power Supply | 100 to 240 VAC, 50 to 60 Hz |
| Consumption | ≤ 15 W (without HDD ) |
| Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity | 10% to 90% |
| Chassis | 19-inch rack-mounted 1.5U chassis |
| Dimension (W × D × H) | 445 × 400 × 75 mm ( 17.5"× 15.7" × 3.0") |
| Obtained Certification | CE, FCC, RoHS, REACH |
| Cyber Security | EN 303645 |
