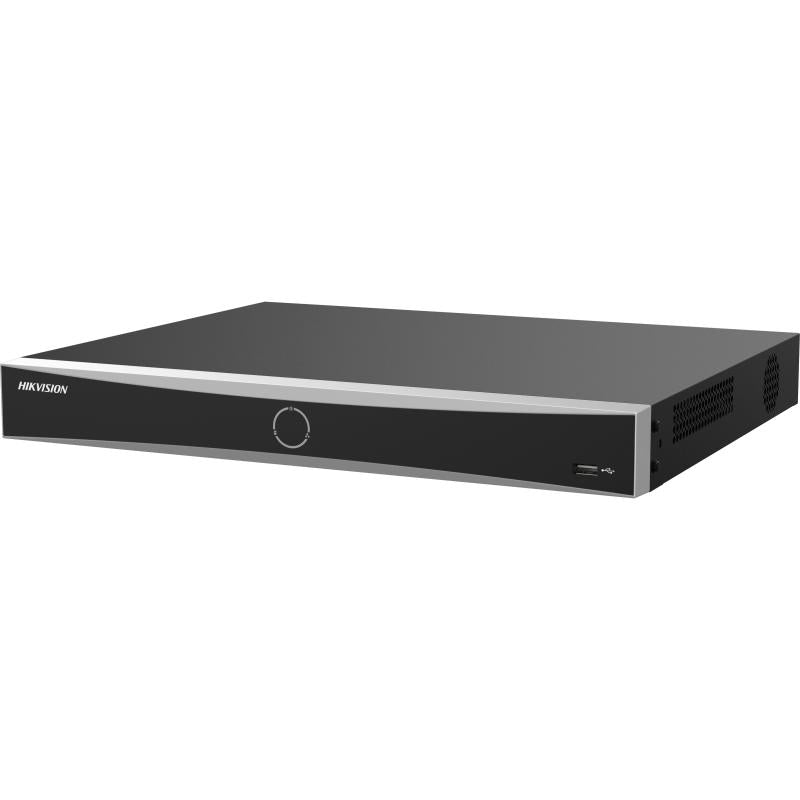

Hikvision DS-7616NXI-K2/16P/VPro 16-ch 1U AcuSeek K VPro NVR, 16 PoE Ports, 2 SATA
Free Delivery
Save £102.24
About this product
The Hikvision DS-7616NXI-K2/16P/VPro is a 16-ch 1U AcuSeek K VPro network video recorder for IP camera systems, with up to 16-ch IP camera inputs and plug & play connection through 16 Power-over-Ethernet (PoE) interfaces. With cameras that support Hikvision AcuSense Technology and have the AcuSearch function enabled, it supports AcuSeek in all channels, and its perimeter protection is built to reduce false alarms.
Key features
- Up to 16-ch IP camera inputs
- 16 PoE interfaces (IEEE 802.3af/at), PoE power ≤ 200W
- AcuSeek in all channels when cameras support Hikvision AcuSense Technology and have enabled AcuSearch, capable of modeling 50,000 targets/day
- Recording resolution up to 12 MP
- 2 SATA interfaces, up to 16 TB capacity for each HDD
- HDMI output up to 4K (3840 × 2160)/30 Hz, with HDMI/VGA independent output
- 4 alarm inputs and 1 alarm output
Frequently asked questions
How many cameras can the DS-7616NXI-K2/16P/VPro take?
It takes up to 16-ch IP camera inputs, with 16 PoE interfaces to IEEE 802.3af/at for plug & play camera connection.
What is the PoE power budget?
PoE power is ≤ 200W across the 16 PoE interfaces.
How many hard drives does it take?
It has 2 SATA interfaces, with up to 16 TB capacity for each HDD.
What does AcuSeek need from the cameras?
If the cameras support Hikvision AcuSense Technology and have enabled the AcuSearch function, the NVR supports AcuSeek in all channels, capable of modeling 50,000 targets/day.
What camera resolutions can it record and decode?
Recording resolution goes up to 12 MP. Decoding capacity is up to 4-ch@12 MP or 6-ch@8 MP or 12-ch@4 MP or 16-ch@2 MP; with AI on it is 2-channel 12 MP@30 fps or 12-channel 2 MP@30fps.
Does it have alarm inputs and outputs?
Yes. Alarm In/Out is 4/1.
Technical Details
Specifications
Brand
Hikvision
Model
DS-7616NXI-K2/16P/VPro
Manufacturer Part Number (MPN)
DS-7616NXI-K2/16P/VPro
AI By NVR
Facial recognition, perimeter protection, motion detection 2.0, AcuSearch, AcuSeek
AI By NVR And Camera
Facial recognition, perimeter protection, motion detection2.0, ANPR, VCA
AcuSearch (By Camera)
All channels (The camera should enable AcuSearch function)
AcuSeek Performance
If the cameras support Hikvision AcuSense Technology and have enabled AcuSearch function, the NVR supports AcuSeek in all channels, capable of modeling 50,000 targets/day.
AcuSeek Search Language
English
Perimeter Protection (By NVR)
Video analysis (HD network camera, H.264/H.265) for human and vehicle recognition to reduce false alarm. Up to 4 MP: 2-ch; 5 MP to 8 MP: 1-ch
Perimeter Protection (By Camera)
All channels
Facial Detection And Analytics
Face picture comparison, human face capture, face picture search
Face Picture Library
Up to 16 face picture libraries, with up to 50,000 face pictures in total (each picture ≤ 1 MB, total capacity ≤ 800 MB)
Face Picture Comparison
8-ch
Facial Detection And Analytics Performance
Up to 4 MP: 2-ch; 5 MP to 8 MP: 1-ch
Motion Detection 2.0 (By NVR)
All channels, up to 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarm
IP Video Input
16-ch
Incoming Bandwidth
160 Mbps
Outgoing Bandwidth
160 Mbps
IP Speaker Input
4-ch
Video Output Mode
HDMI/VGA independent output
HDMI 1 Output
4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1080P (1920 × 1080)/60 Hz, UXGA (1600 × 1200)/60 Hz, SXGA (1280 × 1024)/60 Hz, 720P (1280 × 720)/60 Hz
VGA 1 Output
1080P (1920 × 1080)/60 Hz, UXGA (1600 × 1200)/60 Hz, SXGA (1280 × 1024)/60 Hz, 720P (1280 × 720)/60 Hz
Audio Input
Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Audio Output
1-ch, RCA (Linear, 1 KΩ)
Decoding Format
H.265, H.265+, H.264, H264+
Recording Resolution
12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Playback Mode
Normal/Smart, Event, Tag, External File
Synchronous Playback
16-ch
Live View Window Division
1/2/4/6/8/9/16
Decoding Capability (AI on)
2-channel 12 MP@30 fps, 3-channel 8 MP@30 fps, 4-channel 6 MP@30 fps, 6-channel 4 MP@30 fps, 8-channel 3 MP@30fps, 12-channel 2 MP@30fps
Decoding Capability (AI off)
4-channel 12 MP@30 fps, 6-channel 8 MP@30 fps, 8-channel 6 MP@30 fps, 12-channel 4 MP@30 fps, 16-channel 3 MP@30fps, 16-channel 2 MP@30fps
Audio Compression
G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2
Network Interface
1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Network Protocol
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
Remote Connection
128
PoE Interface
16, RJ-45 10/100 Mbps self-adaptive Ethernet interfaces
PoE Power
≤ 200W
PoE Standard
IEEE 802.3af/at
SATA
2 SATA interfaces
Capacity
Up to 16 TB capacity for each HDD
Alarm In/Out
4/1
USB Interface
Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
Power Supply
200 to 240 VAC, 50 to 60 Hz
Consumption
≤ 15 W (without HDD)
Working Temperature
-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity
10 to 90 %
Dimension (W × D × H)
384 mm × 317 mm × 52 mm (15.1 × 12.5 × 2.0 inch)
Weight
≤ 3 kg (without HDD, 5.5 lb.)
Obtained Certification
CE,CB,REACH,WEEE,UKCA,RCM,IC
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-7616NXI-K2/16P/VPro |
| Manufacturer Part Number (MPN) | DS-7616NXI-K2/16P/VPro |
| AI By NVR | Facial recognition, perimeter protection, motion detection 2.0, AcuSearch, AcuSeek |
| AI By NVR And Camera | Facial recognition, perimeter protection, motion detection2.0, ANPR, VCA |
| AcuSearch (By Camera) | All channels (The camera should enable AcuSearch function) |
| AcuSeek Performance | If the cameras support Hikvision AcuSense Technology and have enabled AcuSearch function, the NVR supports AcuSeek in all channels, capable of modeling 50,000 targets/day. |
| AcuSeek Search Language | English |
| Perimeter Protection (By NVR) | Video analysis (HD network camera, H.264/H.265) for human and vehicle recognition to reduce false alarm. Up to 4 MP: 2-ch; 5 MP to 8 MP: 1-ch |
| Perimeter Protection (By Camera) | All channels |
| Facial Detection And Analytics | Face picture comparison, human face capture, face picture search |
| Face Picture Library | Up to 16 face picture libraries, with up to 50,000 face pictures in total (each picture ≤ 1 MB, total capacity ≤ 800 MB) |
| Face Picture Comparison | 8-ch |
| Facial Detection And Analytics Performance | Up to 4 MP: 2-ch; 5 MP to 8 MP: 1-ch |
| Motion Detection 2.0 (By NVR) | All channels, up to 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarm |
| IP Video Input | 16-ch |
| Incoming Bandwidth | 160 Mbps |
| Outgoing Bandwidth | 160 Mbps |
| IP Speaker Input | 4-ch |
| Video Output Mode | HDMI/VGA independent output |
| HDMI 1 Output | 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1080P (1920 × 1080)/60 Hz, UXGA (1600 × 1200)/60 Hz, SXGA (1280 × 1024)/60 Hz, 720P (1280 × 720)/60 Hz |
| VGA 1 Output | 1080P (1920 × 1080)/60 Hz, UXGA (1600 × 1200)/60 Hz, SXGA (1280 × 1024)/60 Hz, 720P (1280 × 720)/60 Hz |
| Audio Input | Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input) |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Decoding Format | H.265, H.265+, H.264, H264+ |
| Recording Resolution | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Playback Mode | Normal/Smart, Event, Tag, External File |
| Synchronous Playback | 16-ch |
| Live View Window Division | 1/2/4/6/8/9/16 |
| Decoding Capability (AI on) | 2-channel 12 MP@30 fps, 3-channel 8 MP@30 fps, 4-channel 6 MP@30 fps, 6-channel 4 MP@30 fps, 8-channel 3 MP@30fps, 12-channel 2 MP@30fps |
| Decoding Capability (AI off) | 4-channel 12 MP@30 fps, 6-channel 8 MP@30 fps, 8-channel 6 MP@30 fps, 12-channel 4 MP@30 fps, 16-channel 3 MP@30fps, 16-channel 2 MP@30fps |
| Audio Compression | G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2 |
| Network Interface | 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| Network Protocol | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS |
| Remote Connection | 128 |
| PoE Interface | 16, RJ-45 10/100 Mbps self-adaptive Ethernet interfaces |
| PoE Power | ≤ 200W |
| PoE Standard | IEEE 802.3af/at |
| SATA | 2 SATA interfaces |
| Capacity | Up to 16 TB capacity for each HDD |
| Alarm In/Out | 4/1 |
| USB Interface | Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0 |
| Power Supply | 200 to 240 VAC, 50 to 60 Hz |
| Consumption | ≤ 15 W (without HDD) |
| Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity | 10 to 90 % |
| Dimension (W × D × H) | 384 mm × 317 mm × 52 mm (15.1 × 12.5 × 2.0 inch) |
| Weight | ≤ 3 kg (without HDD, 5.5 lb.) |
| Obtained Certification | CE,CB,REACH,WEEE,UKCA,RCM,IC |
