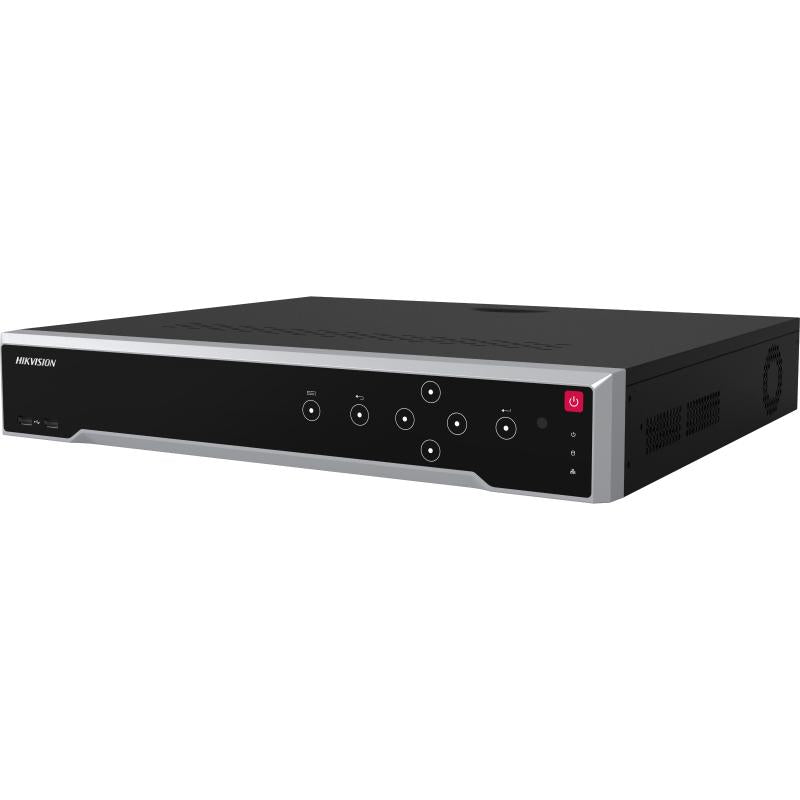

Hikvision DS-7716NI-M4-02TB-H 16-Channel 1.5U 8K NVR, 2TB, Up to 40 x 1080p@30fps Decoding

What it does

The NVR records up to 16-ch IP video input at up to 32 MP resolution. It supports up to 8-ch 32/24/16 MP IP video inputs, and all channels for less than 16 MP.

Decoding capability is 2-ch@32 MP (30 fps), 3-ch@24 MP (30 fps), 4-ch@16MP (30 fps), 6-ch@12MP (30 fps), 10-ch@8 MP (30 fps), 13-ch@6 MP (30 fps) or 16-ch@5 MP (30 fps), and synchronous playback is 16-ch. Dual-stream recording is supported.

HDMI 1 output runs up to 8K (7680 × 4320)/30Hz and HDMI 2 up to 4K (3840 × 2160)/60Hz; when HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p. The video output mode is HDMI1/VGA simultaneous output and HDMI2/VGA independent output.

Where it is used

It is built in a 19-inch rack-mounted 1.5U chassis, with a working temperature of -10 °C to 55 °C (14 °F to 131 °F) and working humidity of 10% to 90%.

Installation notes

This model is fitted with 2TB of storage. The NVR has 4 SATA interfaces with up to 16 TB capacity for each disk, and 1 eSATA interface.

Power supply is 100 to 240 VAC, 50 to 60 Hz, and consumption is ≤ 15 W (without HDD). It measures 445 × 400 × 75 mm (W × D × H) and weighs ≤ 5 kg (without HDD, 11 lb.).

Network connection is by 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces, and the camera access protocol is ONVIF(Version 2.5), RTSP. Incoming and outgoing bandwidth are each 256 Mbps.

Ctrl 12V is a controllable 12 VDC, 1 A power output for an external alarm device, turned on when the alarm output is triggered; the Ctrl 12V power is controlled by alarm output 9. A separate DC 12V output gives 12 VDC, 1 A.

Day to day

Up to 128 remote connections are supported. Two-way audio is 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input), and up to 8-ch IP speakers can be connected.

Cyber security features include secure boot, signed firmware and live view & playback stream encryption (AES128).
