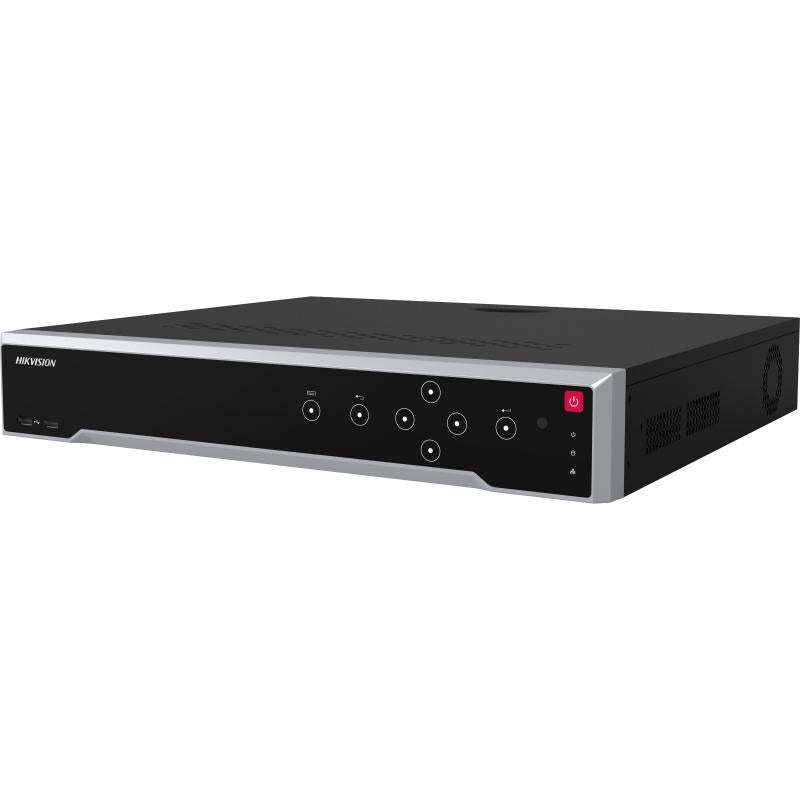

Hikvision DS-7716NI-M4/32TB-W 16-Channel 1.5U 8K NVR, 32TB, Up to 32 MP
Free Delivery
Save £454.94
About this product
The Hikvision DS-7716NI-M4/32TB-W is a 16-ch 1.5U 8K network video recorder for IP CCTV systems, supplied with 32TB of storage fitted.
Key features
- Up to 16-ch IP camera inputs at up to 32 MP resolution (up to 8-ch 32/24/16 MP IP video inputs)
- Up to 256 Mbps incoming bandwidth
- HDMI 1 output up to 8K (7680 × 4320)/30Hz plus HDMI 2 up to 4K (3840 × 2160)/60Hz
- 4 SATA interfaces, up to 16 TB capacity for each disk, plus 1 eSATA interface
- 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
- H.265+/H.265/H.264+/H.264 video formats
- Up to 8-ch IP speakers can be connected
Frequently asked questions
How many cameras does the DS-7716NI-M4/32TB-W support?
Up to 16-ch of IP cameras at up to 32 MP resolution; up to 8-ch can be 32/24/16 MP IP video inputs.
How much storage is fitted and can it be expanded?
This version comes with 32TB fitted. The recorder has 4 SATA interfaces with up to 16 TB capacity for each disk, plus 1 eSATA interface.
Can it output 8K video to a monitor?
Yes. HDMI 1 outputs up to 8K (7680 × 4320)/30Hz. When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p.
How many network ports does it have?
It has 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces.
Does it support RAID?
No. RAID type is listed as N/A for this recorder.
How is it mounted and powered?
It uses a 19-inch rack-mounted 1.5U chassis and runs from 100 to 240 VAC, 50 to 60 Hz, with consumption of ≤ 15 W (without HDD ).
Technical Details
Specifications
Brand
Hikvision
Model
DS-7716NI-M4/32TB-W
Manufacturer Part Number (MPN)
DS-7716NI-M4/32TB-W
IP Video Input
16-ch; Up to 32 MP resolution
High-resolution inputs
Up to 8-ch 32/24/16 MP IP video inputs
Incoming Bandwidth
256 Mbps
Outgoing Bandwidth
256 Mbps
HDMI 1 Output
8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz
HDMI 2 Output
4K (3840 × 2160)/60Hz (max. 1080p when HDMI 1 output resolution is 8K)
VGA Output
1920 × 1080/60Hz
Video Output Mode
HDMI1/VGA simultaneous output, HDMI2/VGA independent output
Audio Output
1-ch, RCA (Linear, 1 KΩ)
Decoding Format
H.265+/H.265/H.264+/H.264
Decoding Capability
2-ch@32 MP (30 fps); 3-ch@24 MP (30 fps); 4-ch@16MP (30 fps); 6-ch@12MP (30 fps); 10-ch@8 MP (30 fps); 13-ch@6 MP (30 fps); 16-ch@5 MP (30 fps)
Synchronous Playback
16-ch
Dual-Stream Recording
Support
Remote Connection
128
Network Interface
2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
Camera Access Protocol
ONVIF(Version 2.5), RTSP
RAID Type
N/A
SATA
4 SATA interfaces
ESATA
1 eSATA interface
Capacity
Up to 16 TB capacity for each disk
Fitted storage
32TB
Serial Interface
2 RS-485 (half-duplex), 1 RS-232
Alarm In/Out
16/9
USB Interface
Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
Ctrl 12V
Controllable 12 VDC, 1 A power output for external alarm device
DC 12V
12 VDC, 1 A power output
Power Supply
100 to 240 VAC, 50 to 60 Hz
Consumption
≤ 15 W (without HDD)
Working Temperature
-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity
10% to 90%
Chassis
19-inch rack-mounted 1.5U chassis
Dimension (W × D × H)
445 × 400 × 75 mm
Weight
≤ 5 kg (without HDD, 11 lb.)
Obtained Certification
CE, FCC, RoHS, REACH
Cyber Security
EN 303645
Live View & Playback Stream Encryption
Support : AES128
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-7716NI-M4/32TB-W |
| Manufacturer Part Number (MPN) | DS-7716NI-M4/32TB-W |
| IP Video Input | 16-ch; Up to 32 MP resolution |
| High-resolution inputs | Up to 8-ch 32/24/16 MP IP video inputs |
| Incoming Bandwidth | 256 Mbps |
| Outgoing Bandwidth | 256 Mbps |
| HDMI 1 Output | 8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz |
| HDMI 2 Output | 4K (3840 × 2160)/60Hz (max. 1080p when HDMI 1 output resolution is 8K) |
| VGA Output | 1920 × 1080/60Hz |
| Video Output Mode | HDMI1/VGA simultaneous output, HDMI2/VGA independent output |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Decoding Format | H.265+/H.265/H.264+/H.264 |
| Decoding Capability | 2-ch@32 MP (30 fps); 3-ch@24 MP (30 fps); 4-ch@16MP (30 fps); 6-ch@12MP (30 fps); 10-ch@8 MP (30 fps); 13-ch@6 MP (30 fps); 16-ch@5 MP (30 fps) |
| Synchronous Playback | 16-ch |
| Dual-Stream Recording | Support |
| Remote Connection | 128 |
| Network Interface | 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces |
| Camera Access Protocol | ONVIF(Version 2.5), RTSP |
| RAID Type | N/A |
| SATA | 4 SATA interfaces |
| ESATA | 1 eSATA interface |
| Capacity | Up to 16 TB capacity for each disk |
| Fitted storage | 32TB |
| Serial Interface | 2 RS-485 (half-duplex), 1 RS-232 |
| Alarm In/Out | 16/9 |
| USB Interface | Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 |
| Ctrl 12V | Controllable 12 VDC, 1 A power output for external alarm device |
| DC 12V | 12 VDC, 1 A power output |
| Power Supply | 100 to 240 VAC, 50 to 60 Hz |
| Consumption | ≤ 15 W (without HDD) |
| Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity | 10% to 90% |
| Chassis | 19-inch rack-mounted 1.5U chassis |
| Dimension (W × D × H) | 445 × 400 × 75 mm |
| Weight | ≤ 5 kg (without HDD, 11 lb.) |
| Obtained Certification | CE, FCC, RoHS, REACH |
| Cyber Security | EN 303645 |
| Live View & Playback Stream Encryption | Support : AES128 |
