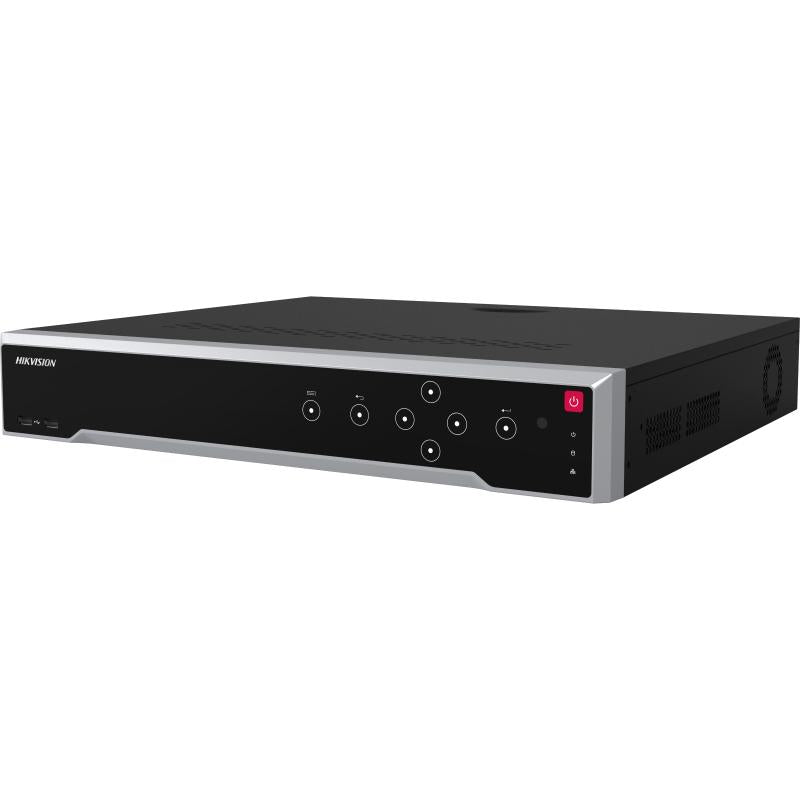

Hikvision DS-7716NI-M4/64TB 16-Channel 8K Network Video Recorder, 64TB, 1.5U Rack-Mounted
Free Delivery
Save £751.80
About this product
The Hikvision DS-7716NI-M4/64TB is a 16-ch 1.5U 8K NVR with 64TB of storage fitted, taking up to 16-ch IP camera inputs at up to 32 MP resolution (up to 8-ch at 32/24/16 MP). It records in H.265+/H.265/H.264+/H.264, has two RJ-45 10/100/1000 Mbps Ethernet interfaces and four SATA interfaces, and drives an 8K display from its HDMI 1 output.
Key features
- 16-ch IP video input at up to 32 MP resolution; up to 8-ch of the inputs can be 32/24/16 MP
- Up to 256 Mbps incoming bandwidth
- HDMI 1 output up to 8K (7680 × 4320)/30Hz
- HDMI 2 output up to 4K (3840 × 2160)/60Hz; when HDMI 1 is at 8K, HDMI 2 is limited to 1080p
- 4 SATA interfaces with up to 16 TB capacity for each disk, plus 1 eSATA interface
- 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
- 16-ch synchronous playback
- Up to 8-ch IP speakers can be connected
Frequently asked questions
How many cameras can the DS-7716NI-M4 record, and at what resolution?
It has 16-ch IP video input at up to 32 MP resolution. The NVR supports up to 8-ch 32/24/16 MP IP video inputs, and all channels for less than 16 MP.
How much storage does this model come with?
This item has 64TB of storage fitted. The NVR has 4 SATA interfaces, with up to 16 TB capacity for each disk.
Can it output to an 8K monitor?
Yes. HDMI 1 outputs up to 8K (7680 × 4320)/30Hz. When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p.
What network connections does it have?
It has 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces, and up to 256 Mbps incoming bandwidth.
What power does the recorder need?
The power supply is 100 to 240 VAC, 50 to 60 Hz, and consumption is ≤ 15 W (without HDD).
What chassis does the recorder use?
It uses a 19-inch rack-mounted 1.5U chassis measuring 445 × 400 × 75 mm (W × D × H).
Technical Details
Specifications
Brand
Hikvision
Model
DS-7716NI-M4/64TB
Manufacturer Part Number (MPN)
DS-7716NI-M4/64TB
Video formats
H.265+/H.265/H.264+/H.264
IP Video Input
16-ch, up to 32 MP resolution (the NVR supports up to 8-ch 32/24/16 MP IP video inputs)
Incoming Bandwidth
256 Mbps
Outgoing Bandwidth
256 Mbps
HDMI 1 Output
8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz
HDMI 2 Output
4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz (when HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p)
VGA Output
1920 × 1080/60Hz
Video Output Mode
HDMI1/VGA simultaneous output, HDMI2/VGA independent output
CVBS Output
1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Audio Output
1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio
1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Decoding Format
H.265+/H.265/H.264+/H.264
Recording Resolution
32 MP/24 MP/16MP/12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF (up to 8-ch 32/24/16 MP IP video inputs, all channels for less than 16 MP)
Synchronous Playback
16-ch
Decoding Capability
2-ch@32 MP (30 fps); 3-ch@24 MP (30 fps); 4-ch@16MP (30 fps); 6-ch@12MP (30 fps); 10-ch@8 MP (30 fps); 13-ch@6 MP (30 fps); 16-ch@5 MP (30 fps)
Dual-Stream Recording
Support
Audio Compression
G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2
Remote Connection
128
Network Protocol
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP
Network Interface
2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
Camera Access Protocol
ONVIF(Version 2.5), RTSP
eSATA
1 eSATA interface
SATA
4 SATA interfaces
Capacity
Up to 16 TB capacity for each disk
Storage fitted
64TB
Serial Interface
2 RS-485 (half-duplex), 1 RS-232
Alarm In/Out
16/9
USB Interface
Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
Ctrl 12V
Controllable 12 VDC, 1 A power output for external alarm device, turned on when the alarm output is triggered (controlled by alarm output 9)
DC 12V
12 VDC, 1 A power output
Power Supply
100 to 240 VAC, 50 to 60 Hz
Consumption
≤ 15 W (without HDD)
Working Temperature
-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity
10% to 90%
Chassis
19-inch rack-mounted 1.5U chassis
Dimension (W × D × H)
445 × 400 × 75 mm (17.5" × 15.7" × 3.0")
Weight
≤ 5 kg (without HDD, 11 lb.)
Live View & Playback Stream Encryption
Support: AES128
Obtained Certification
CE, FCC, RoHS, REACH
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-7716NI-M4/64TB |
| Manufacturer Part Number (MPN) | DS-7716NI-M4/64TB |
| Video formats | H.265+/H.265/H.264+/H.264 |
| IP Video Input | 16-ch, up to 32 MP resolution (the NVR supports up to 8-ch 32/24/16 MP IP video inputs) |
| Incoming Bandwidth | 256 Mbps |
| Outgoing Bandwidth | 256 Mbps |
| HDMI 1 Output | 8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz |
| HDMI 2 Output | 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz (when HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p) |
| VGA Output | 1920 × 1080/60Hz |
| Video Output Mode | HDMI1/VGA simultaneous output, HDMI2/VGA independent output |
| CVBS Output | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input) |
| Decoding Format | H.265+/H.265/H.264+/H.264 |
| Recording Resolution | 32 MP/24 MP/16MP/12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF (up to 8-ch 32/24/16 MP IP video inputs, all channels for less than 16 MP) |
| Synchronous Playback | 16-ch |
| Decoding Capability | 2-ch@32 MP (30 fps); 3-ch@24 MP (30 fps); 4-ch@16MP (30 fps); 6-ch@12MP (30 fps); 10-ch@8 MP (30 fps); 13-ch@6 MP (30 fps); 16-ch@5 MP (30 fps) |
| Dual-Stream Recording | Support |
| Audio Compression | G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2 |
| Remote Connection | 128 |
| Network Protocol | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP |
| Network Interface | 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces |
| Camera Access Protocol | ONVIF(Version 2.5), RTSP |
| eSATA | 1 eSATA interface |
| SATA | 4 SATA interfaces |
| Capacity | Up to 16 TB capacity for each disk |
| Storage fitted | 64TB |
| Serial Interface | 2 RS-485 (half-duplex), 1 RS-232 |
| Alarm In/Out | 16/9 |
| USB Interface | Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 |
| Ctrl 12V | Controllable 12 VDC, 1 A power output for external alarm device, turned on when the alarm output is triggered (controlled by alarm output 9) |
| DC 12V | 12 VDC, 1 A power output |
| Power Supply | 100 to 240 VAC, 50 to 60 Hz |
| Consumption | ≤ 15 W (without HDD) |
| Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity | 10% to 90% |
| Chassis | 19-inch rack-mounted 1.5U chassis |
| Dimension (W × D × H) | 445 × 400 × 75 mm (17.5" × 15.7" × 3.0") |
| Weight | ≤ 5 kg (without HDD, 11 lb.) |
| Live View & Playback Stream Encryption | Support: AES128 |
| Obtained Certification | CE, FCC, RoHS, REACH |
