Hikvision DS-7716NI-M4/6TB-T 16-Channel 8K Network Video Recorder, 6TB, 4 SATA Interfaces

Visit CCTV Recorders & Storage
Free Delivery
Save £159.45

About this product

The Hikvision DS-7716NI-M4/6TB-T is a 16-ch 1.5U 8K NVR for up to 16-ch IP camera inputs, supplied with 6TB of storage. It accepts IP video up to 32 MP resolution (32/24/16 MP on up to 8-ch; all channels for less than 16 MP) and decodes H.265+/H.265/H.264+/H.264.

Key features

  • Up to 16-ch IP camera inputs
  • Up to 32 MP resolution (up to 8-ch at 32/24/16 MP; all channels for less than 16 MP)
  • 256 Mbps incoming bandwidth
  • HDMI 1 output up to 8K (7680 × 4320)/30Hz
  • 4 SATA interfaces, up to 16 TB capacity for each disk, plus 1 eSATA interface
  • 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
  • Up to 8-ch IP speakers can be connected
  • 16 alarm inputs and 9 alarm outputs

Frequently asked questions

How many cameras can the DS-7716NI-M4/6TB-T record?

Up to 16-ch IP camera inputs at up to 32 MP resolution. The NVR supports up to 8-ch 32/24/16 MP IP video inputs, and all channels for less than 16 MP.

How much storage does it have?

This model is supplied with 6TB. The recorder has 4 SATA interfaces with up to 16 TB capacity for each disk, plus 1 eSATA interface.

Does it have PoE ports?

No. Its network connections are 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces, with no PoE.

What monitor outputs does it have?

HDMI 1 up to 8K (7680 × 4320)/30Hz, HDMI 2 up to 4K (3840 × 2160)/60Hz and VGA at 1920 × 1080/60Hz. When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p.

What power does it need?

It runs from 100 to 240 VAC, 50 to 60 Hz, with consumption of ≤ 15 W (without HDD).

Can it be rack mounted?

Yes. It has a 19-inch rack-mounted 1.5U chassis measuring 445 × 400 × 75 mm (W × D × H).

Save £159.45
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Technical Details
Specifications
Brand
Hikvision
Model
DS-7716NI-M4/6TB-T
Manufacturer Part Number (MPN)
DS-7716NI-M4/6TB-T
IP Video Input
16-ch, up to 32 MP resolution (the NVR supports up to 8-ch 32/24/16 MP IP video inputs)
Incoming Bandwidth
256 Mbps
Outgoing Bandwidth
256 Mbps
HDMI 1 Output
8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz
HDMI 2 Output
4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz (when HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p)
VGA Output
1920 × 1080/60Hz
Video Output Mode
HDMI1/VGA simultaneous output, HDMI2/VGA independent output
CVBS Output
1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Audio Output
1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio
1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Decoding Format
H.265+/H.265/H.264+/H.264
Recording Resolution
32 MP/24 MP/16MP/12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF (up to 8-ch 32/24/16 MP IP video inputs, all channels for less than 16 MP)
Synchronous Playback
16-ch
Decoding Capability
2-ch@32 MP (30 fps); 3-ch@24 MP (30 fps); 4-ch@16MP (30 fps); 6-ch@12MP (30 fps); 10-ch@8 MP (30 fps); 13-ch@6 MP (30 fps); 16-ch@5 MP (30 fps)
Audio Compression
G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2
Remote Connection
128
Network Interface
2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
Camera Access Protocol
ONVIF(Version 2.5), RTSP
eSATA
1 eSATA interface
SATA
4 SATA interfaces
Capacity
Up to 16 TB capacity for each disk
Serial Interface
2 RS-485 (half-duplex), 1 RS-232
Alarm In/Out
16/9
USB Interface
Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
Power Output
Controllable 12 VDC, 1 A power output for external alarm device (controlled by alarm output 9); 12 VDC, 1 A power output
Power Supply
100 to 240 VAC, 50 to 60 Hz
Consumption
≤ 15 W (without HDD)
Working Temperature
-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity
10% to 90%
Chassis
19-inch rack-mounted 1.5U chassis
Dimension (W × D × H)
445 × 400 × 75 mm (17.5" × 15.7" × 3.0")
Weight
≤ 5 kg (without HDD, 11 lb.)
Fitted Storage
6TB
Specifications

Specifications

Brand Hikvision
Model DS-7716NI-M4/6TB-T
Manufacturer Part Number (MPN) DS-7716NI-M4/6TB-T
IP Video Input 16-ch, up to 32 MP resolution (the NVR supports up to 8-ch 32/24/16 MP IP video inputs)
Incoming Bandwidth 256 Mbps
Outgoing Bandwidth 256 Mbps
HDMI 1 Output 8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz
HDMI 2 Output 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz (when HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p)
VGA Output 1920 × 1080/60Hz
Video Output Mode HDMI1/VGA simultaneous output, HDMI2/VGA independent output
CVBS Output 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Audio Output 1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Decoding Format H.265+/H.265/H.264+/H.264
Recording Resolution 32 MP/24 MP/16MP/12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF (up to 8-ch 32/24/16 MP IP video inputs, all channels for less than 16 MP)
Synchronous Playback 16-ch
Decoding Capability 2-ch@32 MP (30 fps); 3-ch@24 MP (30 fps); 4-ch@16MP (30 fps); 6-ch@12MP (30 fps); 10-ch@8 MP (30 fps); 13-ch@6 MP (30 fps); 16-ch@5 MP (30 fps)
Audio Compression G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2
Remote Connection 128
Network Interface 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
Camera Access Protocol ONVIF(Version 2.5), RTSP
eSATA 1 eSATA interface
SATA 4 SATA interfaces
Capacity Up to 16 TB capacity for each disk
Serial Interface 2 RS-485 (half-duplex), 1 RS-232
Alarm In/Out 16/9
USB Interface Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
Power Output Controllable 12 VDC, 1 A power output for external alarm device (controlled by alarm output 9); 12 VDC, 1 A power output
Power Supply 100 to 240 VAC, 50 to 60 Hz
Consumption ≤ 15 W (without HDD)
Working Temperature -10 °C to 55 °C (14 °F to 131 °F)
Working Humidity 10% to 90%
Chassis 19-inch rack-mounted 1.5U chassis
Dimension (W × D × H) 445 × 400 × 75 mm (17.5" × 15.7" × 3.0")
Weight ≤ 5 kg (without HDD, 11 lb.)
Fitted Storage 6TB

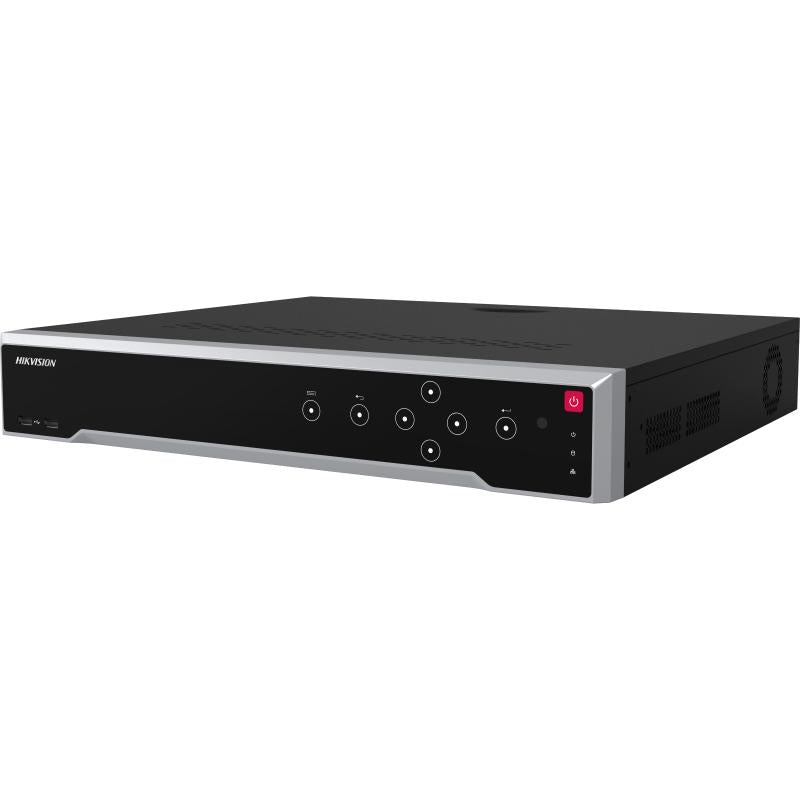

Hikvision DS-7716NI-M4/6TB-T 16-Channel 8K Network Video Recorder

Hikvision DS-7716NI-M4/6TB-T 16-Channel 8K Network Video Recorder, 6TB, 4 SATA Interfaces

What it does

The DS-7716NI-M4 is a 16-ch 1.5U 8K NVR with 256 Mbps incoming bandwidth and 256 Mbps outgoing bandwidth.

It accepts IP video at up to 32 MP resolution; the NVR supports up to 8-ch 32/24/16 MP IP video inputs, and all channels for less than 16 MP.

Decoding capability runs from 2-ch@32 MP (30 fps) to 16-ch@5 MP (30 fps), with 16-ch synchronous playback.

Installation notes

The recorder sits in a 19-inch rack-mounted 1.5U chassis measuring 445 × 400 × 75 mm (W × D × H) and runs from 100 to 240 VAC, 50 to 60 Hz, with consumption of ≤ 15 W (without HDD).

Storage connects through 4 SATA interfaces with up to 16 TB capacity for each disk, plus 1 eSATA interface; this model is supplied with 6TB.

Networking is 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces, with no PoE ports, and cameras connect over ONVIF(Version 2.5) or RTSP.

Day to day

HDMI 1 outputs up to 8K (7680 × 4320)/30Hz and HDMI 2 up to 4K (3840 × 2160)/60Hz; when HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p.

Live view and playback streams support AES128 encryption, and the recorder supports Secure Boot.

Up to 128 remote connections are supported.

Hikvision DS-7716NI-M4/6TB-T 16-Channel 8K Network Video Recorder
Hikvision

Hikvision DS-7716NI-M4/6TB-T 16-Channel 8K Network Video Recorder, 6TB, 4 SATA Interfaces

£797.24 £956.69

The Hikvision DS-7716NI-M4/6TB-T is a 16-ch 1.5U 8K NVR for up to 16-ch IP camera inputs, supplied with 6TB of storage. It accepts IP video up to 32 MP resolution (32/24/16 MP on up to 8-ch; all channels for less than 16 MP) and decodes H.265+/H.265/H.264+/H.264.

Key features

Frequently asked questions

How many cameras can the DS-7716NI-M4/6TB-T record?

Up to 16-ch IP camera inputs at up to 32 MP resolution. The NVR supports up to 8-ch 32/24/16 MP IP video inputs, and all channels for less than 16 MP.

How much storage does it have?

This model is supplied with 6TB. The recorder has 4 SATA interfaces with up to 16 TB capacity for each disk, plus 1 eSATA interface.

Does it have PoE ports?

No. Its network connections are 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces, with no PoE.

What monitor outputs does it have?

HDMI 1 up to 8K (7680 × 4320)/30Hz, HDMI 2 up to 4K (3840 × 2160)/60Hz and VGA at 1920 × 1080/60Hz. When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p.

What power does it need?

It runs from 100 to 240 VAC, 50 to 60 Hz, with consumption of ≤ 15 W (without HDD).

Can it be rack mounted?

Yes. It has a 19-inch rack-mounted 1.5U chassis measuring 445 × 400 × 75 mm (W × D × H).
