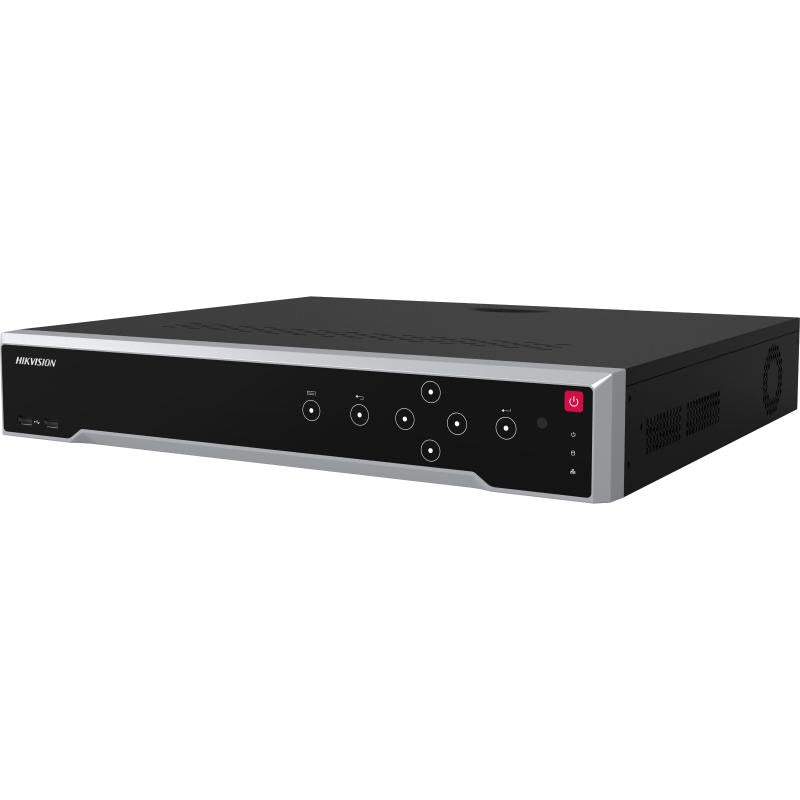

Hikvision DS-7716NI-M4/6TB-W 16-Channel 8K Network Video Recorder, 6TB, 4 SATA Interfaces
About this product
The Hikvision DS-7716NI-M4/6TB-W is a 16-ch 1.5U 8K network video recorder for IP CCTV systems, supplied with 6TB of storage. It takes up to 16-ch IP camera inputs at up to 32 MP resolution, records in H.265+/H.265/H.264+/H.264 and outputs up to 8K (7680 × 4320) on HDMI 1.
Key features
- 16-ch IP video input, up to 32 MP resolution (up to 8-ch at 32/24/16 MP)
- 8K (7680 × 4320)/30Hz HDMI 1 output, plus 4K HDMI 2 and 1920 × 1080 VGA outputs
- 256 Mbps incoming and 256 Mbps outgoing bandwidth
- Decoding capability up to 16-ch@5 MP (30 fps) or 2-ch@32 MP (30 fps)
- 4 SATA interfaces, up to 16 TB capacity for each disk, plus 1 eSATA interface
- 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
- 16/9 alarm inputs/outputs, 2 RS-485 and 1 RS-232
- Up to 8-ch IP speakers can be connected
Frequently asked questions
How much storage does the DS-7716NI-M4/6TB-W have?
It is supplied with 6TB of storage. The recorder has 4 SATA interfaces with up to 16 TB capacity for each disk, plus 1 eSATA interface.
Does this NVR have PoE ports?
No. It has no PoE ports; cameras connect over the network through its 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces.
What camera resolutions does it support?
IP video input is 16-ch at up to 32 MP resolution, with up to 8-ch of 32/24/16 MP IP video inputs.
What monitor outputs does it have?
HDMI 1 up to 8K (7680 × 4320)/30Hz, HDMI 2 up to 4K (3840 × 2160)/60Hz and VGA at 1920 × 1080/60Hz. When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p.
Is it rack-mountable?
Yes. It uses a 19-inch rack-mounted 1.5U chassis measuring 445 × 400 × 75 mm.
What power does it need?
100 to 240 VAC, 50 to 60 Hz, with consumption of ≤ 15 W without HDD.
Specifications
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-7716NI-M4/6TB-W |
| Manufacturer Part Number (MPN) | DS-7716NI-M4/6TB-W |
| IP Video Input | 16-ch, up to 32 MP resolution (up to 8-ch 32/24/16 MP IP video inputs) |
| Incoming Bandwidth | 256 Mbps |
| Outgoing Bandwidth | 256 Mbps |
| HDMI 1 Output | 8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz |
| HDMI 2 Output | 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz (max. 1080p when HDMI 1 is 8K) |
| VGA Output | 1920 × 1080/60Hz |
| Video Output Mode | HDMI1/VGA simultaneous output, HDMI2/VGA independent output |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input) |
| Decoding Format | H.265+/H.265/H.264+/H.264 |
| Decoding Capability | 2-ch@32 MP (30 fps); 3-ch@24 MP (30 fps); 4-ch@16MP (30 fps); 6-ch@12MP (30 fps); 10-ch@8 MP (30 fps); 13-ch@6 MP (30 fps); 16-ch@5 MP (30 fps) |
| Synchronous Playback | 16-ch |
| Remote Connection | 128 |
| Network Interface | 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces |
| Camera Access Protocol | ONVIF(Version 2.5), RTSP |
| RAID Type | N/A |
| SATA | 4 SATA interfaces |
| eSATA | 1 eSATA interface |
| Capacity | Up to 16 TB capacity for each disk |
| Fitted storage | 6TB |
| Serial Interface | 2 RS-485 (half-duplex), 1 RS-232 |
| Alarm In/Out | 16/9 |
| USB Interface | Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 |
| Power Supply | 100 to 240 VAC, 50 to 60 Hz |
| Consumption | ≤ 15 W (without HDD) |
| Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity | 10% to 90% |
| Chassis | 19-inch rack-mounted 1.5U chassis |
| Dimension (W × D × H) | 445 × 400 × 75 mm |
| Weight | ≤ 5 kg (without HDD, 11 lb.) |
| Live View & Playback Stream Encryption | AES128 |
| Secure Boot | Support |
