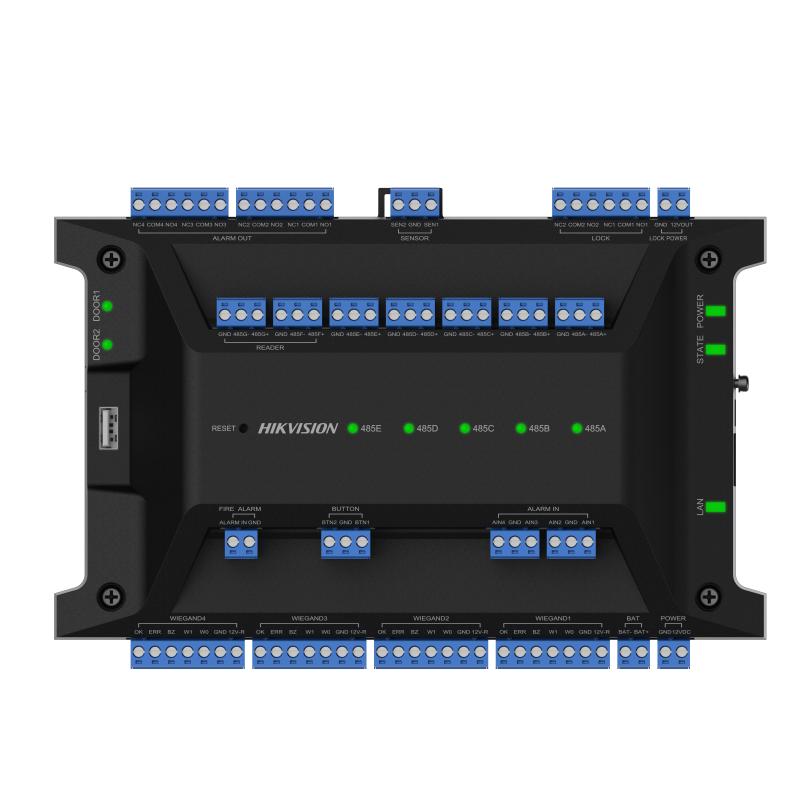

Hikvision DS-K2702X(P)(O-STD) 2-Door Access Controller, Up to 126 Doors with Access Modules, 100,000 Users
About this product
The Hikvision DS-K2702X(P)(O-STD) is a 2-door access controller for access control systems, with web configuration management so all configurations can be made via web without a software application. It can extend up to 62 DS-K2M002X access modules, and up to 126 doors can be controlled.
Key features
- Controls 2 doors; extends up to 62 DS-K2M002X access modules to control up to 126 doors
- Web configuration: all configurations can be realised via web without a software application
- Multi-door interlocking (32 groups, 32 doors each) and anti-passback (32 routes, 64 card readers each)
- Links 4 RS-485 card readers (OSDP protocol) and 4 Wiegand card readers
- User capacity 100,000, card capacity 200,000, fingerprint capacity 10,000 and event capacity 600,000
- Downstream RS-485 redundancy wiring design for communication stability
- Supports backup battery access, with charging and discharging
- 1 wired network interface, 10/100/1000 Mbps self-adaptive
Frequently asked questions
How many doors can the DS-K2702X(P)(O-STD) control?
It controls 2 doors itself. Extended with up to 62 DS-K2M002X access modules, up to 126 doors can be controlled.
How many card readers can be linked?
4 RS-485 card readers (OSDP protocol) and 4 Wiegand card readers.
Does it need software to set up?
No. All configurations can be realised via web without a software application, and configuration via web browser is supported.
What power supply does it need?
12 ± 15% VDC, with power consumption ≤ 72 W. It also supports backup battery access, with charging and discharging.
How many users, cards and events can it store?
User capacity is 100,000, card capacity 200,000, fingerprint capacity 10,000 and event capacity 600,000.
How many access modules should go on each RS-485 loop bus?
It is recommended that no more than 16 access modules are attached to each loop bus.
Specifications
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-K2702X(P)(O-STD) |
| Manufacturer Part Number (MPN) | DS-K2702X(P)(O-STD) |
| Operating System | Linux |
| Wired Network | 1, 10/100/1000 Mbps self-adaptive |
| Network Interface | 1 |
| Lock Control | 2 |
| Exit Button | 2 |
| Door Contact Input | 2 |
| Alarm Input | 4 |
| Alarm Output | 4 |
| Tamper | 1 |
| RS-485 | 7, 2 for card reader, 5 for access modules (4 for communication, each interface can connect up to 16 access modules; 1 for redundancy) |
| Wiegand | 4, standard 26/34 input, supports custom Wiegand settings |
| USB | 1, USB 2.0 |
| Fire Interface | 1 |
| User Capacity | 100,000 |
| Fingerprint Capacity | 10,000 |
| Card Capacity | 200,000 |
| Event Capacity | 600,000 |
| Linked Door Capacity | Self: 2 doors; Extended: up to 126 doors (connected with 62 access modules) |
| Linked Card Reader Capacity | 4 RS-485 card readers (OSDP protocol) and 4 Wiegand card readers |
| Fingerprint Recognition Duration | < 1 s |
| Indicator | 10 indicators, 1 for indicating power status, 1 for running status, 1 for wired network status, 5 for RS-485 status, and 2 for door status |
| Battery | Charge and discharge |
| Power Supply | 12 ± 15% VDC |
| Power Consumption | ≤ 72 W |
| Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity | 0% to 90% (No condensing) |
| Installation | Installation with guide rail |
| Configuration Via Web Browser | Support |
| Multi-Factor Authentication | Support |
| First Person In | Support |
| Anti-Passback | Support 32 routes (64 card readers each) |
| Multi-Door Interlocking | Support 32 groups (32 doors each) |
