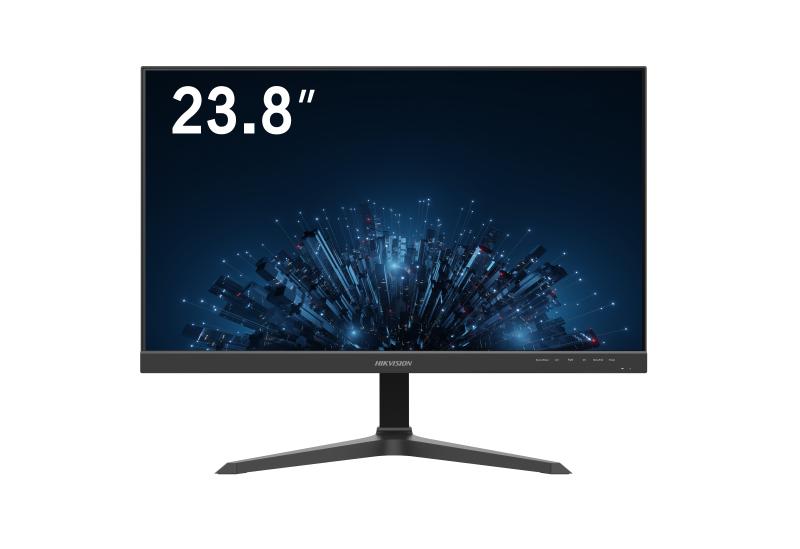

Hikvision DS-D5224F3-1V0SV/D 23.8 Inch Monitor with Video Decoding, 1920 × 1080, Max 16CH Decoding
Free Delivery
Save £99.61
About this product
The Hikvision DS-D5224F3-1V0SV/D is a 23.8 inch monitor with a 1920 × 1080 (16:9 aspect ratio) display that also decodes video itself, with a maximum of 16 video decoding channels and a decoding resolution of max. 32 MP. It supports ONVIF and RTSP camera protocols, H.264, H.265, Smart264, Smart265 and MJPEG decoding, and has HDMI, USB 2.0 and RJ45 interfaces with local UI and Web UI.
Key features
- 23.8 inch screen, 1920 × 1080@60Hz resolution
- Video decoding channel: max 16CH; decoding resolution max. 32 MP
- H.264/H.265: decodes 1-channel 32 MP/24 MP up to 16-channel 1080p and lower resolution @ 30 fps in real time
- Supports ONVIF and RTSP camera protocols
- Screen split quantity: 1,4,6,8,9,16
- 1 × 1000Base-T/100Base-TX/10Base-T adaptive Ethernet (RJ-45), HDMI × 1 input and USB2.0 × 2
- Speaker × 2 (4Ω, 2W) and audio out × 1
- Reliability rating 7 × 24h
Frequently asked questions
How many camera streams can the DS-D5224F3-1V0SV/D decode?
The video decoding channel count is max 16CH. In H.264/H.265 format it supports decoding 1-channel 32 MP/24 MP, 2-channel 12 MP, 4-channel 8 MP, 5-channel 6 MP, 9-channel 4 MP, or 16-channel 1080p and lower resolution @ 30 fps in real time.
Which camera protocols does it support?
It supports ONVIF and RTSP camera protocols.
How is the monitor powered?
The power supply is DC 12V, 2.5A. Power consumption is ≤ 30 W and standby consumption is ≤ 0.5 W.
Does it have VESA mounting holes?
Yes. The VESA pattern is 75 mm × 75 mm (4-M4 × 6mm). The base is included by default.
Does it have built-in speakers?
Yes: Speaker × 2 (4Ω, 2W), plus an audio out × 1.
What is in the box?
Monitor ×1, base assembly ×1, base screw (hex socket) ×1, hex wrench ×1, adapter (12V 3A) ×1, mouse (1.5m) ×1, HDMI cable (1.5m) ×1, user manual ×1, multilingual manual ×1.
Technical Details
Specifications
Brand
Hikvision
Model
DS-D5224F3-1V0SV/D
Manufacturer Part Number (MPN)
DS-D5224F3-1V0SV/D
Video Decoding Format
H.264, H.265, Smart264, Smart265, MJPEG
Decoding Resolution
Max. 32 MP
Video Decoding Channel
Max 16CH
Video Decoding Capability (H.264/H.265)
Supports decoding 1-channel 32 MP/24 MP, 2-channel 12 MP, 4-channel 8 MP, 5-channel 6 MP, 9-channel 4 MP, 16-channel 1080p and lower resolution @ 30 fps in real time
Video Decoding Capability (MJPEG)
Supports decoding 4-channel of 1080p and lower resolution @ 25 fps in real time
Encrypted Stream Decoding Channel
Max 16CH
Camera protocol
ONVIF, RTSP
Stream protocols
PS, RTP (H.265, H.264, MJPEG, MPEG2-TS)
Screen Split Quantity
1,4,6,8,9,16
Scene Quantity
4
Audio Decoding
Supported
Screen Size
23.8 inch
Active Display Area
527.04 (H) mm × 296.46 (V) mm
Resolution
1920 × 1080@60Hz
Aspect ratio
16:9
Backlight
E-LED
Pixel Pitch
0.2745 (H) mm × 0.2745 (V) mm
Brightness
300 cd/㎡
Viewing Angle
178°(H)/178°(V)
Color Depth
8 bit
Contrast Ratio
4000:1
Response Time
7 ms (typ)
Refresh Rate
60 Hz
Surface Treatment
Haze 25%, 3H
Reliability
7 × 24h
Color Gamut
72% NTSC
Video & Audio Input
HDMI × 1, 1080X720@100Hz
Video & Audio Output
Audio out × 1
Data Transmission Interface
USB2.0 × 2
Network Interface
1 × 1000Base-T/100Base-TX/10Base-T adaptive Ethernet (RJ-45)
Control Interface
UART × 1
Speaker
Speaker × 2 (4Ω, 2W)
Power Supply
DC 12V, 2.5A
Power Consumption
≤ 30 W
Standby Consumption
≤ 0.5 W
Working Temperature
0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
Working Humidity
20% to 80% RH (Non-Condensing)
Storage Temperature
-20 ℃ to 60 ℃ (-4 ℉ to 140 ℉)
Storage Humidity
10% to 90% RH (Non-Condensing)
Casing Material
Plastic
VESA
75 mm × 75 mm (4-M4 × 6mm)
Bezel Width
2 mm (top/left/right), 23.55 mm (bottom)
Product Dimensions (W × H × D), with base
539.7 (W) mm × 423.16 (H) mm × 196 (D) mm
Product Dimensions (W × H × D), without base
539.7 (W) mm × 327.33 (H) mm × 43.5 (D) mm
Net Weight
2.62 ± 0.5 kg (5.78 ± 1.1 lb.)
Packing List
Monitor ×1, base assembly ×1, base screw (hex socket) ×1, hex wrench ×1, adapter (12V 3A) ×1, mouse (1.5m) ×1, HDMI cable (1.5m) ×1, user manual ×1, multilingual manual ×1
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-D5224F3-1V0SV/D |
| Manufacturer Part Number (MPN) | DS-D5224F3-1V0SV/D |
| Video Decoding Format | H.264, H.265, Smart264, Smart265, MJPEG |
| Decoding Resolution | Max. 32 MP |
| Video Decoding Channel | Max 16CH |
| Video Decoding Capability (H.264/H.265) | Supports decoding 1-channel 32 MP/24 MP, 2-channel 12 MP, 4-channel 8 MP, 5-channel 6 MP, 9-channel 4 MP, 16-channel 1080p and lower resolution @ 30 fps in real time |
| Video Decoding Capability (MJPEG) | Supports decoding 4-channel of 1080p and lower resolution @ 25 fps in real time |
| Encrypted Stream Decoding Channel | Max 16CH |
| Camera protocol | ONVIF, RTSP |
| Stream protocols | PS, RTP (H.265, H.264, MJPEG, MPEG2-TS) |
| Screen Split Quantity | 1,4,6,8,9,16 |
| Scene Quantity | 4 |
| Audio Decoding | Supported |
| Screen Size | 23.8 inch |
| Active Display Area | 527.04 (H) mm × 296.46 (V) mm |
| Resolution | 1920 × 1080@60Hz |
| Aspect ratio | 16:9 |
| Backlight | E-LED |
| Pixel Pitch | 0.2745 (H) mm × 0.2745 (V) mm |
| Brightness | 300 cd/㎡ |
| Viewing Angle | 178°(H)/178°(V) |
| Color Depth | 8 bit |
| Contrast Ratio | 4000:1 |
| Response Time | 7 ms (typ) |
| Refresh Rate | 60 Hz |
| Surface Treatment | Haze 25%, 3H |
| Reliability | 7 × 24h |
| Color Gamut | 72% NTSC |
| Video & Audio Input | HDMI × 1, 1080X720@100Hz |
| Video & Audio Output | Audio out × 1 |
| Data Transmission Interface | USB2.0 × 2 |
| Network Interface | 1 × 1000Base-T/100Base-TX/10Base-T adaptive Ethernet (RJ-45) |
| Control Interface | UART × 1 |
| Speaker | Speaker × 2 (4Ω, 2W) |
| Power Supply | DC 12V, 2.5A |
| Power Consumption | ≤ 30 W |
| Standby Consumption | ≤ 0.5 W |
| Working Temperature | 0 ℃ to 40 ℃ (32 ℉ to 104 ℉) |
| Working Humidity | 20% to 80% RH (Non-Condensing) |
| Storage Temperature | -20 ℃ to 60 ℃ (-4 ℉ to 140 ℉) |
| Storage Humidity | 10% to 90% RH (Non-Condensing) |
| Casing Material | Plastic |
| VESA | 75 mm × 75 mm (4-M4 × 6mm) |
| Bezel Width | 2 mm (top/left/right), 23.55 mm (bottom) |
| Product Dimensions (W × H × D), with base | 539.7 (W) mm × 423.16 (H) mm × 196 (D) mm |
| Product Dimensions (W × H × D), without base | 539.7 (W) mm × 327.33 (H) mm × 43.5 (D) mm |
| Net Weight | 2.62 ± 0.5 kg (5.78 ± 1.1 lb.) |
| Packing List | Monitor ×1, base assembly ×1, base screw (hex socket) ×1, hex wrench ×1, adapter (12V 3A) ×1, mouse (1.5m) ×1, HDMI cable (1.5m) ×1, user manual ×1, multilingual manual ×1 |
