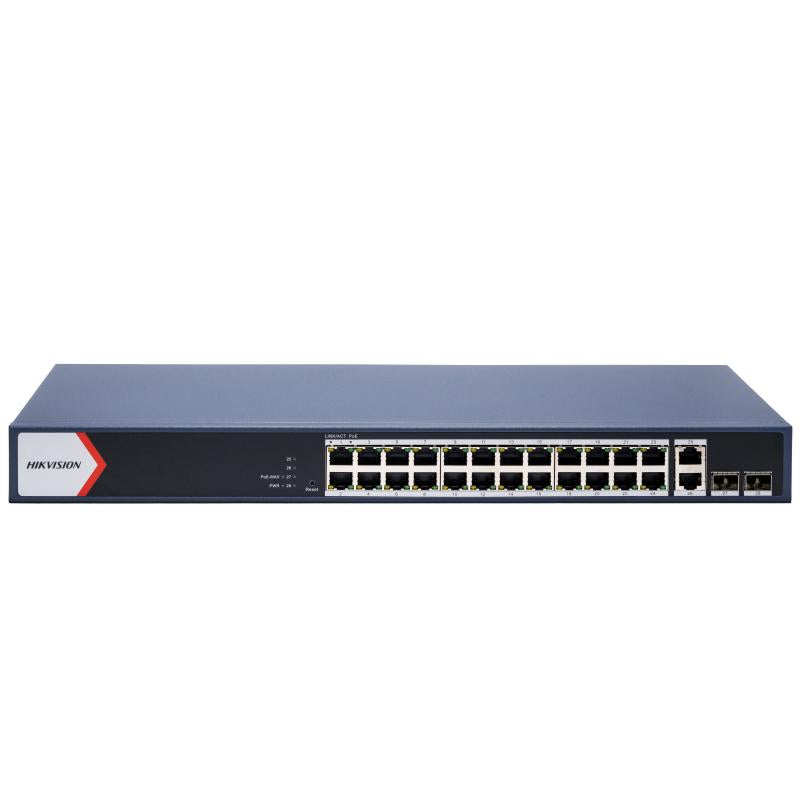

Hikvision DS-3E1528P-EI 24 Port Gigabit Smart PoE Switch, 370W PoE Budget, 2 Gigabit Fiber Ports
About this product
The Hikvision DS-3E1528P-EI is a 24 port gigabit smart PoE switch with 24 x gigabit PoE RJ45 ports, 2 × gigabit RJ45 ports and 2 x gigabit fiber optical ports, and a total PoE power budget of 370 W. Ports 1 to 24 support long range of up to 300 m (performance may vary depending on camera model or cable condition), and the switch supports one-click activation and remote management via Hik-Partner Pro.
Key features
- 24 x gigabit PoE RJ45 ports, 2 × gigabit RJ45 ports, 2 x gigabit fiber optical ports
- PoE power budget 370 W, max. port power 30 W
- PoE standards IEEE 802.3af and IEEE 802.3at
- Long range on ports 1 to 24: up to 300 m (may vary with camera model or cable condition)
- PoE watchdog on ports 1 to 24 auto detects and restarts cameras that do not respond
- Perpetual PoE: PoE remains active during system reboot, except in cases of power outage or PSE firmware upgrade
- 6 kV surge protection
- Remote management via Hik-Partner Pro and management via Hik-Central Pro
Frequently asked questions
What is the PoE power budget of the DS-3E1528P-EI?
The PoE power budget is 370 W, with a max. port power of 30 W.
How far can PoE reach on this switch?
In long range, ports 1 to 24 reach up to 300 m. Long range performance may vary depending on camera model or cable condition.
Can it be rack mounted?
Yes. The installation mode is desk-mounted or rack, and it is equipped with mounting ears.
Which ports does it have besides the 24 PoE ports?
2 × gigabit RJ45 ports and 2 x gigabit fiber optical ports.
Does PoE stay on while the switch reboots?
Yes. Perpetual PoE is supported: PoE remains active during system reboot, except in cases of power outage or PSE firmware upgrade.
Can the switch be managed remotely?
Yes. It supports one-click activation and remote management via Hik-Partner Pro, as well as management via Hik-Central Pro and device management via web.
Specifications
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-3E1528P-EI |
| Manufacturer Part Number (MPN) | DS-3E1528P-EI |
| Ports | 24 × Gigabit PoE port, 2 × Gigabit RJ45 port, 2 × Gigabit fiber optical port |
| PoE Port | PoE: Ports 1 to 24 |
| PoE Standard | IEEE 802.3af, IEEE 802.3at |
| Max. Port Power | 30 W |
| PoE Power Budget | 370 W |
| Perpetual PoE | Supported (PoE remains active during system reboot, except in cases of power outage or PSE firmware upgrade) |
| Long Range | Ports 1 to 24: up to 300 m (performance may vary depending on camera model or cable condition) |
| MAC Address Table | 16 K |
| Switching Capacity | 68 Gbps |
| Packet Forwarding Rate | 50.59 Mpps |
| Internal Cache | 8.4 Mbits |
| Link Aggregation | Static link aggregation; 8 aggregation group(s) |
| VLAN | 802.1Q; Max. 1024 VLAN |
| Loop Prevention | 802.1D STP, 802.1w RSTP (disabled by default) |
| Surge Protection | 6 kV |
| Power Supply | 100-240 VAC, 50/60 Hz, Max. 6.3 A |
| Max. Power Consumption | 400 W |
| Power Consumption In Idle | 20 W |
| Installation Mode | Desk-Mounted, Rack (equipped with mounting ears) |
| Shell | Metal material |
| Dimensions (W × H × D) | 440.0 mm × 44.0 mm × 220.8 mm |
| Operating Temperature | 0 °C to 45 °C (32 °F to 113 °F) |
| Operating Humidity | 5% to 95% (no condensation) |
