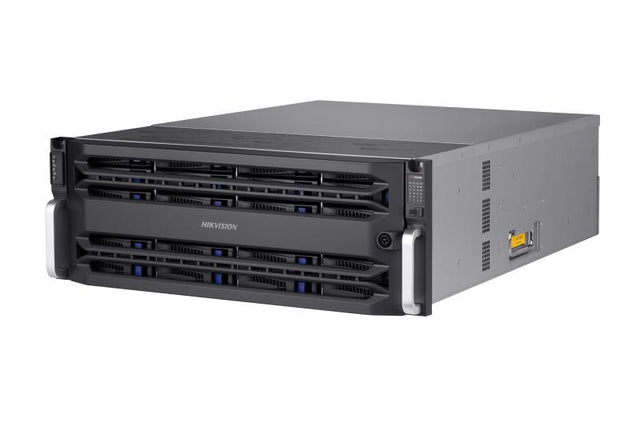

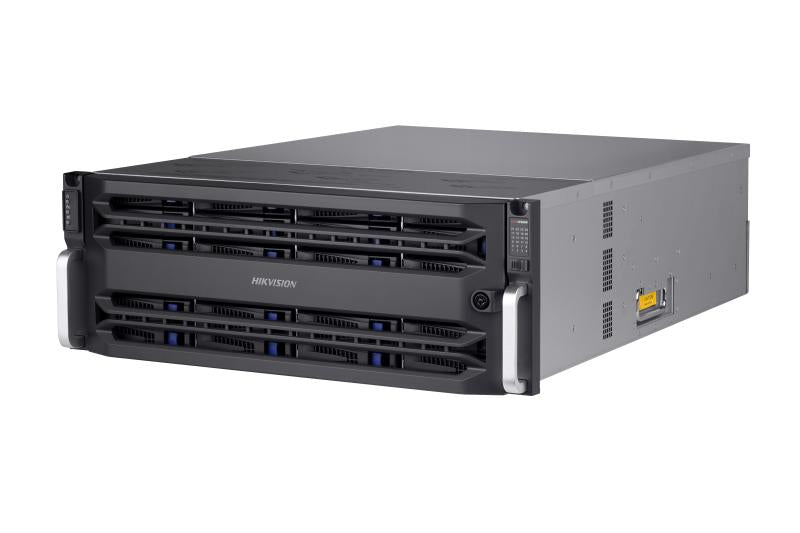

Hikvision DS-A83024S 24-slot Single Controller Storage, 19-inch 4U, 1024-ch Video (2 Mbps) + Picture
About this product
The Hikvision DS-A83024S is a 24-slot single controller storage unit in a 19-inch 4U chassis, built as surveillance-specialized direct storage that works in Direct Streaming mode or IP SAN mode. It supports direct IP camera/DVR/NVR streaming and recording, and takes SATA hard disks from 1TB to 16TB in its 24 HDD slots.
Key features
- 24 HDD slots for SATA disks from 1TB to 16TB
- Hot-swapping supported
- RAID 0, 1, 3, 5, 6, 10, 50, JBOD and hot spare
- Dual 64-bit multi-core processor
- 16 GB cache, extendable to 384 GB
- 4 x 1000M Ethernet data interfaces (4 × 1GbE or 2 × 10GbE is extendable)
- Recording performance: video (2 Mbps) + picture, 1024-ch
- Redundant power supply (1 + 1)
Frequently asked questions
How many hard drives does the Hikvision DS-A83024S take?
It has 24 HDD slots for SATA disks from 1TB to 16TB. Hot-swapping is supported.
Which RAID levels does the DS-A83024S support?
RAID 0, 1, 3, 5, 6, 10 and 50, plus JBOD and hot spare (global and local).
Can the DS-A83024S record IP cameras directly?
Yes. It supports direct IP camera/DVR/NVR streaming and recording in Direct Streaming mode, and also works in IP SAN mode.
How many channels can the DS-A83024S record?
Hikvision rates its performance at 1024-ch with a recording mode of video (2 Mbps) + picture.
What network interfaces does the DS-A83024S have?
4 x 1000M Ethernet data interfaces (4 × 1GbE or 2 × 10GbE is extendable), plus 2 x USB3.0 and 1 x USB2.0 ports.
How much cache does the DS-A83024S have?
16 GB of cache, extendable to 384 GB, with a dual 64-bit multi-core processor.
Specifications
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-A83024S |
| Manufacturer Part Number (MPN) | DS-A83024S |
| Product type | 24-slot Single Controller High-performance Storage |
| Performance | Recording Mode: Video (2 Mbps) + Picture 1024-ch |
| Protocol | iSCSI, RTSP, ONVIF, PSIA |
| USB | 2 x USB3.0, 1 x USB2.0 |
| Data Network Interface | 4, 1000M Ethernet interface (4 × 1GbE or 2 × 10GbE is extendable) |
| HDD Slot | 24 |
| Interface/Capacity | SATA/1TB, 2TB, 3TB, 4TB, 6TB, 8TB, 10TB, 12TB, 14TB, 16TB |
| Hot-Swapping | Supported |
| HDD Support | RAID (Enterprise Hard Disk) |
| RAID | RAID 0, 1, 3, 5, 6, 10, 50, JBOD, hot spare |
| Processor | Dual 64-bit multi-core processor |
| Cache | 16 GB (extendable to 384 GB) |
| Disk Management | Disk inspection, alarm and repair |
| Logical Volume Management | iSCSI volume, video volume management |
| Recording Mode | Timing recording, manual recording, dual-stream recording, alarm recording |
| Video Protection | Lock key video, N+1 service protection, ANR, video loss detection and alarm |
| Searching Mode | Search by time and event |
| Downloading Mode | Quick download, batch download, download by segment, download by merging |
| Management Mode | Web-based GUI, serial port CLI, centralized management of multiple devices |
| Alarm Mode | Sound, light, email, message, web page |
| Power Supply | Redundancy (1 + 1) |
| Chassis | 19-inch 4U |
| Humidity | Operating: 20% to 80% RH (non-condensing/frozen); Storing: 5% to 90% RH (non-condensing/frozen) |
