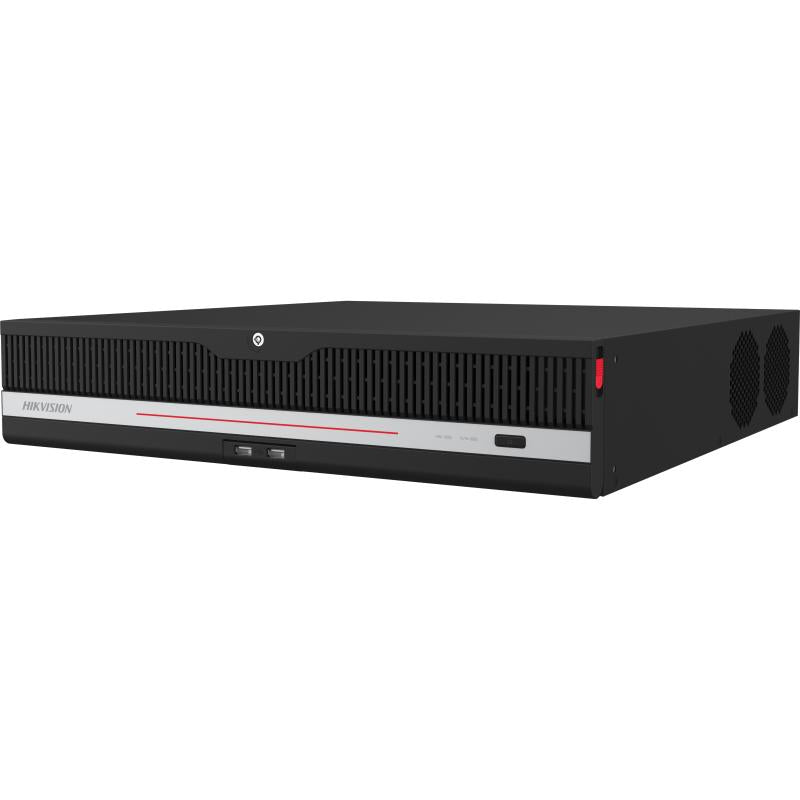

Hikvision iDS-9632NXI-M8/X-08TB-H 32-ch 2U 8K DeepinMind NVR, 8TB Storage, 8 SATA Interfaces
Free Delivery
Save £575.83
About this product
The Hikvision iDS-9632NXI-M8/X is a 32-ch 2U 8K DeepinMind NVR for IP CCTV systems: up to 32-ch IP cameras can be connected, and its intelligent analytics are based on deep learning algorithm. This version is fitted with 8TB of storage.
Key features
- Up to 32-ch IP camera inputs at up to 32 MP resolution (the NVR supports up to 8-ch 32 MP/24 MP IP video inputs)
- Incoming bandwidth 320 Mbps, outgoing bandwidth 400 Mbps
- HDMI 1 output up to 8K (7680 × 4320)/30Hz; HDMI 2 output up to 4K (3840 × 2160)/60Hz, with a maximum of 1080p on HDMI2 when HDMI1 output resolution is 8K
- 8 SATA interfaces for 3.5-inch HDD, up to 20 TB capacity for each HDD, plus 1 eSATA interface
- RAID0, RAID1, RAID5, RAID6 and RAID10 support
- AI by NVR: facial recognition, perimeter protection, video structuralization and AcuSearch, on 2 engines
- 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
- Up to 8-ch IP speakers can be connected
Frequently asked questions
How many IP cameras can the iDS-9632NXI-M8/X record?
Up to 32-ch IP cameras can be connected, at up to 32 MP resolution. The NVR supports up to 8-ch 32 MP/24 MP IP video inputs.
How much storage is fitted, and what drive interfaces does it have?
This version is fitted with 8TB of storage. The recorder has 8 SATA interfaces for 3.5-inch HDD with up to 20 TB capacity for each HDD, plus 1 eSATA interface.
Which RAID levels does it support?
RAID0, RAID1, RAID5, RAID6 and RAID10.
What monitor outputs does it have?
HDMI 1 supports up to 8K (7680 × 4320)/30Hz and HDMI 2 up to 4K (3840 × 2160)/60Hz; when HDMI1 output resolution is 8K, the maximum HDMI2 output resolution is 1080p. There are also two VGA outputs at 1920 × 1080/60Hz.
How many channels of perimeter protection can the NVR analyse itself?
By NVR, perimeter protection covers 24-ch 2 MP or 16-ch 4 MP or 8-ch 8 MP without Large Model, or 12-ch 2 MP or 8-ch 4 MP or 4-ch 8 MP with Large Model.
What power does it need?
Power supply is 100 to 240 VAC, 50 to 60 Hz, and consumption is ≤ 50 W (without HDD).
Technical Details
Specifications
Brand
Hikvision
Model
iDS-9632NXI-M8/X-08TB-H
Manufacturer Part Number (MPN)
iDS-9632NXI-M8/X-08TB-H
IP Video Input
32-ch, up to 32 MP resolution (NVR supports up to 8-ch 32 MP/24 MP IP video inputs)
Incoming Bandwidth
320 Mbps
Outgoing Bandwidth
400 Mbps
HDMI 1 Output
8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz
HDMI 2 Output
4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz (when HDMI1 output resolution is 8K, the maximum HDMI2 output resolution is 1080p)
VGA 1 Output
1920 × 1080/60Hz
VGA 2 Output
1920 × 1080/60Hz
Video Output Mode
HDMI1/VGA1 simultaneous output, HDMI2/VGA2 simultaneous output
CVBS Output
1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Audio Output
2-ch, RCA (Linear, 1 KΩ)
Two-Way Audio
1-ch, RCA (2.0 Vp-p, 1 k Ω)
Decoding Format
H.265/H.265+/H.264/H.264+
Synchronous Playback
16-ch
Recording Resolution
32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
AI By NVR
Facial recognition, perimeter protection, video structuralization, AcuSearch
Engine
2, each engine can run an intelligent algorithm, engine mode is adjustable
Perimeter Protection (By NVR)
24-ch 2 MP or 16-ch 4 MP or 8-ch 8 MP (Without Large Model); 12-ch 2 MP or 8-ch 4 MP or 4-ch 8 MP (With Large Model)
AcuSearch (By NVR)
Up to 8-ch, up to 691,200 targets/day
Structured Analysis
Up to 12-ch 2 MP (6-ch for each engine) or 8-ch 4 MP or 4-ch 8 MP
Facial Detection And Analytics Performance
Up to 16-ch 2 MP (8-ch for each engine) or 8-ch 4 MP or 4-ch 8 MP
Face Picture Comparison (Captured From Camera)
32-ch (16-ch for each engine); comparison speed: 48 pictures per second
Remote Connection
128
Network Protocol
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP
API
ONVIF (profile S/G); SDK; ISAPI
Network Interface
2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Camera Access Protocol
ONVIF(Version 2.5), RTSP
RAID Type
RAID0, RAID1, RAID5, RAID6, RAID10
SATA
8 SATA interfaces; 3.5-inch HDD
ESATA
1 eSATA interface
Capacity
Up to 20 TB capacity for each HDD
Fitted storage
8TB
Serial Interface
1 RS-232, 1 RS-485 (full-duplex), 1 keyboard
USB Interface
Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
Alarm In/Out
16/9
Ctrl 12V
Controllable 12 VDC, 1 A power output for external alarm device; turned on when the alarm output is triggered
DC 12V
12 VDC, 1 A power output
Power Supply
100 to 240 VAC, 50 to 60 Hz
Consumption
≤ 50 W (without HDD)
Working Temperature
-10 to 55° C (14 to 131° F)
Working Humidity
10 to 90%
Dimension (W × D × H)
445 × 465 × 93 mm (17.5" × 18.3" × 3.7")
Weight
≤ 10 kg (without HDD, 28.7 lb.)
Obtained Certification
CE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS
Specifications
| Brand | Hikvision |
|---|---|
| Model | iDS-9632NXI-M8/X-08TB-H |
| Manufacturer Part Number (MPN) | iDS-9632NXI-M8/X-08TB-H |
| IP Video Input | 32-ch, up to 32 MP resolution (NVR supports up to 8-ch 32 MP/24 MP IP video inputs) |
| Incoming Bandwidth | 320 Mbps |
| Outgoing Bandwidth | 400 Mbps |
| HDMI 1 Output | 8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz |
| HDMI 2 Output | 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz (when HDMI1 output resolution is 8K, the maximum HDMI2 output resolution is 1080p) |
| VGA 1 Output | 1920 × 1080/60Hz |
| VGA 2 Output | 1920 × 1080/60Hz |
| Video Output Mode | HDMI1/VGA1 simultaneous output, HDMI2/VGA2 simultaneous output |
| CVBS Output | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
| Audio Output | 2-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 k Ω) |
| Decoding Format | H.265/H.265+/H.264/H.264+ |
| Synchronous Playback | 16-ch |
| Recording Resolution | 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| AI By NVR | Facial recognition, perimeter protection, video structuralization, AcuSearch |
| Engine | 2, each engine can run an intelligent algorithm, engine mode is adjustable |
| Perimeter Protection (By NVR) | 24-ch 2 MP or 16-ch 4 MP or 8-ch 8 MP (Without Large Model); 12-ch 2 MP or 8-ch 4 MP or 4-ch 8 MP (With Large Model) |
| AcuSearch (By NVR) | Up to 8-ch, up to 691,200 targets/day |
| Structured Analysis | Up to 12-ch 2 MP (6-ch for each engine) or 8-ch 4 MP or 4-ch 8 MP |
| Facial Detection And Analytics Performance | Up to 16-ch 2 MP (8-ch for each engine) or 8-ch 4 MP or 4-ch 8 MP |
| Face Picture Comparison (Captured From Camera) | 32-ch (16-ch for each engine); comparison speed: 48 pictures per second |
| Remote Connection | 128 |
| Network Protocol | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP |
| API | ONVIF (profile S/G); SDK; ISAPI |
| Network Interface | 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| Camera Access Protocol | ONVIF(Version 2.5), RTSP |
| RAID Type | RAID0, RAID1, RAID5, RAID6, RAID10 |
| SATA | 8 SATA interfaces; 3.5-inch HDD |
| ESATA | 1 eSATA interface |
| Capacity | Up to 20 TB capacity for each HDD |
| Fitted storage | 8TB |
| Serial Interface | 1 RS-232, 1 RS-485 (full-duplex), 1 keyboard |
| USB Interface | Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 |
| Alarm In/Out | 16/9 |
| Ctrl 12V | Controllable 12 VDC, 1 A power output for external alarm device; turned on when the alarm output is triggered |
| DC 12V | 12 VDC, 1 A power output |
| Power Supply | 100 to 240 VAC, 50 to 60 Hz |
| Consumption | ≤ 50 W (without HDD) |
| Working Temperature | -10 to 55° C (14 to 131° F) |
| Working Humidity | 10 to 90% |
| Dimension (W × D × H) | 445 × 465 × 93 mm (17.5" × 18.3" × 3.7") |
| Weight | ≤ 10 kg (without HDD, 28.7 lb.) |
| Obtained Certification | CE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS |
