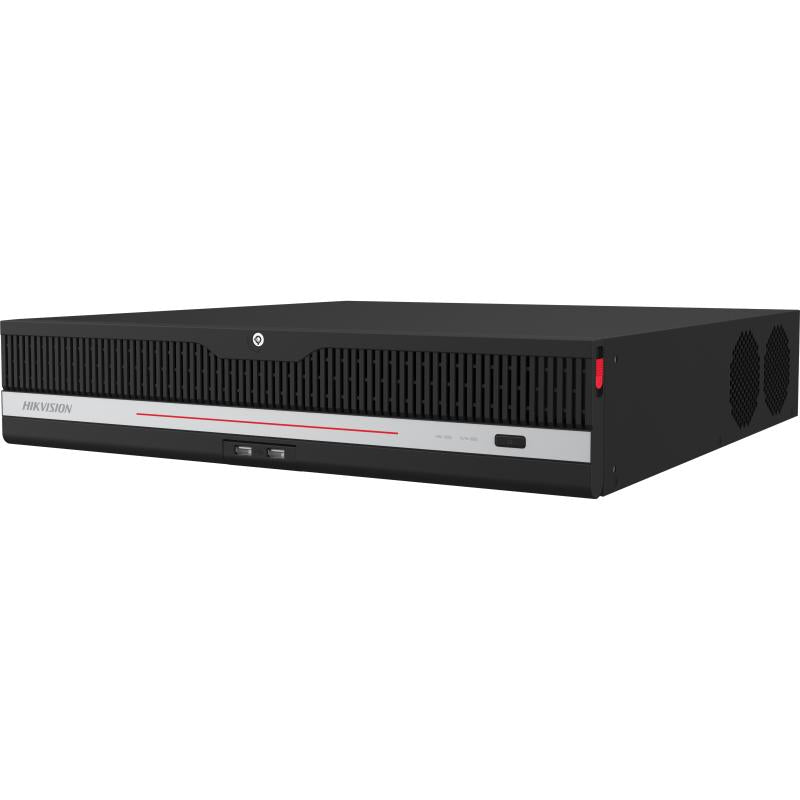

Hikvision iDS-9632NXI-M8/X/16TB-W 32-ch 2U 8K DeepinMind NVR, 16TB, 8 SATA Interfaces
Free Delivery
Save £650.64
About this product
The Hikvision iDS-9632NXI-M8/X/16TB-W is a 32-ch 2U 8K DeepinMind NVR for IP CCTV systems, supplied with 16TB of storage. Up to 32-ch IP cameras can be connected, and intelligent analytics based on deep learning algorithm run on the NVR itself: facial recognition, perimeter protection, video structuralization and AcuSearch.
Key features
- IP video input: 32-ch, up to 32 MP resolution; the NVR supports up to 8-ch 32 MP/24 MP IP video inputs
- AI by NVR: facial recognition, perimeter protection, video structuralization and AcuSearch, on 2 engines that each run an intelligent algorithm
- Perimeter protection by NVR: 24-ch 2 MP or 16-ch 4 MP or 8-ch 8 MP without Large Model, or 12-ch 2 MP or 8-ch 4 MP or 4-ch 8 MP with Large Model
- HDMI 1 output up to 8K (7680 × 4320)/30Hz; when HDMI1 output resolution is 8K, the maximum HDMI2 output resolution is 1080p
- 8 SATA interfaces for 3.5-inch HDD, up to 20 TB capacity for each HDD, plus 1 eSATA interface
- RAID0, RAID1, RAID5, RAID6 and RAID10
- 320 Mbps incoming and 400 Mbps outgoing bandwidth
- Up to 8-ch IP speakers can be connected
Frequently asked questions
How many cameras can the iDS-9632NXI-M8/X/16TB-W record?
Up to 32-ch IP cameras can be connected, at up to 32 MP resolution. The NVR supports up to 8-ch 32 MP/24 MP IP video inputs.
How much storage does it have?
This model code is supplied with 16TB of storage. The NVR has 8 SATA interfaces for 3.5-inch HDD, up to 20 TB capacity for each HDD, plus 1 eSATA interface.
What AI does the NVR run itself?
AI by NVR covers facial recognition, perimeter protection, video structuralization and AcuSearch, on 2 engines that can each run an intelligent algorithm. Perimeter protection by NVR runs at 24-ch 2 MP or 16-ch 4 MP or 8-ch 8 MP without Large Model.
Can it output 8K to a monitor?
Yes. HDMI 1 outputs up to 8K (7680 × 4320)/30Hz. When HDMI1 output resolution is 8K, the maximum HDMI2 output resolution is 1080p.
Which RAID types are supported?
RAID0, RAID1, RAID5, RAID6 and RAID10.
What power does it need?
A 100 to 240 VAC, 50 to 60 Hz power supply, with consumption of ≤ 50 W (without HDD).
Technical Details
Specifications
Brand
Hikvision
Model
iDS-9632NXI-M8/X/16TB-W
Manufacturer Part Number (MPN)
iDS-9632NXI-M8/X/16TB-W
IP Video Input
32-ch, Up to 32 MP resolution (*: NVR supports up to 8-ch 32 MP/24 MP IP video inputs)
Incoming Bandwidth
320 Mbps
Outgoing Bandwidth
400 Mbps
AI By NVR
Facial recognition, perimeter protection, video structuralization, AcuSearch
Engine
2, each engine can run an intelligent algorithm, engine mode is adjustable
Perimeter Protection By NVR
24-ch 2 MP or 16-ch 4 MP or 8-ch 8 MP (Without Large Model); 12-ch 2 MP or 8-ch 4 MP or 4-ch 8 MP (With Large Model)
Facial Detection And Analytics Performance
Up to 16-ch 2 MP (8-ch for each engine) or 8-ch 4 MP or 4-ch 8 MP
Structured Analysis
Up to 12-ch 2 MP (6-ch for each engine) or 8-ch 4 MP or 4-ch 8 MP
AcuSearch By NVR
Up to 8-ch, up to 691,200 targets/day
Face Picture Library
Up to 32 face picture libraries, up to 100,000 face pictures in list library
Video Formats
H.265+/H.265/H.264+/H.264
Recording Resolution
32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
HDMI 1 Output
8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz
HDMI 2 Output
4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz (*: When HDMI1 output resolution is 8K, the maximum HDMI2 output resolution is 1080p)
VGA Outputs
VGA 1: 1920 × 1080/60Hz; VGA 2: 1920 × 1080/60Hz
Video Output Mode
HDMI1/VGA1 simultaneous output, HDMI2/VGA2 simultaneous output
Audio Output
2-ch, RCA (Linear, 1 KΩ)
Two-Way Audio
1-ch, RCA (2.0 Vp-p, 1 k Ω)
Decoding Capability
2-ch@32 MP (30 fps)/2-ch@24 MP (30fps)/4-ch@16 MP (30fps)/8-ch@8 MP (30fps)/16-ch@4 MP (30fps)/32-ch@2 MP (30fps)
Synchronous Playback
16-ch
Remote Connection
128
API
ONVIF (profile S/G); SDK; ISAPI
Network Interface
2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Camera Access Protocol
ONVIF(Version 2.5), RTSP
RAID Type
RAID0, RAID1, RAID5, RAID6, RAID10
SATA
8 SATA interfaces; 3.5-inch HDD
eSATA
1 eSATA interface
Capacity
Up to 20 TB capacity for each HDD
Supplied storage
16TB
Serial Interface
1 RS-232, 1 RS-485 (full-duplex), 1 keyboard
USB Interface
Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
Alarm In/Out
16/9
Ctrl 12V
Controllable 12 VDC, 1 A power output for external alarm device (controlled by alarm output 9)
Power Supply
100 to 240 VAC, 50 to 60 Hz
Consumption
≤ 50 W (without HDD)
Working Temperature
-10 to 55° C (14 to 131° F)
Working Humidity
10 to 90%
Dimension (W × D × H)
445 × 465 × 93 mm
Weight
≤ 10 kg (without HDD)
Specifications
| Brand | Hikvision |
|---|---|
| Model | iDS-9632NXI-M8/X/16TB-W |
| Manufacturer Part Number (MPN) | iDS-9632NXI-M8/X/16TB-W |
| IP Video Input | 32-ch, Up to 32 MP resolution (*: NVR supports up to 8-ch 32 MP/24 MP IP video inputs) |
| Incoming Bandwidth | 320 Mbps |
| Outgoing Bandwidth | 400 Mbps |
| AI By NVR | Facial recognition, perimeter protection, video structuralization, AcuSearch |
| Engine | 2, each engine can run an intelligent algorithm, engine mode is adjustable |
| Perimeter Protection By NVR | 24-ch 2 MP or 16-ch 4 MP or 8-ch 8 MP (Without Large Model); 12-ch 2 MP or 8-ch 4 MP or 4-ch 8 MP (With Large Model) |
| Facial Detection And Analytics Performance | Up to 16-ch 2 MP (8-ch for each engine) or 8-ch 4 MP or 4-ch 8 MP |
| Structured Analysis | Up to 12-ch 2 MP (6-ch for each engine) or 8-ch 4 MP or 4-ch 8 MP |
| AcuSearch By NVR | Up to 8-ch, up to 691,200 targets/day |
| Face Picture Library | Up to 32 face picture libraries, up to 100,000 face pictures in list library |
| Video Formats | H.265+/H.265/H.264+/H.264 |
| Recording Resolution | 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| HDMI 1 Output | 8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz |
| HDMI 2 Output | 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz (*: When HDMI1 output resolution is 8K, the maximum HDMI2 output resolution is 1080p) |
| VGA Outputs | VGA 1: 1920 × 1080/60Hz; VGA 2: 1920 × 1080/60Hz |
| Video Output Mode | HDMI1/VGA1 simultaneous output, HDMI2/VGA2 simultaneous output |
| Audio Output | 2-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 k Ω) |
| Decoding Capability | 2-ch@32 MP (30 fps)/2-ch@24 MP (30fps)/4-ch@16 MP (30fps)/8-ch@8 MP (30fps)/16-ch@4 MP (30fps)/32-ch@2 MP (30fps) |
| Synchronous Playback | 16-ch |
| Remote Connection | 128 |
| API | ONVIF (profile S/G); SDK; ISAPI |
| Network Interface | 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| Camera Access Protocol | ONVIF(Version 2.5), RTSP |
| RAID Type | RAID0, RAID1, RAID5, RAID6, RAID10 |
| SATA | 8 SATA interfaces; 3.5-inch HDD |
| eSATA | 1 eSATA interface |
| Capacity | Up to 20 TB capacity for each HDD |
| Supplied storage | 16TB |
| Serial Interface | 1 RS-232, 1 RS-485 (full-duplex), 1 keyboard |
| USB Interface | Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 |
| Alarm In/Out | 16/9 |
| Ctrl 12V | Controllable 12 VDC, 1 A power output for external alarm device (controlled by alarm output 9) |
| Power Supply | 100 to 240 VAC, 50 to 60 Hz |
| Consumption | ≤ 50 W (without HDD) |
| Working Temperature | -10 to 55° C (14 to 131° F) |
| Working Humidity | 10 to 90% |
| Dimension (W × D × H) | 445 × 465 × 93 mm |
| Weight | ≤ 10 kg (without HDD) |
