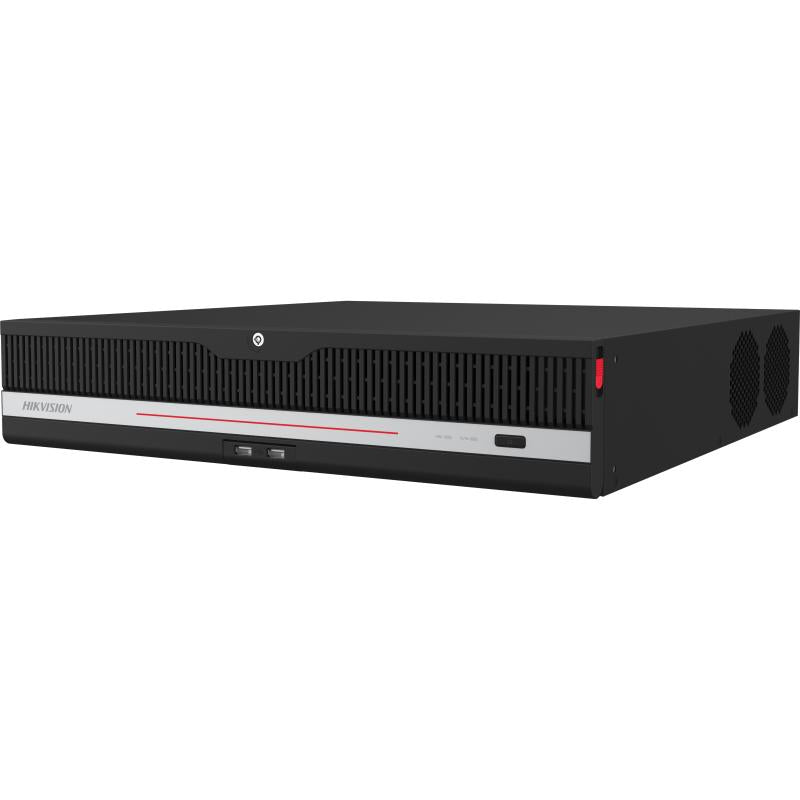

Hikvision iDS-9632NXI-M8/X/64TB 32-ch 2U 8K DeepinMind NVR, 64TB Storage, 8 SATA Interfaces
Free Delivery
Save £1,169.03
About this product
The Hikvision iDS-9632NXI-M8/X/64TB is a 32-ch 2U 8K DeepinMind NVR supplied with 64TB of storage, and up to 32-ch IP cameras can be connected.
Key features
- 32-ch IP video input, up to 32 MP resolution (the NVR supports up to 8-ch 32 MP/24 MP IP video inputs)
- Up to 2-ch@32 MP/2-ch@24 MP/4-ch@12 MP/8-ch@8 MP/16-ch@4 MP/32-ch@1080p decoding capacity
- 8K (7680 × 4320)/30Hz HDMI 1 output; when HDMI1 output resolution is 8K, the maximum HDMI2 output resolution is 1080p
- 8 SATA interfaces for 3.5-inch HDD, up to 20 TB capacity for each HDD
- RAID0, RAID1, RAID5, RAID6 and RAID10 support
- Perimeter protection by NVR: 24-ch 2 MP or 16-ch 4 MP or 8-ch 8 MP (Without Large Model)
- 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
Frequently asked questions
How many cameras can the iDS-9632NXI-M8/X record?
Up to 32-ch IP cameras can be connected. The NVR supports up to 8-ch 32 MP/24 MP IP video inputs.
How much storage does it take?
This model code is supplied with 64TB of storage. The NVR has 8 SATA interfaces for 3.5-inch HDD, with up to 20 TB capacity for each HDD, and 1 eSATA interface.
Does it support RAID?
Yes. Supported RAID types are RAID0, RAID1, RAID5, RAID6 and RAID10.
Can it display 8K?
Yes. HDMI 1 output supports 8K (7680 × 4320)/30Hz. When HDMI1 output resolution is 8K, the maximum HDMI2 output resolution is 1080p.
What AI functions run on the NVR itself?
AI by NVR covers facial recognition, perimeter protection, video structuralization and AcuSearch. Perimeter protection by NVR is 24-ch 2 MP or 16-ch 4 MP or 8-ch 8 MP without Large Model.
What power does it need?
Power supply is 100 to 240 VAC, 50 to 60 Hz, and consumption is ≤ 50 W (without HDD).
Technical Details
Specifications
Brand
Hikvision
Model
iDS-9632NXI-M8/X/64TB
Manufacturer Part Number (MPN)
iDS-9632NXI-M8/X/64TB
IP Video Input
32-ch, up to 32 MP resolution (NVR supports up to 8-ch 32 MP/24 MP IP video inputs)
Incoming Bandwidth
320 Mbps
Outgoing Bandwidth
400 Mbps
Decoding Capability
2-ch@32 MP (30 fps)/2-ch@24 MP (30fps)/4-ch@16 MP (30fps)/8-ch@8 MP (30fps)/16-ch@4 MP (30fps)/32-ch@2 MP (30fps)
Decoding Format
H.265/H.265+/H.264/H.264+
Recording Resolution
32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF
Synchronous Playback
16-ch
HDMI 1 Output
8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz
HDMI 2 Output
4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz (when HDMI1 output resolution is 8K, the maximum HDMI2 output resolution is 1080p)
VGA 1 Output
1920 × 1080/60Hz
VGA 2 Output
1920 × 1080/60Hz
Video Output Mode
HDMI1/VGA1 simultaneous output, HDMI2/VGA2 simultaneous output
CVBS Output
1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Audio Output
2-ch, RCA (Linear, 1 KΩ)
Two-Way Audio
1-ch, RCA (2.0 Vp-p, 1 k Ω)
Engine
2, each engine can run an intelligent algorithm, engine mode is adjustable
Remote Connection
128
API
ONVIF (profile S/G); SDK; ISAPI
Camera Access Protocol
ONVIF(Version 2.5), RTSP
Network Interface
2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
RAID Type
RAID0, RAID1, RAID5, RAID6, RAID10
SATA
8 SATA interfaces; 3.5-inch HDD
eSATA
1 eSATA interface
Capacity
Up to 20 TB capacity for each HDD
Serial Interface
1 RS-232, 1 RS-485 (full-duplex), 1 keyboard
USB Interface
Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
Alarm In/Out
16/9
DC 12V
12 VDC, 1 A power output
Power Supply
100 to 240 VAC, 50 to 60 Hz
Consumption
≤ 50 W (without HDD)
Working Temperature
-10 to 55° C (14 to 131° F)
Working Humidity
10 to 90%
Dimension (W × D × H)
445 × 465 × 93 mm ( 17.5"× 18.3" × 3.7")
Weight
≤ 10 kg (without HDD, 28.7 lb.)
Specifications
| Brand | Hikvision |
|---|---|
| Model | iDS-9632NXI-M8/X/64TB |
| Manufacturer Part Number (MPN) | iDS-9632NXI-M8/X/64TB |
| IP Video Input | 32-ch, up to 32 MP resolution (NVR supports up to 8-ch 32 MP/24 MP IP video inputs) |
| Incoming Bandwidth | 320 Mbps |
| Outgoing Bandwidth | 400 Mbps |
| Decoding Capability | 2-ch@32 MP (30 fps)/2-ch@24 MP (30fps)/4-ch@16 MP (30fps)/8-ch@8 MP (30fps)/16-ch@4 MP (30fps)/32-ch@2 MP (30fps) |
| Decoding Format | H.265/H.265+/H.264/H.264+ |
| Recording Resolution | 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF |
| Synchronous Playback | 16-ch |
| HDMI 1 Output | 8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz |
| HDMI 2 Output | 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz (when HDMI1 output resolution is 8K, the maximum HDMI2 output resolution is 1080p) |
| VGA 1 Output | 1920 × 1080/60Hz |
| VGA 2 Output | 1920 × 1080/60Hz |
| Video Output Mode | HDMI1/VGA1 simultaneous output, HDMI2/VGA2 simultaneous output |
| CVBS Output | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
| Audio Output | 2-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 k Ω) |
| Engine | 2, each engine can run an intelligent algorithm, engine mode is adjustable |
| Remote Connection | 128 |
| API | ONVIF (profile S/G); SDK; ISAPI |
| Camera Access Protocol | ONVIF(Version 2.5), RTSP |
| Network Interface | 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| RAID Type | RAID0, RAID1, RAID5, RAID6, RAID10 |
| SATA | 8 SATA interfaces; 3.5-inch HDD |
| eSATA | 1 eSATA interface |
| Capacity | Up to 20 TB capacity for each HDD |
| Serial Interface | 1 RS-232, 1 RS-485 (full-duplex), 1 keyboard |
| USB Interface | Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 |
| Alarm In/Out | 16/9 |
| DC 12V | 12 VDC, 1 A power output |
| Power Supply | 100 to 240 VAC, 50 to 60 Hz |
| Consumption | ≤ 50 W (without HDD) |
| Working Temperature | -10 to 55° C (14 to 131° F) |
| Working Humidity | 10 to 90% |
| Dimension (W × D × H) | 445 × 465 × 93 mm ( 17.5"× 18.3" × 3.7") |
| Weight | ≤ 10 kg (without HDD, 28.7 lb.) |
