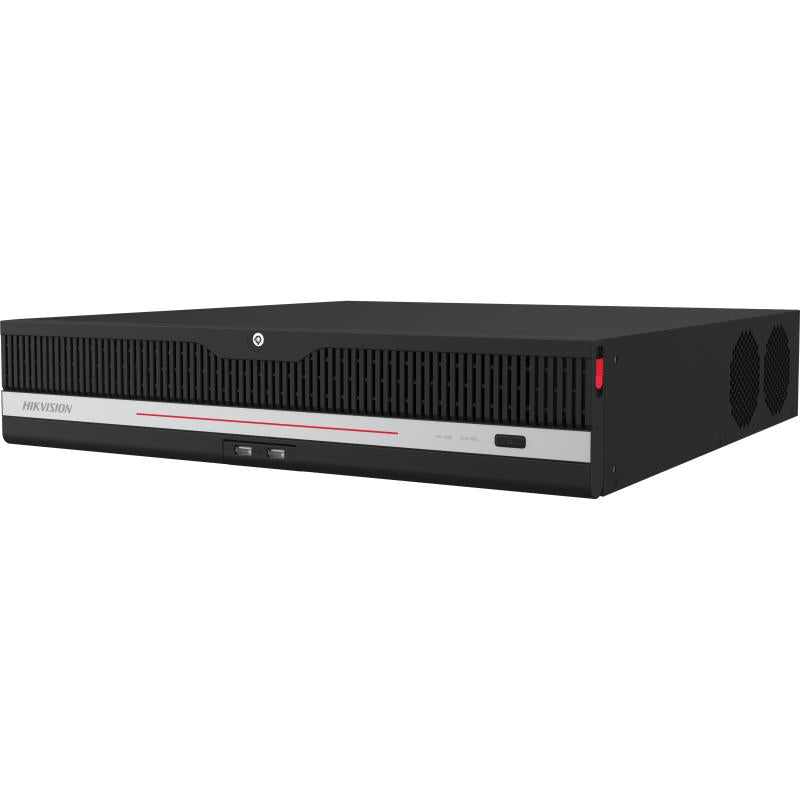

Hikvision iDS-9632NXI-M8/X/8TB-T 32-ch 2U 8K DeepinMind NVR, 8TB, 8 SATA Interfaces
Free Delivery
Save £560.84
About this product
The Hikvision iDS-9632NXI-M8/X/8TB-T is a 32-ch 2U 8K DeepinMind NVR for IP CCTV systems, supplied with 8TB of storage, with intelligent analytics based on a deep learning algorithm. Up to 32-ch IP cameras can be connected, and the NVR itself runs facial recognition, perimeter protection, video structuralization and AcuSearch.
Key features
- Up to 32-ch IP cameras, at up to 32 MP resolution (up to 8-ch 32 MP/24 MP IP video inputs)
- AI by NVR: facial recognition, perimeter protection, video structuralization and AcuSearch
- Perimeter protection by NVR: 24-ch 2 MP or 16-ch 4 MP or 8-ch 8 MP (Without Large Model)
- Up to 16-ch facial recognition for video stream, or up to 32-ch facial recognition for face picture
- 2 engines, each able to run an intelligent algorithm, with adjustable engine mode
- 8 SATA interfaces for 3.5-inch HDD, up to 20 TB capacity for each HDD, with RAID0, RAID1, RAID5, RAID6 and RAID10
- HDMI 1 output up to 8K (7680 × 4320)/30Hz; when HDMI1 is at 8K, HDMI2 is limited to a maximum of 1080p
- 320 Mbps incoming and 400 Mbps outgoing bandwidth
Frequently asked questions
How many cameras can the iDS-9632NXI-M8/X/8TB-T record, and at what resolution?
Up to 32-ch IP cameras can be connected, at up to 32 MP resolution. The NVR supports up to 8-ch 32 MP/24 MP IP video inputs.
How much storage does it have?
This version is supplied with 8TB of storage. The NVR has 8 SATA interfaces for 3.5-inch HDD, up to 20 TB capacity for each HDD, and supports RAID0, RAID1, RAID5, RAID6 and RAID10.
Which AI functions run on the NVR itself?
AI by NVR covers facial recognition, perimeter protection, video structuralization and AcuSearch. It has 2 engines, each able to run an intelligent algorithm, with adjustable engine mode.
How many channels of perimeter protection does it support?
By NVR: 24-ch 2 MP or 16-ch 4 MP or 8-ch 8 MP (Without Large Model), or 12-ch 2 MP or 8-ch 4 MP or 4-ch 8 MP (With Large Model). By camera: all channels (powered by Large Model).
What power does it need?
It runs on 100 to 240 VAC, 50 to 60 Hz, with consumption of ≤ 50 W (without HDD).
What monitor outputs does it have?
HDMI 1 outputs up to 8K (7680 × 4320)/30Hz, and there are HDMI 2, VGA 1 and VGA 2 outputs. When HDMI1 output resolution is 8K, the maximum HDMI2 output resolution is 1080p.
Technical Details
Specifications
Brand
Hikvision
Model
iDS-9632NXI-M8/X/8TB-T
Manufacturer Part Number (MPN)
iDS-9632NXI-M8/X/8TB-T
AI By NVR
Facial recognition, perimeter protection, video structuralization, AcuSearch
AI By Camera
Facial recognition, perimeter protection, video structuralization, AcuSearch, motion detection2.0, ANPR, people counting, VCA
Engine
2, each engine can run an intelligent algorithm, engine mode is adjustable
Perimeter Protection (By NVR)
24-ch 2 MP or 16-ch 4 MP or 8-ch 8 MP (Without Large Model); 12-ch 2 MP or 8-ch 4 MP or 4-ch 8 MP (With Large Model)
Structured Analysis
Up to 12-ch 2 MP (6-ch for each engine) or 8-ch 4 MP or 4-ch 8 MP
Facial Detection And Analytics Performance
Up to 16-ch 2 MP (8-ch for each engine) or 8-ch 4 MP or 4-ch 8 MP
IP Video Input
32-ch, Up to 32 MP resolution (NVR supports up to 8-ch 32 MP/24 MP IP video inputs)
Incoming Bandwidth
320 Mbps
Outgoing Bandwidth
400 Mbps
HDMI 1 Output
8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz
HDMI 2 Output
4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz (when HDMI1 output resolution is 8K, the maximum HDMI2 output resolution is 1080p)
VGA 1 Output
1920 × 1080/60Hz
VGA 2 Output
1920 × 1080/60Hz
Video Output Mode
HDMI1/VGA1 simultaneous output, HDMI2/VGA2 simultaneous output
Audio Output
2-ch, RCA (Linear, 1 KΩ)
Synchronous Playback
16-ch
Remote Connection
128
API
ONVIF (profile S/G); SDK; ISAPI
Network Interface
2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
RAID Type
RAID0, RAID1, RAID5, RAID6, RAID10
SATA
8 SATA interfaces; 3.5-inch HDD
ESATA
1 eSATA interface
Capacity
Up to 20 TB capacity for each HDD
Serial Interface
1 RS-232, 1 RS-485 (full-duplex), 1 keyboard
USB Interface
Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
Alarm In/Out
16/9
Power Supply
100 to 240 VAC, 50 to 60 Hz
Consumption
≤ 50 W (without HDD)
Working Temperature
-10 to 55° C (14 to 131° F)
Working Humidity
10 to 90%
Dimension (W × D × H)
445 × 465 × 93 mm ( 17.5"× 18.3" × 3.7")
Obtained Certification
CE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS
Specifications
| Brand | Hikvision |
|---|---|
| Model | iDS-9632NXI-M8/X/8TB-T |
| Manufacturer Part Number (MPN) | iDS-9632NXI-M8/X/8TB-T |
| AI By NVR | Facial recognition, perimeter protection, video structuralization, AcuSearch |
| AI By Camera | Facial recognition, perimeter protection, video structuralization, AcuSearch, motion detection2.0, ANPR, people counting, VCA |
| Engine | 2, each engine can run an intelligent algorithm, engine mode is adjustable |
| Perimeter Protection (By NVR) | 24-ch 2 MP or 16-ch 4 MP or 8-ch 8 MP (Without Large Model); 12-ch 2 MP or 8-ch 4 MP or 4-ch 8 MP (With Large Model) |
| Structured Analysis | Up to 12-ch 2 MP (6-ch for each engine) or 8-ch 4 MP or 4-ch 8 MP |
| Facial Detection And Analytics Performance | Up to 16-ch 2 MP (8-ch for each engine) or 8-ch 4 MP or 4-ch 8 MP |
| IP Video Input | 32-ch, Up to 32 MP resolution (NVR supports up to 8-ch 32 MP/24 MP IP video inputs) |
| Incoming Bandwidth | 320 Mbps |
| Outgoing Bandwidth | 400 Mbps |
| HDMI 1 Output | 8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz |
| HDMI 2 Output | 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz (when HDMI1 output resolution is 8K, the maximum HDMI2 output resolution is 1080p) |
| VGA 1 Output | 1920 × 1080/60Hz |
| VGA 2 Output | 1920 × 1080/60Hz |
| Video Output Mode | HDMI1/VGA1 simultaneous output, HDMI2/VGA2 simultaneous output |
| Audio Output | 2-ch, RCA (Linear, 1 KΩ) |
| Synchronous Playback | 16-ch |
| Remote Connection | 128 |
| API | ONVIF (profile S/G); SDK; ISAPI |
| Network Interface | 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| RAID Type | RAID0, RAID1, RAID5, RAID6, RAID10 |
| SATA | 8 SATA interfaces; 3.5-inch HDD |
| ESATA | 1 eSATA interface |
| Capacity | Up to 20 TB capacity for each HDD |
| Serial Interface | 1 RS-232, 1 RS-485 (full-duplex), 1 keyboard |
| USB Interface | Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 |
| Alarm In/Out | 16/9 |
| Power Supply | 100 to 240 VAC, 50 to 60 Hz |
| Consumption | ≤ 50 W (without HDD) |
| Working Temperature | -10 to 55° C (14 to 131° F) |
| Working Humidity | 10 to 90% |
| Dimension (W × D × H) | 445 × 465 × 93 mm ( 17.5"× 18.3" × 3.7") |
| Obtained Certification | CE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS |
