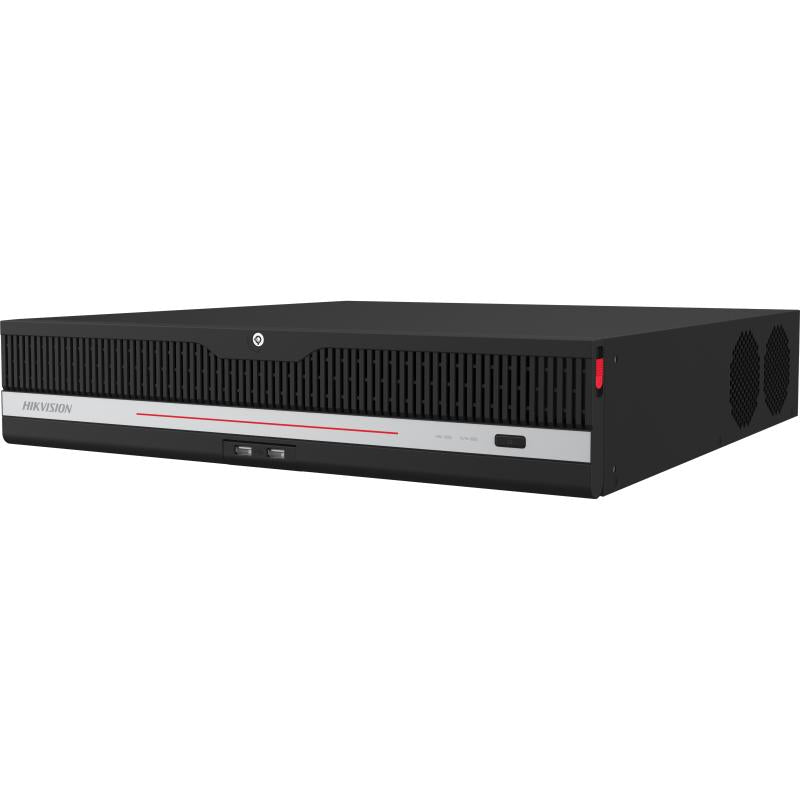

Hikvision iDS-9632NXI-M8/X/48TB-W 32-ch 8K DeepinMind NVR, 48TB, 8 SATA Interfaces
Free Delivery
Save £1,004.27
About this product
The Hikvision iDS-9632NXI-M8/X/48TB-W is a 32-ch 2U 8K DeepinMind NVR for IP CCTV systems, supplied with 48TB of storage. Up to 32-ch IP cameras can be connected (up to 8-ch at 32 MP/24 MP), and the recorder runs intelligent analytics based on a deep learning algorithm: facial recognition, perimeter protection, video structuralization and AcuSearch.
Key features
- 32-ch IP video input, up to 32 MP resolution; the NVR supports up to 8-ch 32 MP/24 MP IP video inputs
- AI by NVR: facial recognition, perimeter protection, video structuralization and AcuSearch
- Perimeter protection by NVR: 24-ch 2 MP or 16-ch 4 MP or 8-ch 8 MP (without Large Model)
- HDMI 1 output up to 8K (7680 × 4320)/30Hz
- 320 Mbps incoming bandwidth
- 8 SATA interfaces for 3.5-inch HDD, up to 20 TB capacity for each HDD
- RAID0, RAID1, RAID5, RAID6 and RAID10
- 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
Frequently asked questions
How many cameras can the iDS-9632NXI-M8/X/48TB-W record?
Up to 32-ch IP cameras can be connected, at up to 32 MP resolution. The NVR supports up to 8-ch 32 MP/24 MP IP video inputs.
How much storage is fitted, and how far can it be expanded?
This model is supplied with 48TB. It has 8 SATA interfaces for 3.5-inch HDD, with up to 20 TB capacity for each HDD, plus 1 eSATA interface.
Which RAID levels does it support?
RAID0, RAID1, RAID5, RAID6 and RAID10.
How many channels of perimeter protection can the NVR itself analyse?
By NVR: 24-ch 2 MP or 16-ch 4 MP or 8-ch 8 MP without Large Model, or 12-ch 2 MP or 8-ch 4 MP or 4-ch 8 MP with Large Model.
Does it support number plate recognition?
ANPR is supported by camera on all channels. Plate attributes include plate number, license plate color and license plate type.
What power does it need?
It runs from 100 to 240 VAC, 50 to 60 Hz, with consumption of ≤ 50 W (without HDD).
Technical Details
Specifications
Brand
Hikvision
Model
iDS-9632NXI-M8/X/48TB-W
Manufacturer Part Number (MPN)
iDS-9632NXI-M8/X/48TB-W
IP Video Input
32-ch, up to 32 MP resolution (NVR supports up to 8-ch 32 MP/24 MP IP video inputs)
Fitted storage
48TB
Video formats
H.265+/H.265/H.264+/H.264
AI By NVR
Facial recognition, perimeter protection, video structuralization, AcuSearch
AI By Camera
Facial recognition, perimeter protection, video structuralization, AcuSearch, motion detection2.0, ANPR, people counting, VCA
Engine
2, each engine can run an intelligent algorithm, engine mode is adjustable
AcuSearch By NVR
Up to 8-ch, up to 691,200 targets/day
Perimeter Protection By NVR
24-ch 2 MP or 16-ch 4 MP or 8-ch 8 MP (Without Large Model); 12-ch 2 MP or 8-ch 4 MP or 4-ch 8 MP (With Large Model)
Structured Analysis
Up to 12-ch 2 MP (6-ch for each engine) or 8-ch 4 MP or 4-ch 8 MP
Facial Detection And Analytics Performance
Up to 16-ch 2 MP (8-ch for each engine) or 8-ch 4 MP or 4-ch 8 MP
Face Picture Library
Up to 32 face picture libraries, up to 100,000 face pictures in list library, up to 10,000 face pictures in stranger library, up to 10,000,000 face pictures in face capture (each picture ≤ 4 MB, total capacity ≤ 20 GB)
ANPR By Camera
All channels
Incoming Bandwidth
320 Mbps
Outgoing Bandwidth
400 Mbps
HDMI 1 Output
8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz
HDMI 2 Output
4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz (max. 1080p when HDMI1 output resolution is 8K)
VGA 1 Output
1920 × 1080/60Hz
VGA 2 Output
1920 × 1080/60Hz
Video Output Mode
HDMI1/VGA1 simultaneous output, HDMI2/VGA2 simultaneous output
Audio Output
2-ch, RCA (Linear, 1 KΩ)
Two-Way Audio
1-ch, RCA (2.0 Vp-p, 1 k Ω)
Recording Resolution
32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF
Synchronous Playback
16-ch
Remote Connection
128
API
ONVIF (profile S/G); SDK; ISAPI
Network Interface
2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Camera Access Protocol
ONVIF(Version 2.5), RTSP
RAID Type
RAID0, RAID1, RAID5, RAID6, RAID10
SATA
8 SATA interfaces; 3.5-inch HDD
eSATA
1 eSATA interface
Capacity
Up to 20 TB capacity for each HDD
Serial Interface
1 RS-232, 1 RS-485 (full-duplex), 1 keyboard
USB Interface
Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
Alarm In/Out
16/9
Ctrl 12V
Controllable 12 VDC, 1 A power output for external alarm device (controlled by alarm output 9)
Power Supply
100 to 240 VAC, 50 to 60 Hz
Consumption
≤ 50 W (without HDD)
Working Temperature
-10 to 55° C (14 to 131° F)
Working Humidity
10 to 90%
Dimension (W × D × H)
445 × 465 × 93 mm ( 17.5"× 18.3" × 3.7")
Weight
≤ 10 kg (without HDD, 28.7 lb.)
Obtained Certification
CE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS
Specifications
| Brand | Hikvision |
|---|---|
| Model | iDS-9632NXI-M8/X/48TB-W |
| Manufacturer Part Number (MPN) | iDS-9632NXI-M8/X/48TB-W |
| IP Video Input | 32-ch, up to 32 MP resolution (NVR supports up to 8-ch 32 MP/24 MP IP video inputs) |
| Fitted storage | 48TB |
| Video formats | H.265+/H.265/H.264+/H.264 |
| AI By NVR | Facial recognition, perimeter protection, video structuralization, AcuSearch |
| AI By Camera | Facial recognition, perimeter protection, video structuralization, AcuSearch, motion detection2.0, ANPR, people counting, VCA |
| Engine | 2, each engine can run an intelligent algorithm, engine mode is adjustable |
| AcuSearch By NVR | Up to 8-ch, up to 691,200 targets/day |
| Perimeter Protection By NVR | 24-ch 2 MP or 16-ch 4 MP or 8-ch 8 MP (Without Large Model); 12-ch 2 MP or 8-ch 4 MP or 4-ch 8 MP (With Large Model) |
| Structured Analysis | Up to 12-ch 2 MP (6-ch for each engine) or 8-ch 4 MP or 4-ch 8 MP |
| Facial Detection And Analytics Performance | Up to 16-ch 2 MP (8-ch for each engine) or 8-ch 4 MP or 4-ch 8 MP |
| Face Picture Library | Up to 32 face picture libraries, up to 100,000 face pictures in list library, up to 10,000 face pictures in stranger library, up to 10,000,000 face pictures in face capture (each picture ≤ 4 MB, total capacity ≤ 20 GB) |
| ANPR By Camera | All channels |
| Incoming Bandwidth | 320 Mbps |
| Outgoing Bandwidth | 400 Mbps |
| HDMI 1 Output | 8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz |
| HDMI 2 Output | 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz (max. 1080p when HDMI1 output resolution is 8K) |
| VGA 1 Output | 1920 × 1080/60Hz |
| VGA 2 Output | 1920 × 1080/60Hz |
| Video Output Mode | HDMI1/VGA1 simultaneous output, HDMI2/VGA2 simultaneous output |
| Audio Output | 2-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 k Ω) |
| Recording Resolution | 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF |
| Synchronous Playback | 16-ch |
| Remote Connection | 128 |
| API | ONVIF (profile S/G); SDK; ISAPI |
| Network Interface | 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| Camera Access Protocol | ONVIF(Version 2.5), RTSP |
| RAID Type | RAID0, RAID1, RAID5, RAID6, RAID10 |
| SATA | 8 SATA interfaces; 3.5-inch HDD |
| eSATA | 1 eSATA interface |
| Capacity | Up to 20 TB capacity for each HDD |
| Serial Interface | 1 RS-232, 1 RS-485 (full-duplex), 1 keyboard |
| USB Interface | Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 |
| Alarm In/Out | 16/9 |
| Ctrl 12V | Controllable 12 VDC, 1 A power output for external alarm device (controlled by alarm output 9) |
| Power Supply | 100 to 240 VAC, 50 to 60 Hz |
| Consumption | ≤ 50 W (without HDD) |
| Working Temperature | -10 to 55° C (14 to 131° F) |
| Working Humidity | 10 to 90% |
| Dimension (W × D × H) | 445 × 465 × 93 mm ( 17.5"× 18.3" × 3.7") |
| Weight | ≤ 10 kg (without HDD, 28.7 lb.) |
| Obtained Certification | CE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS |
