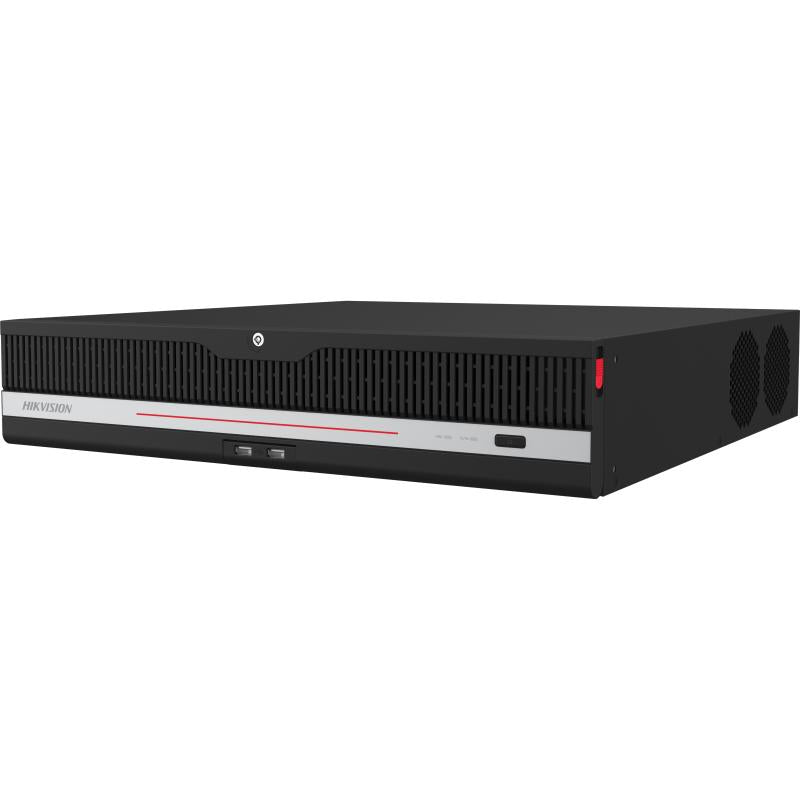

Hikvision iDS-9632NXI-M8/X/16TB 32-Channel 8K DeepinMind Network Video Recorder, 16TB, 8 SATA Interfaces
Free Delivery
About this product
The Hikvision iDS-9632NXI-M8/X/16TB is a 32-ch 2U 8K DeepinMind NVR for IP CCTV systems, supplied with 16TB of storage. It connects up to 32-ch IP cameras, runs intelligent analytics based on a deep learning algorithm and outputs up to 8K (7680 × 4320)/30Hz on HDMI 1.
Key features
- 32-ch IP video input at up to 32 MP resolution (the NVR supports up to 8-ch 32 MP/24 MP IP video inputs)
- Intelligent analytics based on deep learning algorithm
- 2 engines; each engine can run an intelligent algorithm, and engine mode is adjustable
- Up to 16-ch facial recognition for video stream, or up to 32-ch facial recognition for face picture
- Up to 24-ch perimeter protection (24-ch 2 MP without Large Model) and up to 12-ch video structuralization
- HDMI 1 output up to 8K (7680 × 4320)/30Hz; when HDMI1 output resolution is 8K, the maximum HDMI2 output resolution is 1080p
- 8 SATA interfaces for 3.5-inch HDD, up to 20 TB capacity for each HDD, plus 1 eSATA interface
- RAID0, RAID1, RAID5, RAID6, RAID10 support
Frequently asked questions
How much storage does the iDS-9632NXI-M8/X/16TB have?
It is supplied with 16TB of storage. The recorder has 8 SATA interfaces for 3.5-inch HDD, up to 20 TB capacity for each HDD, plus 1 eSATA interface.
How many cameras can it record, and at what resolution?
Up to 32-ch IP cameras can be connected, at up to 32 MP resolution; the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.
What AI functions does the NVR itself run?
AI by NVR covers facial recognition, perimeter protection, video structuralization and AcuSearch. The NVR has 2 engines; each engine can run an intelligent algorithm, and engine mode is adjustable.
What monitor outputs does it have?
HDMI 1 up to 8K (7680 × 4320)/30Hz, HDMI 2 up to 4K (3840 × 2160)/60Hz, VGA 1 and VGA 2 at 1920 × 1080/60Hz, and a 1-ch BNC CVBS output. When HDMI1 output resolution is 8K, the maximum HDMI2 output resolution is 1080p.
Does it support ANPR?
ANPR runs by camera on all channels, reading plate number, licence plate colour and type alongside vehicle brand, colour and type.
What power does it need?
100 to 240 VAC, 50 to 60 Hz, with consumption of ≤ 50 W (without HDD).
Technical Details
Specifications
Brand
Hikvision
Model
iDS-9632NXI-M8/X/16TB
Manufacturer Part Number (MPN)
iDS-9632NXI-M8/X/16TB
Fitted storage
16TB
IP Video Input
32-ch, up to 32 MP resolution (NVR supports up to 8-ch 32 MP/24 MP IP video inputs)
Incoming Bandwidth
320 Mbps
Outgoing Bandwidth
400 Mbps
Video formats
H.265+/H.265/H.264+/H.264
Recording Resolution
32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF
Engine
2, each engine can run an intelligent algorithm, engine mode is adjustable
HDMI 1 Output
8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz
HDMI 2 Output
4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz (when HDMI1 output resolution is 8K, the maximum HDMI2 output resolution is 1080p)
VGA 1 Output
1920 × 1080/60Hz
VGA 2 Output
1920 × 1080/60Hz
Video Output Mode
HDMI1/VGA1 simultaneous output, HDMI2/VGA2 simultaneous output
CVBS Output
1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Audio Output
2-ch, RCA (Linear, 1 KΩ)
Two-Way Audio
1-ch, RCA (2.0 Vp-p, 1 k Ω)
Synchronous Playback
16-ch
Remote Connection
128
Network Interface
2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Camera Access Protocol
ONVIF(Version 2.5), RTSP
API
ONVIF (profile S/G); SDK; ISAPI
RAID Type
RAID0, RAID1, RAID5, RAID6, RAID10
SATA
8 SATA interfaces; 3.5-inch HDD
eSATA
1 eSATA interface
Capacity
Up to 20 TB capacity for each HDD
AI By NVR
Facial recognition, perimeter protection, video structuralization, AcuSearch
Ctrl 12V
Controllable 12 VDC, 1 A power output for external alarm device; the power will be turned on when the alarm output is triggered (controlled by alarm output 9)
DC 12V
12 VDC, 1 A power output
Serial Interface
1 RS-232, 1 RS-485 (full-duplex), 1 keyboard
USB Interface
Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
Alarm In/Out
16/9
Power Supply
100 to 240 VAC, 50 to 60 Hz
Consumption
≤ 50 W (without HDD)
Working Temperature
-10 to 55° C (14 to 131° F)
Working Humidity
10 to 90%
Dimension (W × D × H)
445 × 465 × 93 mm
Weight
≤ 10 kg (without HDD, 28.7 lb.)
Obtained Certification
CE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS
Specifications
| Brand | Hikvision |
|---|---|
| Model | iDS-9632NXI-M8/X/16TB |
| Manufacturer Part Number (MPN) | iDS-9632NXI-M8/X/16TB |
| Fitted storage | 16TB |
| IP Video Input | 32-ch, up to 32 MP resolution (NVR supports up to 8-ch 32 MP/24 MP IP video inputs) |
| Incoming Bandwidth | 320 Mbps |
| Outgoing Bandwidth | 400 Mbps |
| Video formats | H.265+/H.265/H.264+/H.264 |
| Recording Resolution | 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF |
| Engine | 2, each engine can run an intelligent algorithm, engine mode is adjustable |
| HDMI 1 Output | 8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz |
| HDMI 2 Output | 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz (when HDMI1 output resolution is 8K, the maximum HDMI2 output resolution is 1080p) |
| VGA 1 Output | 1920 × 1080/60Hz |
| VGA 2 Output | 1920 × 1080/60Hz |
| Video Output Mode | HDMI1/VGA1 simultaneous output, HDMI2/VGA2 simultaneous output |
| CVBS Output | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
| Audio Output | 2-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 k Ω) |
| Synchronous Playback | 16-ch |
| Remote Connection | 128 |
| Network Interface | 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| Camera Access Protocol | ONVIF(Version 2.5), RTSP |
| API | ONVIF (profile S/G); SDK; ISAPI |
| RAID Type | RAID0, RAID1, RAID5, RAID6, RAID10 |
| SATA | 8 SATA interfaces; 3.5-inch HDD |
| eSATA | 1 eSATA interface |
| Capacity | Up to 20 TB capacity for each HDD |
| AI By NVR | Facial recognition, perimeter protection, video structuralization, AcuSearch |
| Ctrl 12V | Controllable 12 VDC, 1 A power output for external alarm device; the power will be turned on when the alarm output is triggered (controlled by alarm output 9) |
| DC 12V | 12 VDC, 1 A power output |
| Serial Interface | 1 RS-232, 1 RS-485 (full-duplex), 1 keyboard |
| USB Interface | Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 |
| Alarm In/Out | 16/9 |
| Power Supply | 100 to 240 VAC, 50 to 60 Hz |
| Consumption | ≤ 50 W (without HDD) |
| Working Temperature | -10 to 55° C (14 to 131° F) |
| Working Humidity | 10 to 90% |
| Dimension (W × D × H) | 445 × 465 × 93 mm |
| Weight | ≤ 10 kg (without HDD, 28.7 lb.) |
| Obtained Certification | CE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS |
