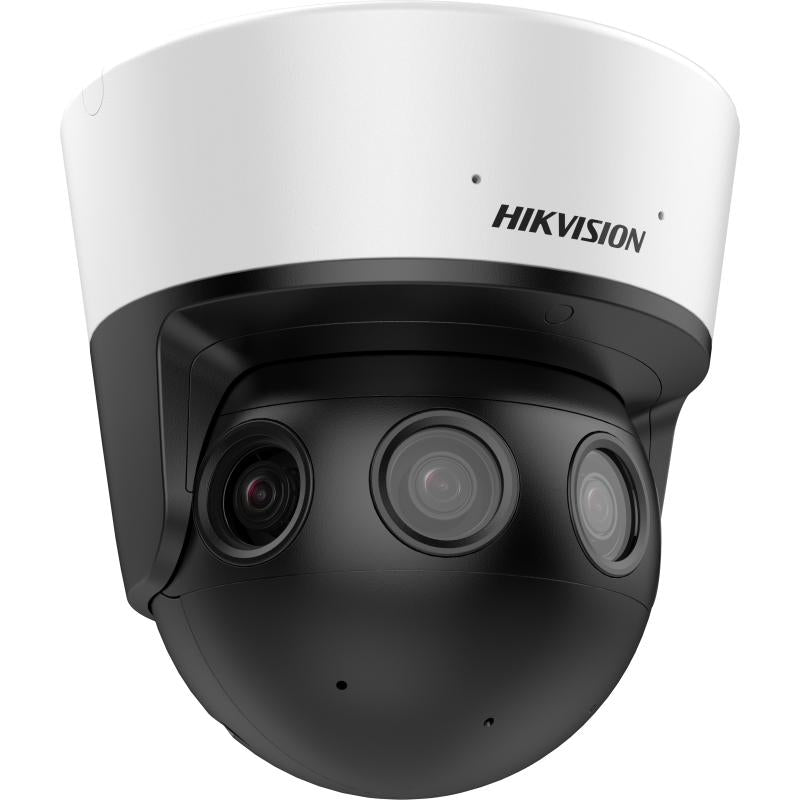

Hikvision DS-2CD6984G1-IHSUY/NFC(2.8MM) 32 MP 180° PanoVu Network Camera, Four 2.8mm Lenses, Up to 20m IR
About this product
The Hikvision DS-2CD6984G1-IHSUY/NFC(2.8MM) is a 32 MP 180° PanoVu network camera for IP CCTV systems, with four 2.8 mm fixed focal lenses and a maximum resolution of 8160 × 3616. Its 180° splicing image includes the full panoramic view covered by the camera, and it is water and dust resistant (IP67), vandal proof (IK10) and fitted with a built-in heater for ultra-low temperature start up to -40 °C.
Key features
- 32 MP 180° splicing image that includes the full panoramic view covered by the camera
- Four 2.8 mm fixed focal lenses; panorama image horizontal FOV 185°, vertical FOV 100°
- Maximum resolution 8160 × 3616, 25 fps in panorama mode at 50 Hz
- DarkFighter technology for colour images in dimly lit environments, plus four IR LEDs reaching up to 20 m
- Remote motorized pan and tilt for easy angle adjustment (pan 0° to 340°, tilt 0° to 90°)
- Built-in heater, ultra-low temperature start up to -40 °C
- 1 FC fiber optical interface (SFP module, single mode, 20 km transmission distance) plus 1 RJ45 10 M/100 M/1000 M Ethernet port
- Water and dust resistant (IP67) and vandal proof (IK10)
Frequently asked questions
How wide a view does the DS-2CD6984G1-IHSUY/NFC(2.8MM) cover?
It produces a 180° splicing image that includes the full panoramic view covered by the camera. The panorama image has a horizontal FOV of 185° and a vertical FOV of 100°.
How is the camera powered?
From 12 VDC ± 20% (max. 26.4 W), 24 VAC ± 20% (max. 24 W) or PoE to IEEE 802.3at, Class 4 (max. 25 W).
How does it perform at night?
DarkFighter technology captures high quality color images even in dimly lit environments, and four IR LEDs give a supplement light range of up to 20 m.
Can it work in very cold conditions?
It has a built-in heater with ultra-low temperature start up to -40 °C, and its startup and operating conditions are -40 °C to 60 °C, humidity 95% or less (non-condensing).
Does it have a fibre connection?
Yes. It has 1 FC fiber optical interface with an SFP module, single mode, 20 km transmission distance, alongside 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port.
What local storage does it support?
A built-in memory card slot supporting microSD/microSDHC/microSDXC cards up to 1024 GB. It also supports NAS (NFS, SMB/CIFS).
Specifications
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-2CD6984G1-IHSUY/NFC(2.8MM) |
| Manufacturer Part Number (MPN) | DS-2CD6984G1-IHSUY/NFC(2.8MM) |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Max. Resolution | 8160 × 3616 |
| Min. Illumination | Color: 0.002 Lux @ (F1.0, AGC ON), B/W: 0.0005 Lux @ (F1.0, AGC ON) |
| Angle Adjustment | Pan: 0° to 340°, tilt: 0° to 90° |
| Lens Type | Fixed focal lens, 2.8 mm, four lenses |
| Single Lens FOV | Horizontal FOV 108.8°, vertical FOV 56.4°, diagonal FOV 134.3° |
| Panorama Image FOV | Horizontal FOV 185°, vertical FOV 100° |
| Lens Mount | M16 |
| Aperture | F1.0 |
| DORI | 2.8 mm: D: 89.2 m, O: 35.4 m, R: 17.8 m, I: 8.9 m |
| Supplement Light Type | IR, four IR LEDs |
| Supplement Light Range | Up to 20 m |
| IR Wavelength | 850 nm |
| Main Stream (panorama mode, 50 Hz) | 25 fps (8160 × 3616) |
| Video Compression (main stream) | H.265+/H.265/H.264+/H.264 |
| Video Bit Rate | 32 Kbps to 64 Mbps |
| WDR | Digital WDR |
| Image Enhancement | BLC, HLC, 3D DNR, Distortion Correction, Defog |
| Simultaneous Live View | Up to 4 channels |
| API | ONVIF (Profile S, Profile G), ISAPI, SDK, ISUP |
| Client | iVMS-4200, Hik-Connect |
| Ethernet Interface | 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port |
| Fiber Optical | 1 FC fiber optical interface, SFP module, single mode, 20 km transmission distance, 1310 nm (TX) and 1550 nm (RX), 1250 Mbps transmission rate |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1024 GB |
| Network Storage | NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) |
| Built-In Microphone | 2 built-in microphones |
| Alarm | 2 inputs, 2 outputs (max. 12 VDC, 1 A) |
| RS-485 | 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) |
| Power Output | 12 VDC, max. 150 mA |
| Smart Event | Line crossing detection, intrusion detection, region entrance detection, region exiting detection |
| People Density | Only panorama mode supports |
| Power | 12 VDC ± 20%, 2.2 A, max. 26.4 W; 24 VAC ± 20%, 1.5 A, max. 24 W, three-core terminal block; PoE: IEEE 802.3at, Class 4, max. 25 W |
| Material | Aluminum alloy & plastic |
| Dimension | Ø214.6 mm × 213 mm (Ø8.45" × 8.39") |
| Weight | Approx. 4.2 kg (9.25 lb.) |
| Startup And Operating Conditions | -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Heater | Built-in heater |
