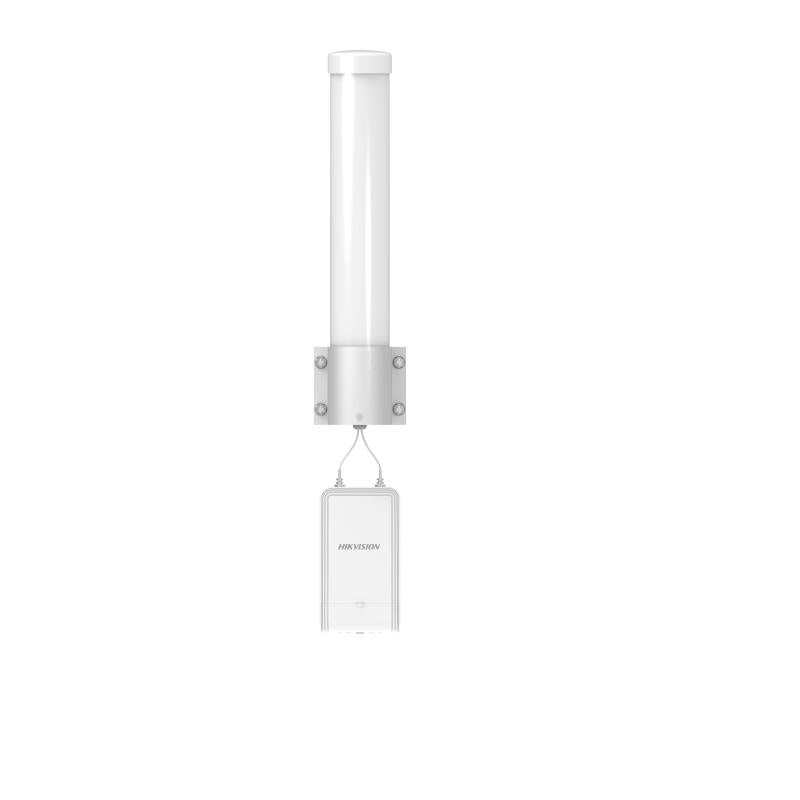

Hikvision DS-3WF0FA-5AC/O 360° Wireless AP Bridge, 5GHz, Up to 1km
About this product
The Hikvision DS-3WF0FA-5AC/O is a 5 GHz 360° wireless AP bridge for outdoor pole mounting, giving up to 1 km wireless transmission distance over 802.11ac. It is rated for PTP throughput of 160 Mbps at 1 KM (AC80), or PTMP (1 to 8) throughput of 110 Mbps at 1 KM (AC80), and is powered by 48V PoE or PoE (802.3af).
Key features
- Up to 1 km wireless transmission distance
- Antenna horizontal beamwidth of 360° [3 dB], vertical 8°
- Throughput: PTP 160 Mbps/1 KM (AC80); PTMP (1 to 8) 110 Mbps/1 KM (AC80)
- Max. transmission rate of air interface ≤ 867 Mbps, IEEE 802.11/a/n/ac
- 48V PoE or PoE (802.3af) power in on LAN1; power consumption max. 4.5 W
- 2 × 1000 Mbps RJ45 ports
- IP55 ingress protection, working temperature -30 °C to 60 °C
- One-click activation and remote management via Hik-Partner Pro
Frequently asked questions
How far can the DS-3WF0FA-5AC/O transmit?
It gives up to 1 km wireless transmission distance, with rated PTP throughput of 160 Mbps at 1 KM (AC80).
Is 867 Mbps the real-world throughput?
No. 867 Mbps is the max. transmission rate of the air interface (≤ 867 Mbps). The rated throughput is PTP 160 Mbps/1 KM (AC80), or PTMP (1 to 8) 110 Mbps/1 KM (AC80).
How is the bridge powered?
It takes 48V PoE or PoE (802.3af), 36–57V, 0.13A, into LAN1, and a power supply adaptor and power cord are in the packing list. Power consumption is max. 4.5 W.
Can it be mounted outdoors?
Yes. The installation mode is pole mounting, with IP55 ingress protection and a working temperature of -30 °C to 60 °C.
How is it set up and managed?
It is managed via HCP, Web, iVMS-4200 or HPP, and supports one-click activation and remote management via Hik-Partner Pro, including bridge alignment and spectrum scanning.
What is in the box?
Wireless Bridge × 1, Power Supply Adaptor × 1, Power Cord × 1, Regulatory Compliance and Safety Information × 1, Quick Start Guide ×1, Screw Pack × 1, Binding Tape × 2 and Antenna ×1.
Specifications
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-3WF0FA-5AC/O |
| Manufacturer Part Number (MPN) | DS-3WF0FA-5AC/O |
| Wireless Standard | IEEE 802.11/a/n/ac |
| Max. Transmission Rate Of Air Interface | ≤ 867 Mbps |
| Throughput Rate | PTP: 160 Mbps/0.5 KM(AC80), 160 Mbps/1 KM(AC80), PTMP(1 to 8): 110 Mbps/1 KM(AC80) |
| Transmission distance | Up to 1 km |
| Working Frequency Band | 5150 MHz ~ 5250 MHz, 5250 MHz~ 5350 MHz, 5470 MHz~ 5725 MHz, 5725 MHz~ 5825 MHz (channels may vary with local regulations) |
| Antenna Angle | (H) Beamwidth [3 dB] 360°, (V) Beamwidth [3 dB] 8° |
| Transmitting Power | 22 dBm @11ac MCS0 (may vary with local regulations) |
| Receiving Sensitivity | -84±2dBm@AC80-MCS0 |
| Channel Width | 20/40/80 MHz |
| Channel Selection | Auto/manual selection |
| Security Mode | WPA2-PSK |
| Network Interface | 2 × 1000 Mbps RJ45 ports |
| LED Indicator | Power indicator, LAN indicator, Signal intensity indicator |
| Reset | Hardware resetting button |
| Power Supply | 48V PoE or PoE(802.3af) 36～57V 0.13A |
| PoE Port | LAN1 802.3af PoE IN |
| PoE Distance | 100m |
| Power Consumption | 2.65 W for typical (1-ch 2MP IPC), Max. 4.5 W |
| Management Method | HCP, Web, iVMS-4200, HPP |
| Upgrade | Web, iVMS-4200, HCP, HPP |
| Installation Mode | Pole Mounting |
| Ingress Protection | IP55 |
| Working Temperature | -30 °C to 60 °C (-22 °F to 140 °F) |
| Working Humidity | 5% to 95% (no condensation) |
| Product Dimensions (W × H × D) | 103.6 mm × 58.3 mm × 198.4 mm (4.1'' × 2.3'' × 7.8'') |
| Net Weight | 0.3 kg (0.66 lb) |
| Packing List | Wireless Bridge × 1, Power Supply Adaptor × 1, Power Cord × 1, Regulatory Compliance and Safety Information × 1, Quick Start Guide ×1, Screw Pack × 1, Binding Tape × 2, Antenna ×1 |
