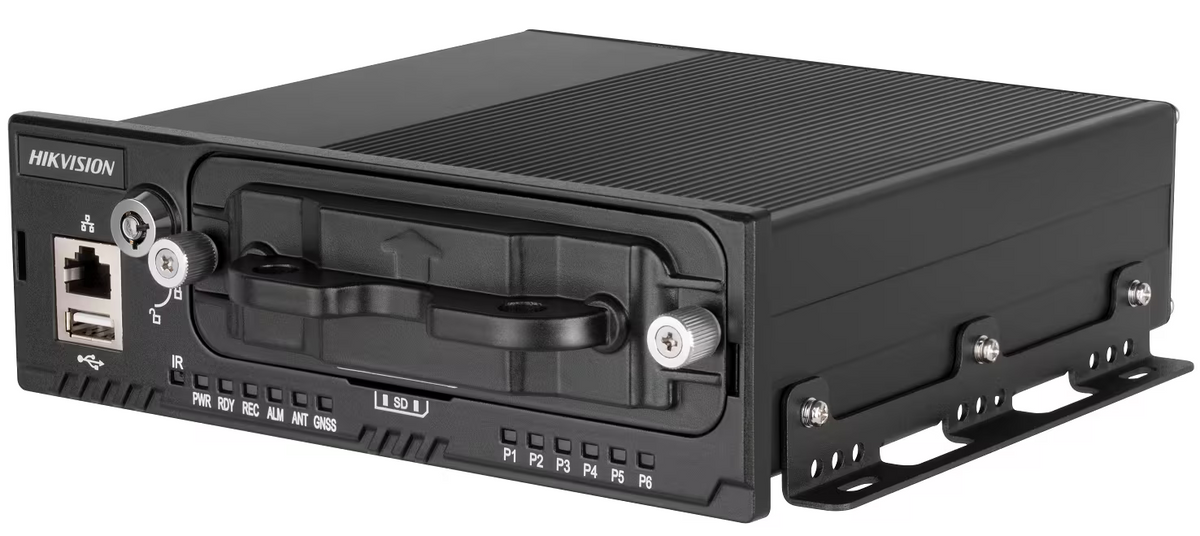

Hikvision AE-MN5043(1T/SSD)(RJ45) 4-Channel Mobile NVR, H.264/H.265, Built-in GPS
Free Delivery
Save £30.89
About this product
The Hikvision AE-MN5043(1T/SSD)(RJ45) is a 4-ch H.264/H.265 mobile NVR for vehicles, connecting 4-ch IP cameras via PoE interfaces. It takes pluggable 2 × 2.5 inch HDD/SSD (SSD up to 4 TB, HDD up to 2TB) and has a built-in GPS module that records location information in the video stream.
Key features
- 4-ch IP cameras connectable via PoE interfaces
- Up to 5MP per IP camera with H.264/H.265 compression (supported since V5.6.4)
- Pluggable 2 × 2.5 inch HDD/SSD: SSD up to 4 TB, HDD up to 2TB
- Built-in GPS module with GPS & GLONASS positioning
- Wide-range power input (+9 VDC to +36 VDC)
- Built-in super-capacitor and power-off protection against sudden power outage
- Die-cast aluminium chassis with no fan design
Frequently asked questions
How many cameras does the AE-MN5043(1T/SSD)(RJ45) support?
4-ch IP cameras, connected via PoE interfaces.
What drives does it take?
Pluggable 2 × 2.5 inch HDD/SSD: SSD up to 4 TB, HDD up to 2TB.
What power input does it need?
+9 to +36 VDC.
Does it have GPS?
Yes: a built-in GPS module, with GPS & GLONASS positioning and 1 ×FAKRA antenna.
What happens if the vehicle power is cut suddenly?
A built-in super-capacitor prevents the mobile NVR from damage caused by sudden power outage, and power-off protection prevents key data loss.
Technical Details
Specifications
Brand
Hikvision
Model
AE-MN5043(1T/SSD)(RJ45)
Manufacturer Part Number (MPN)
AE-MN5043(1T/SSD)(RJ45)
IP Camera
4-ch connected via PoE interfaces
Camera resolution
Up to 5MP resolution of H.264/H.265 compression for each IP camera.( *Support this function since V5.6.4 )
Two-Way Audio
1, integrated in EXT.DEV interface
Video Output
Main output: 1, integrated in EXT.DEV interface. VGA: 1
Video Compression
H.265/H.264
Audio Compression
G.711a/G.711u/G.722.1/G.726
Dual Stream
Supported
Frame Rate
PAL: 1 to 25 fps; NTSC: 1 to 30 fps
HDD/SSD
Pluggable 2 × 2.5 inch HDD/SSD, SSD up to 4 TB,HDD up to 2TB
3G/4G Dialing
1 × 4G card slot, 1 × FAKRA antenna
Network Interface
Front panel :1 ×10M/100M RJ45; Rear panel: 1 × 10M/100M 6-pin aviation connector
Alarm Input
4 high/low level signal inputs, 1 pulse signal input, 1 button input
Alarm Output
2 relay signal outputs
Serial Port
1 × RS-232(harness is optional), 1 × RS-422 (integrated in EXT.DEV interface)
GNSS
GPS (Global Positioning System) & GLONASS (Global Navigation Satellite System), 1 ×FAKRA antenna
G-Sensor
Built-in
Power Supply
+9 to +36 VDC
Power Consumption
Standby: ≤ 0.5 W; Full load: ≤ 55 W
Product Dimension
206 mm × 225.4 mm × 60.1 mm
Weight (Without Storage Media)
1.66 kg
Operating Temperature
-25 °C to +70 °C (-13 °F to +158°F)
Operating Humidity
10% to 95% (non-condensing)
Operation Method
Mouse, IR remote control, Web control, and touchscreen
Certification
CE/FCC/Emark/EN50155/CB/EN45545/ROHS 2.0/ISO-7637-2
Firewall
Software-based firewall supported.
Specifications
| Brand | Hikvision |
|---|---|
| Model | AE-MN5043(1T/SSD)(RJ45) |
| Manufacturer Part Number (MPN) | AE-MN5043(1T/SSD)(RJ45) |
| IP Camera | 4-ch connected via PoE interfaces |
| Camera resolution | Up to 5MP resolution of H.264/H.265 compression for each IP camera.( *Support this function since V5.6.4 ) |
| Two-Way Audio | 1, integrated in EXT.DEV interface |
| Video Output | Main output: 1, integrated in EXT.DEV interface. VGA: 1 |
| Video Compression | H.265/H.264 |
| Audio Compression | G.711a/G.711u/G.722.1/G.726 |
| Dual Stream | Supported |
| Frame Rate | PAL: 1 to 25 fps; NTSC: 1 to 30 fps |
| HDD/SSD | Pluggable 2 × 2.5 inch HDD/SSD, SSD up to 4 TB,HDD up to 2TB |
| 3G/4G Dialing | 1 × 4G card slot, 1 × FAKRA antenna |
| Network Interface | Front panel :1 ×10M/100M RJ45; Rear panel: 1 × 10M/100M 6-pin aviation connector |
| Alarm Input | 4 high/low level signal inputs, 1 pulse signal input, 1 button input |
| Alarm Output | 2 relay signal outputs |
| Serial Port | 1 × RS-232(harness is optional), 1 × RS-422 (integrated in EXT.DEV interface) |
| GNSS | GPS (Global Positioning System) & GLONASS (Global Navigation Satellite System), 1 ×FAKRA antenna |
| G-Sensor | Built-in |
| Power Supply | +9 to +36 VDC |
| Power Consumption | Standby: ≤ 0.5 W; Full load: ≤ 55 W |
| Product Dimension | 206 mm × 225.4 mm × 60.1 mm |
| Weight (Without Storage Media) | 1.66 kg |
| Operating Temperature | -25 °C to +70 °C (-13 °F to +158°F) |
| Operating Humidity | 10% to 95% (non-condensing) |
| Operation Method | Mouse, IR remote control, Web control, and touchscreen |
| Certification | CE/FCC/Emark/EN50155/CB/EN45545/ROHS 2.0/ISO-7637-2 |
| Firewall | Software-based firewall supported. |
